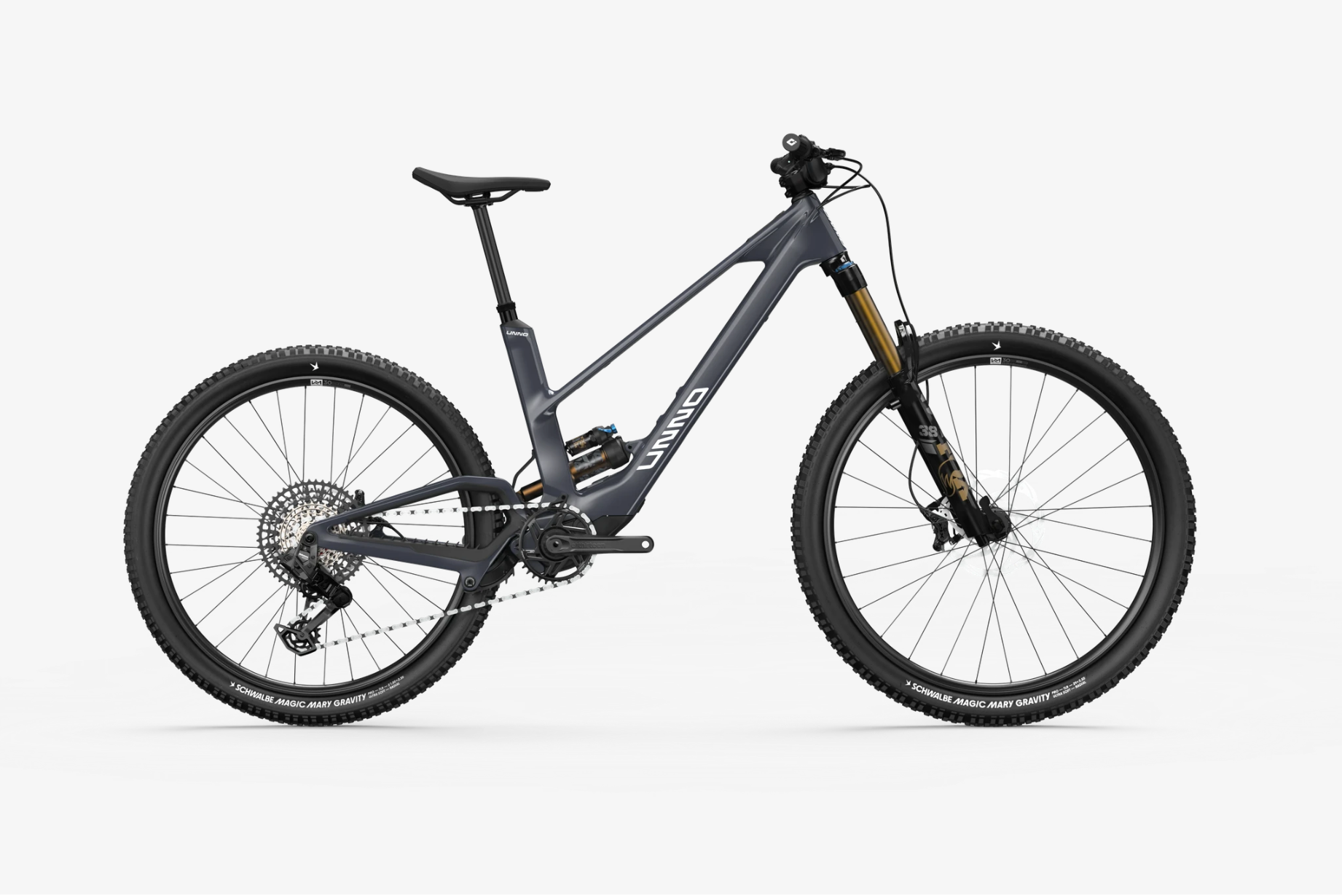

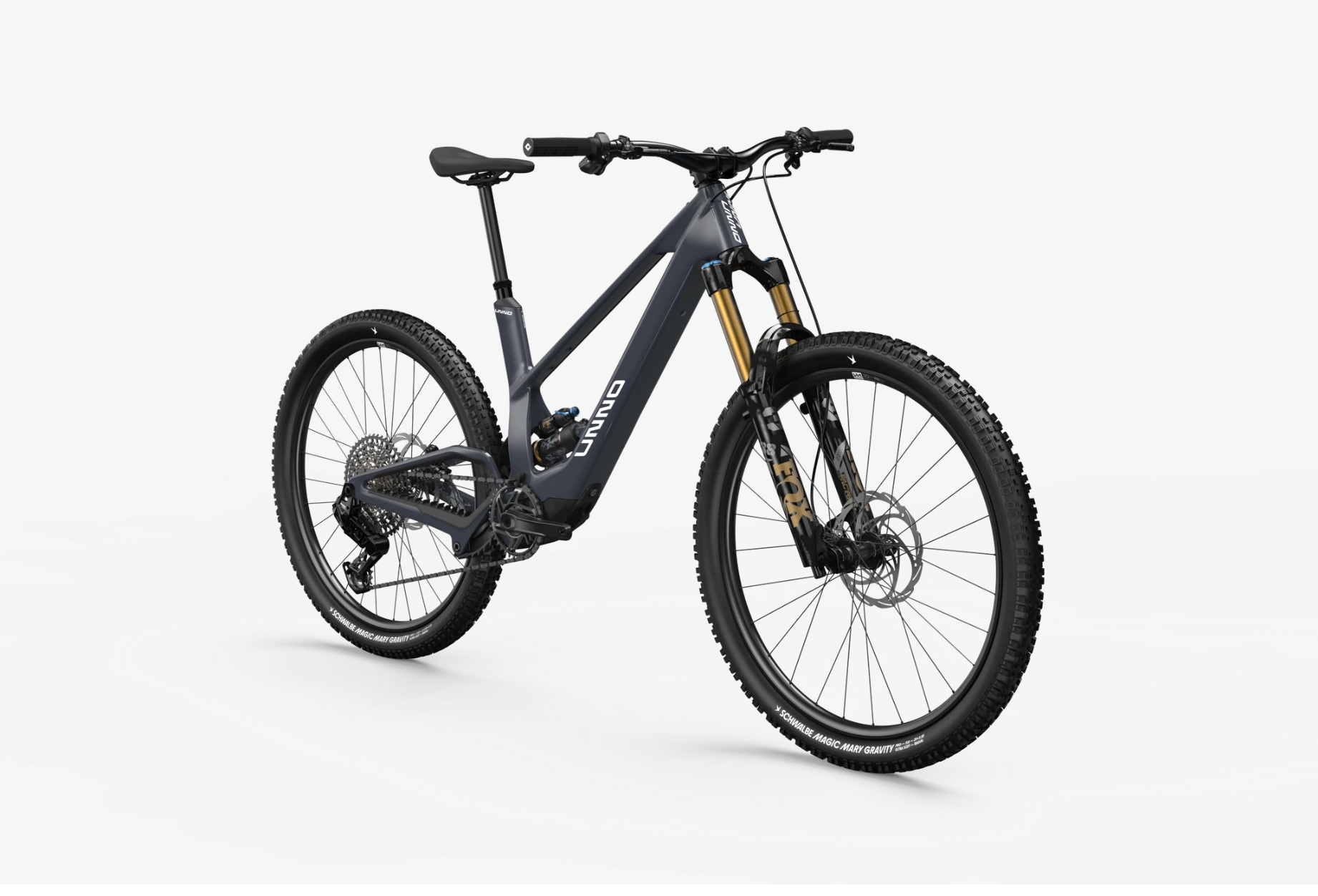

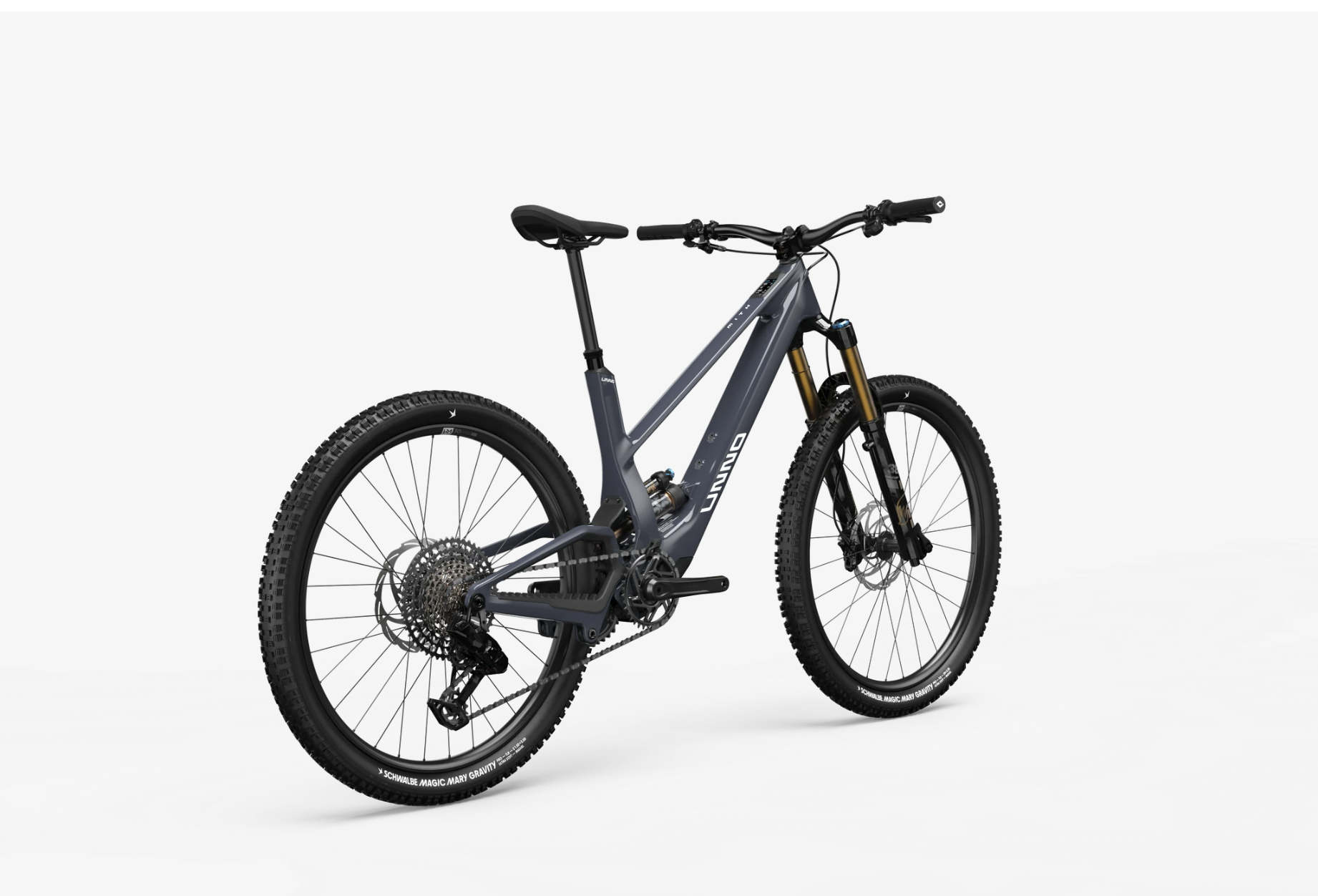

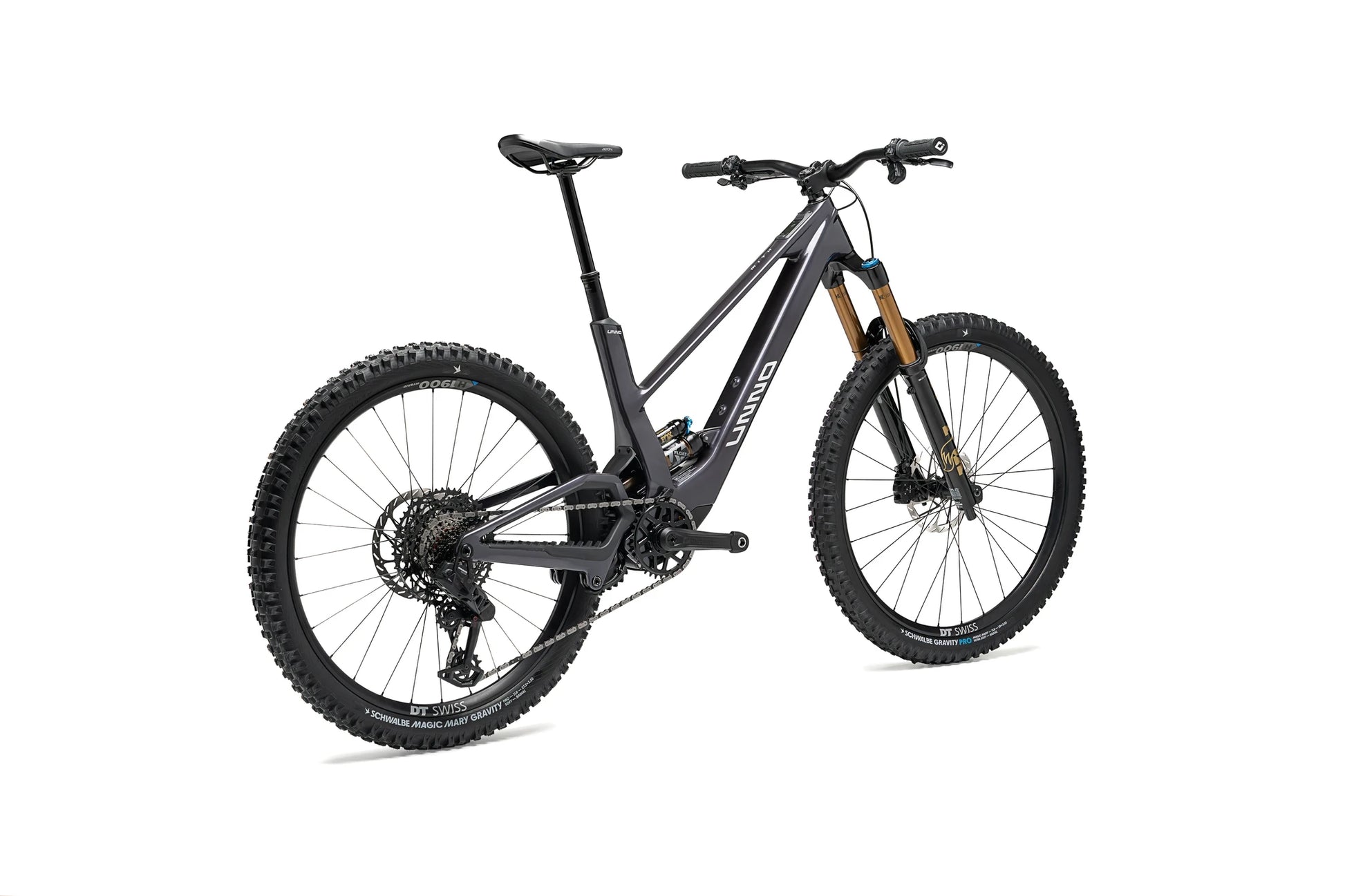

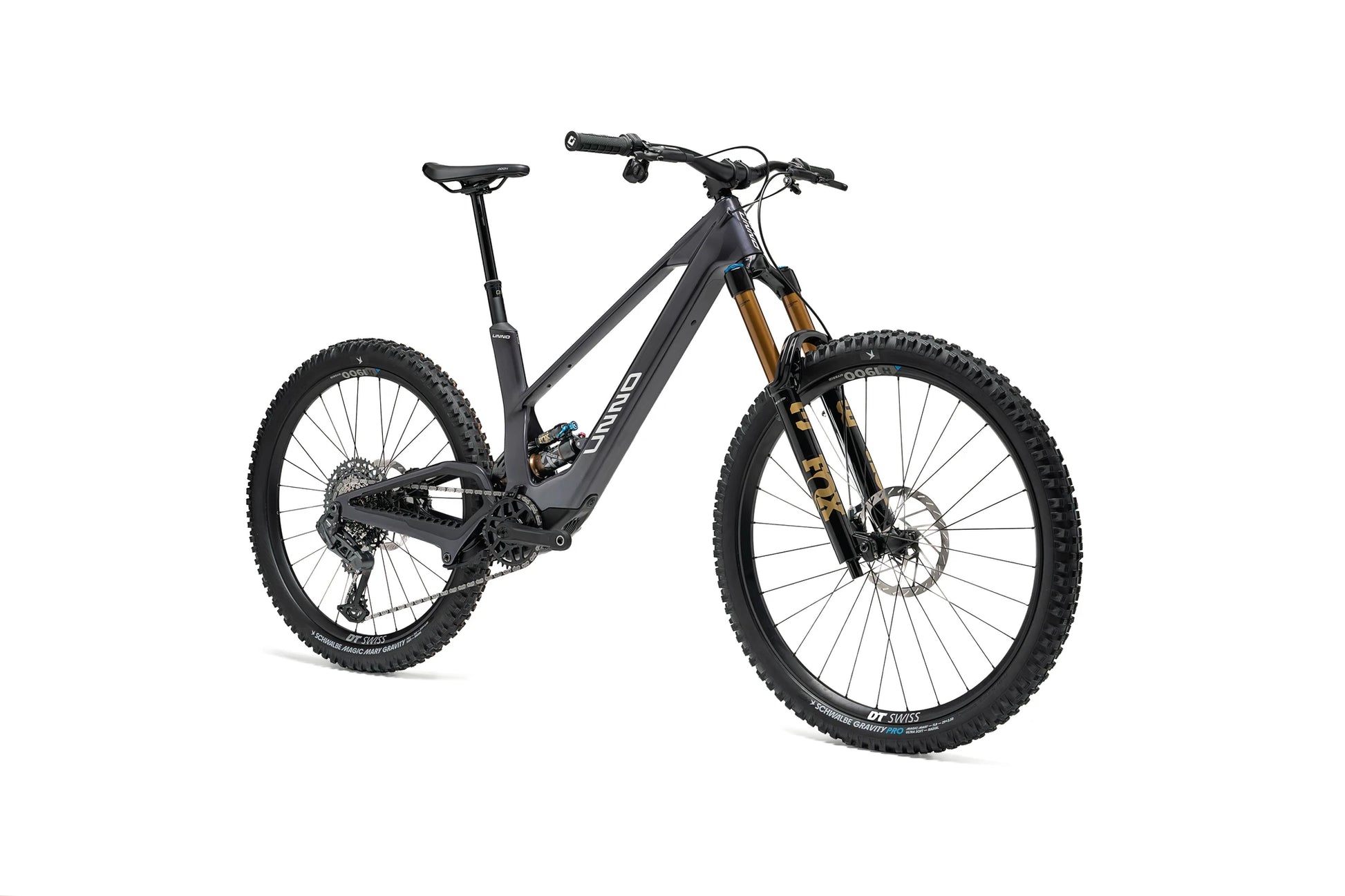

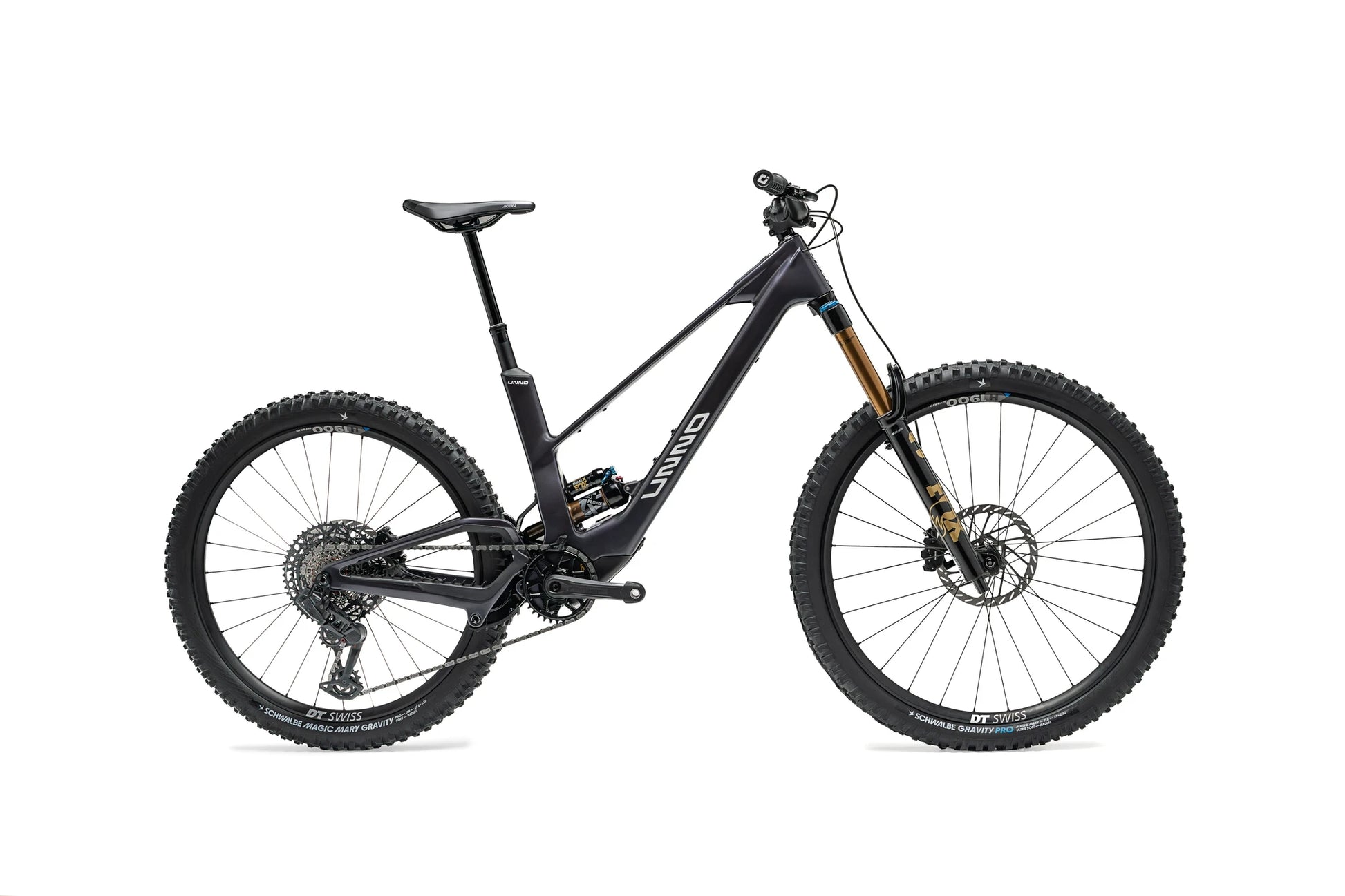

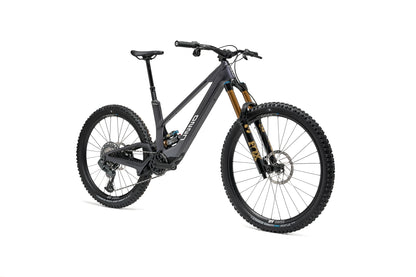

UNNO MITH RACE

Frame & Motor

Frame – UNNO MITH
Carbon fiber monocoque chassis offering 160mm of rear travel, utilizing a virtual pivot suspension system. Integrated components include display, battery, chain guide, and seat tube clamp. Additional features: motor protector, EnduroMAX bearings, internal cable routing, Boost 12x148mm thru-axle, and post mount brake system.
Max tire width: 2.6"
Recommended SAG: 30–35%

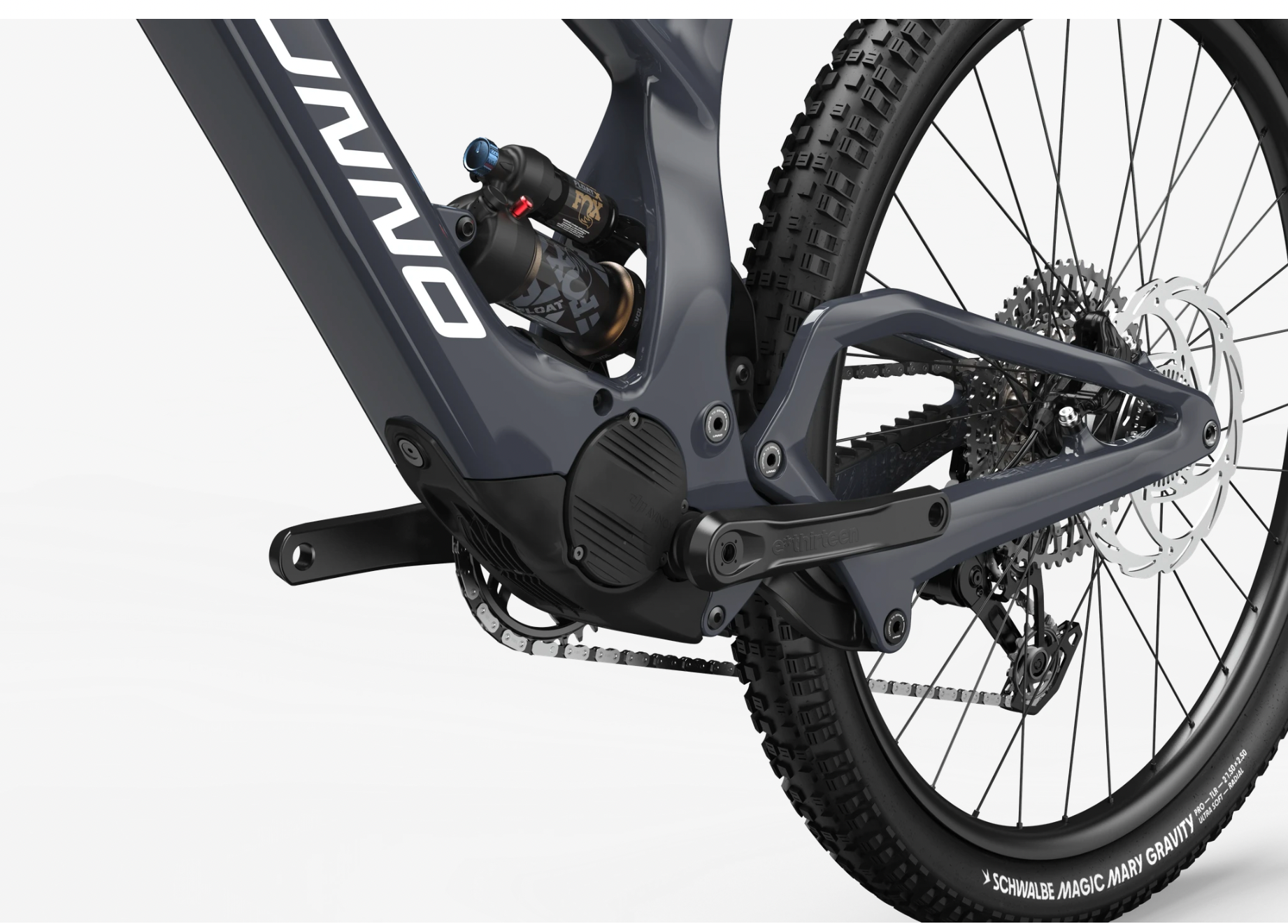

Motor – DJI Avinox
High-performance 2.52 kg drive unit with torque outputs of:

• 70 Nm (Eco)

• 105 Nm (Auto, Trail, Turbo)

• 120 Nm (Boost)

Power ratings include:

• 250W (nominal)

• 850W (peak)

• 1000W (maximum)

Display – DJI Avinox OLED
2-inch smart OLED touchscreen with 800 nits brightness and 326 ppi resolution.

Controller – DJI Dual Wireless Controllers
Bluetooth-enabled wireless handlebar controllers.

Battery – DJI Avinox 800Wh
Fully integrated 800Wh battery weighing 3.74 kg. Includes fast charger capable of charging from 0–100% in 2 hours and 25 minutes.

Suspension

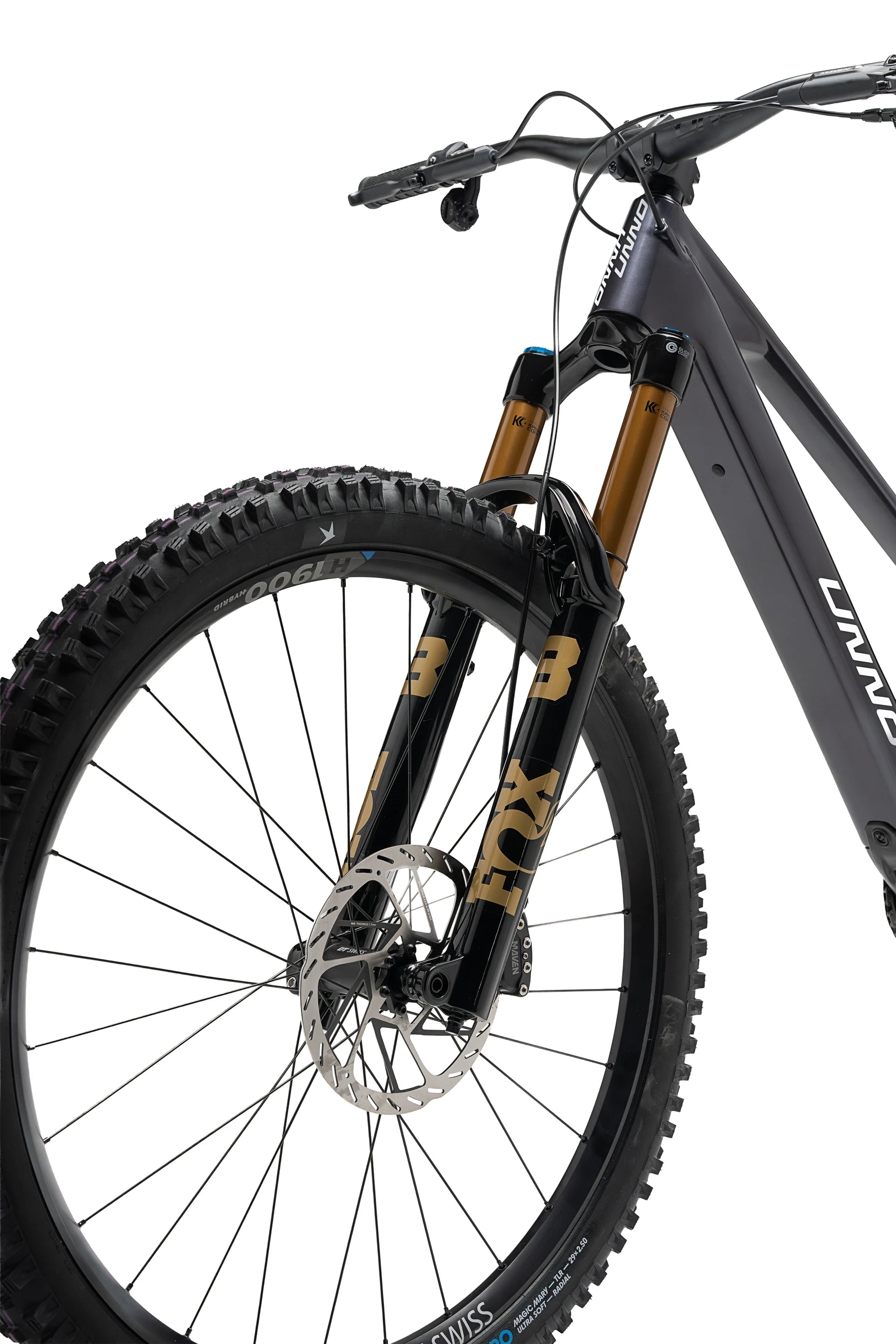

Fork – FOX 38 Factory
170mm travel, Kashima-coated, GRIP X2 damper with full adjustability:

• High/Low Speed Compression

• High/Low Speed Rebound
  44mm offset.

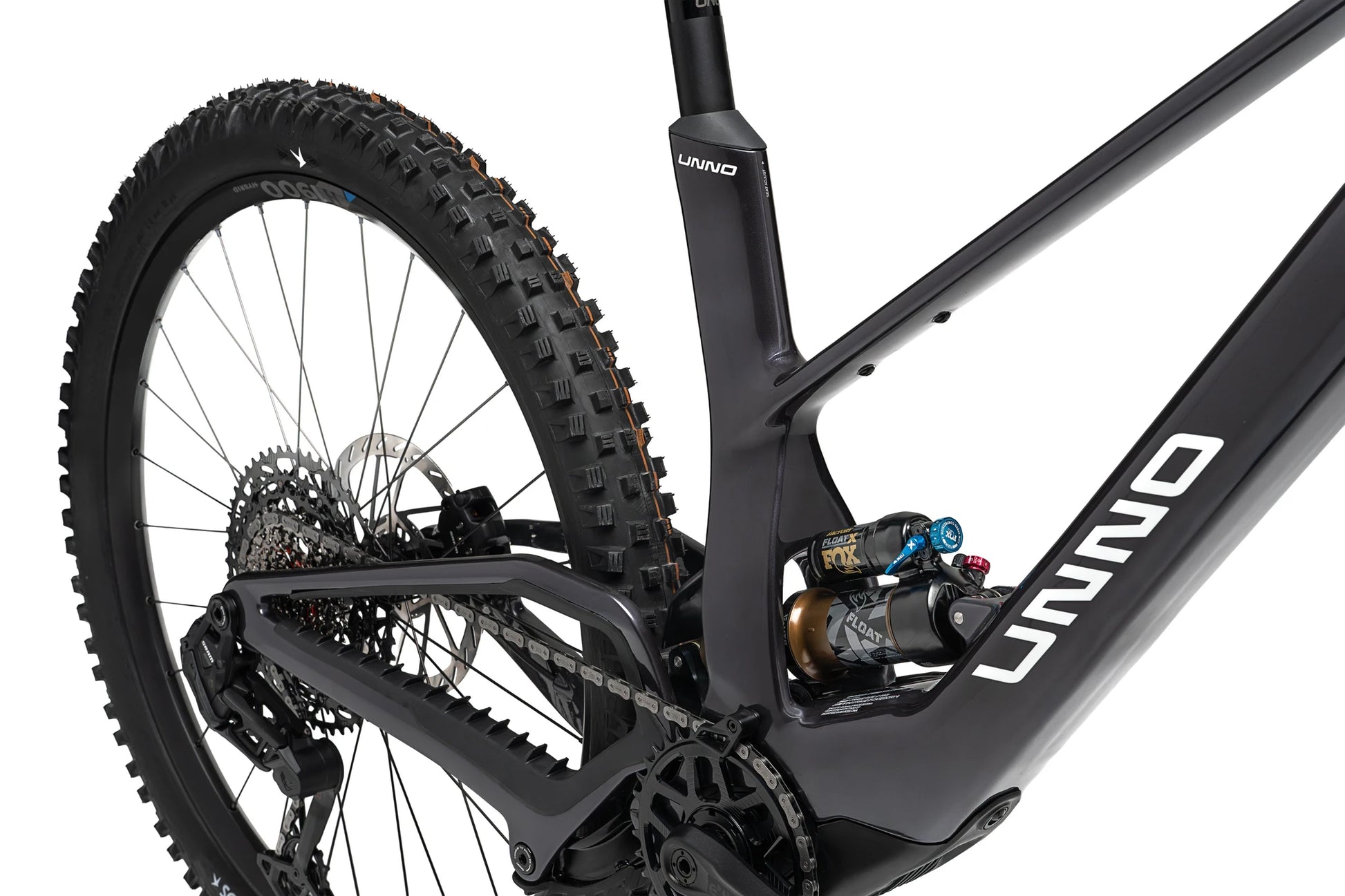

Shock – FOX Float X Factory
230x65mm, Kashima coating, 2-position lever with VVC rebound.
Adjustable HSC, LSC, HSR, LSR.

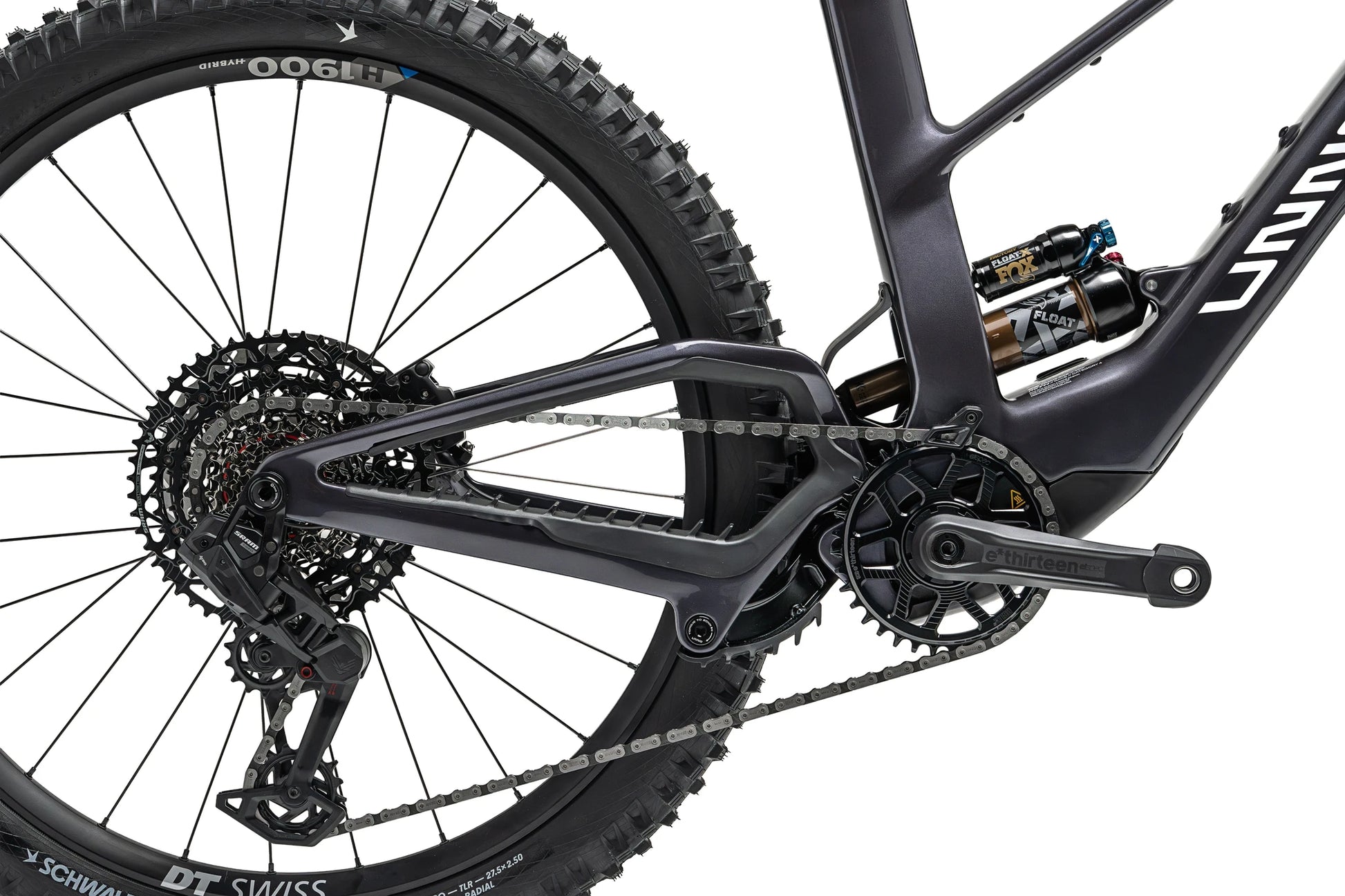

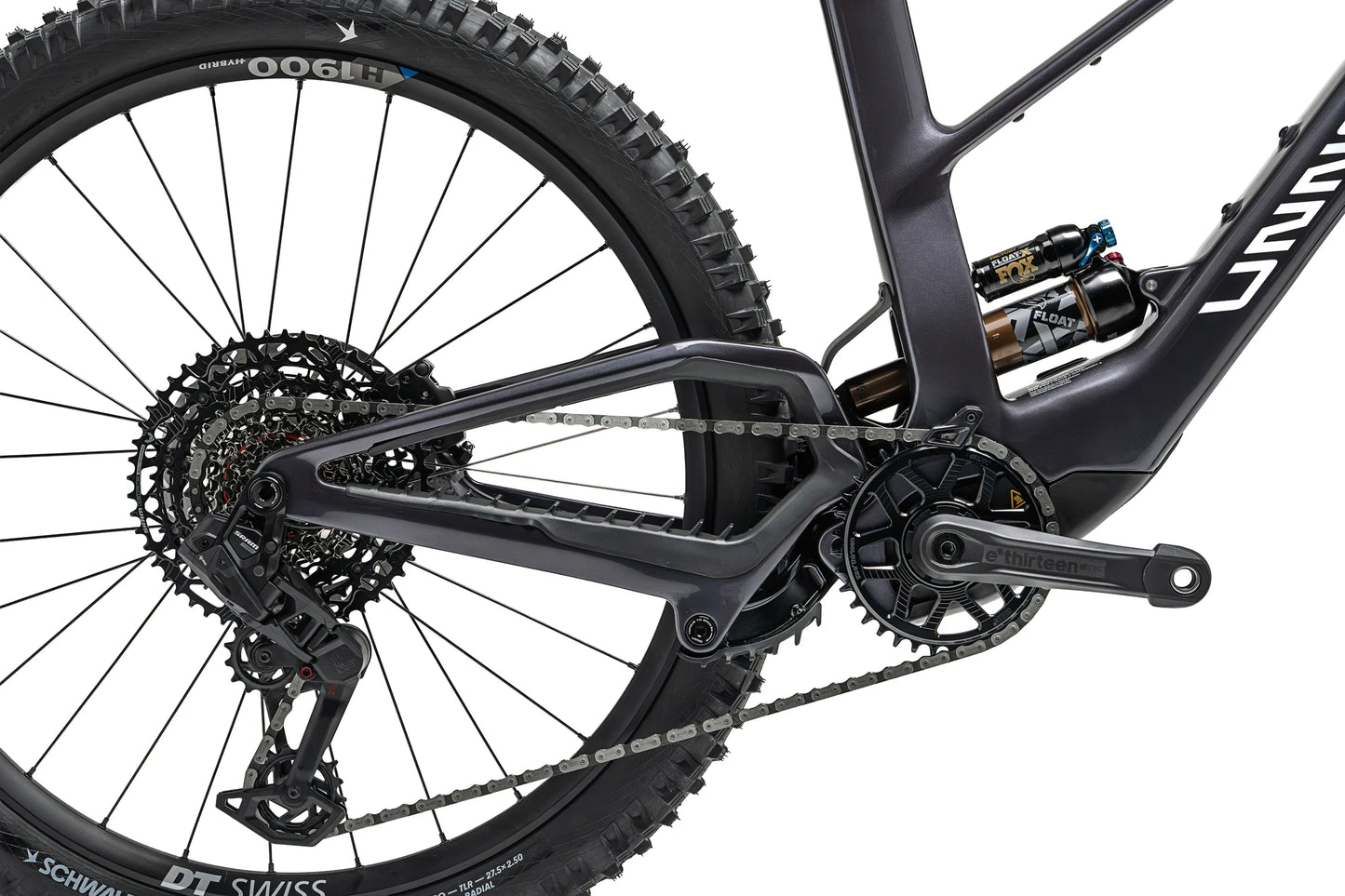

Drivetrain

Rear Derailleur – SRAM S1000 Eagle AXS T-Type
12-speed wireless electronic shifting.

Shifter – SRAM AXS Pod Rocker
Wireless 12-speed controller.

Chainring – UNNO 36T

Cassette – SRAM Eagle XS 1270 T-Type
10–52T, wide-range 12-speed.

Chain – SRAM 70 T-Type
12-speed, 120-link flat-top design.

Crankset – E13 Helix Core e*spec
155mm length, optimized for eMTB.

Wheelset & Tires

Wheels – NEWMEN Performance 30 Alloy
Mullet setup:

• 29” front

• 27.5” rear

Front Tire – SCHWALBE Magic Mary
29” x 2.5”, Ultra Soft, Gravity Pro, TLR.

Rear Tire – SCHWALBE Magic Mary
27.5” x 2.5”, Soft EVO, Gravity Pro, TLR.

Braking System

Brakes – Formula Cura 4
4-piston calipers (4x18mm), SRAM MixMaster compatibility, sintered pads, axial master cylinder, forged aluminum.

• 850mm front hose

• 2000mm rear hose

Rotors – Formula

• 203mm front

• 200mm rear
  Both with integrated speed sensor slots.

Cockpit & Saddle

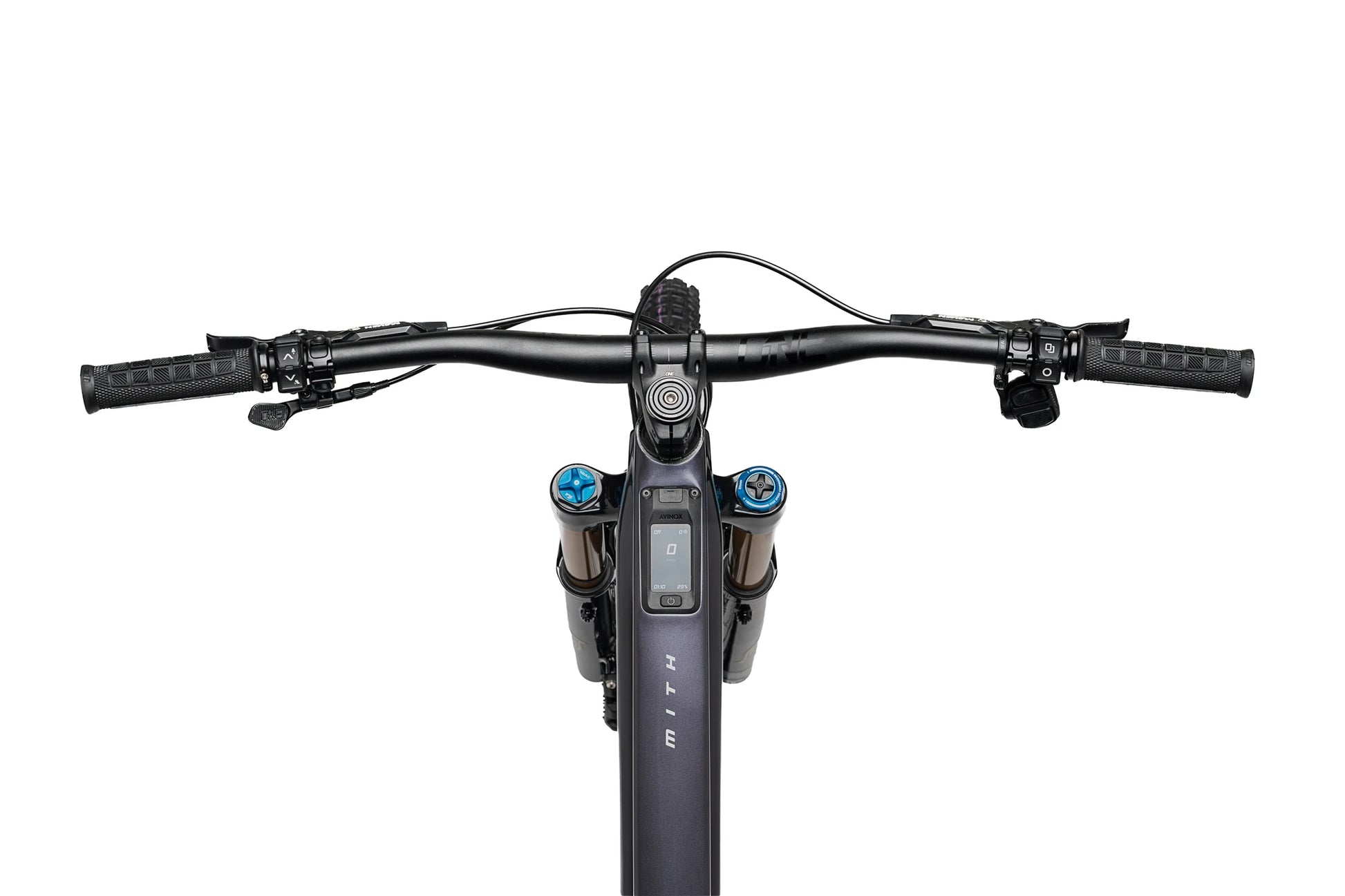

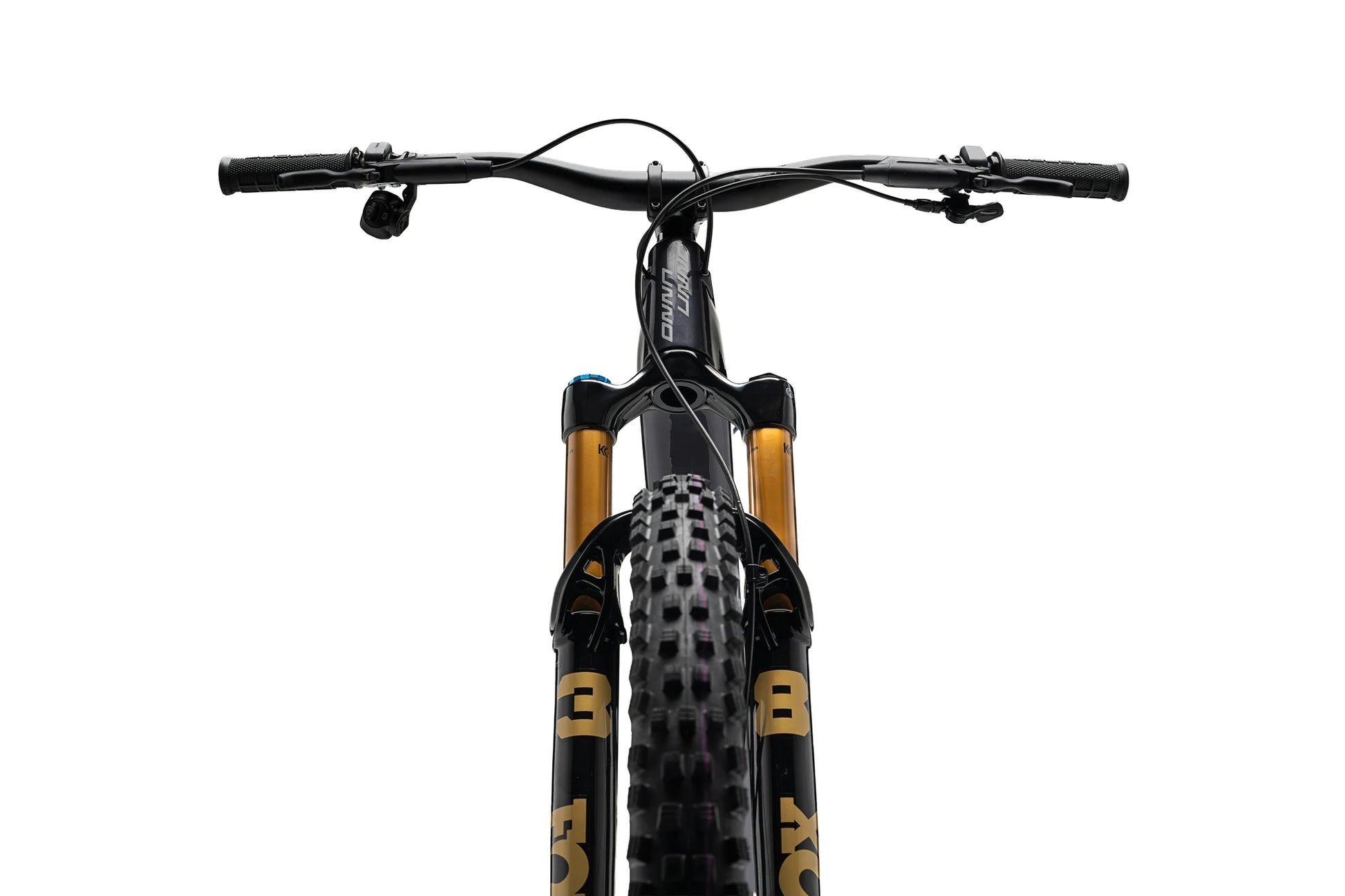

Handlebar & Stem – ONEUP V2 Alloy
35mm diameter, 800mm wide, 35mm rise. Paired with a 42mm OneUp stem.

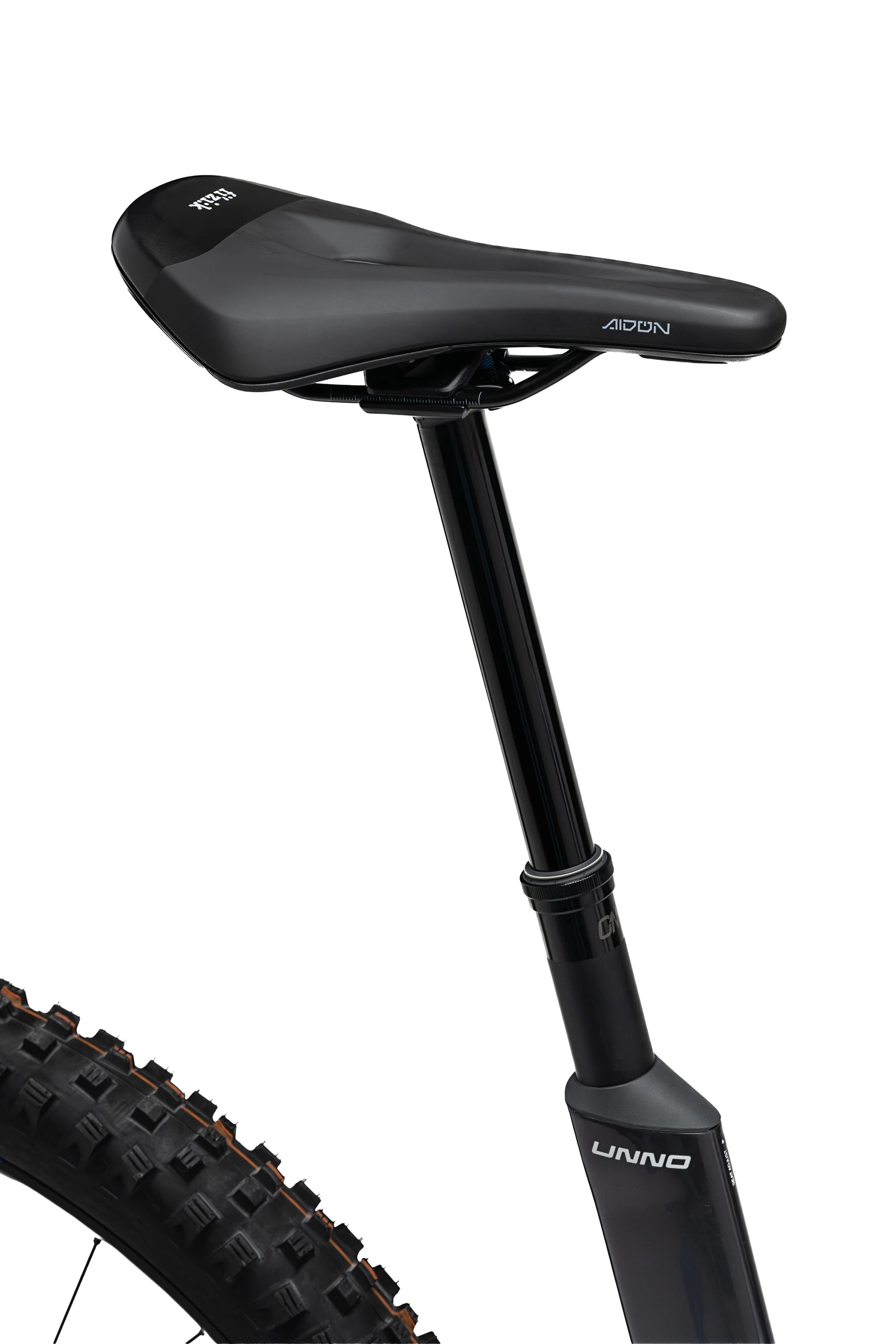

Dropper Post – OneUp V3
Mechanical, 180mm travel, 31.6mm diameter, 22.2mm remote clamp.

Saddle – FIZIK Terra Aidon X5
145mm wide, eMTB-specific comfort and performance.
