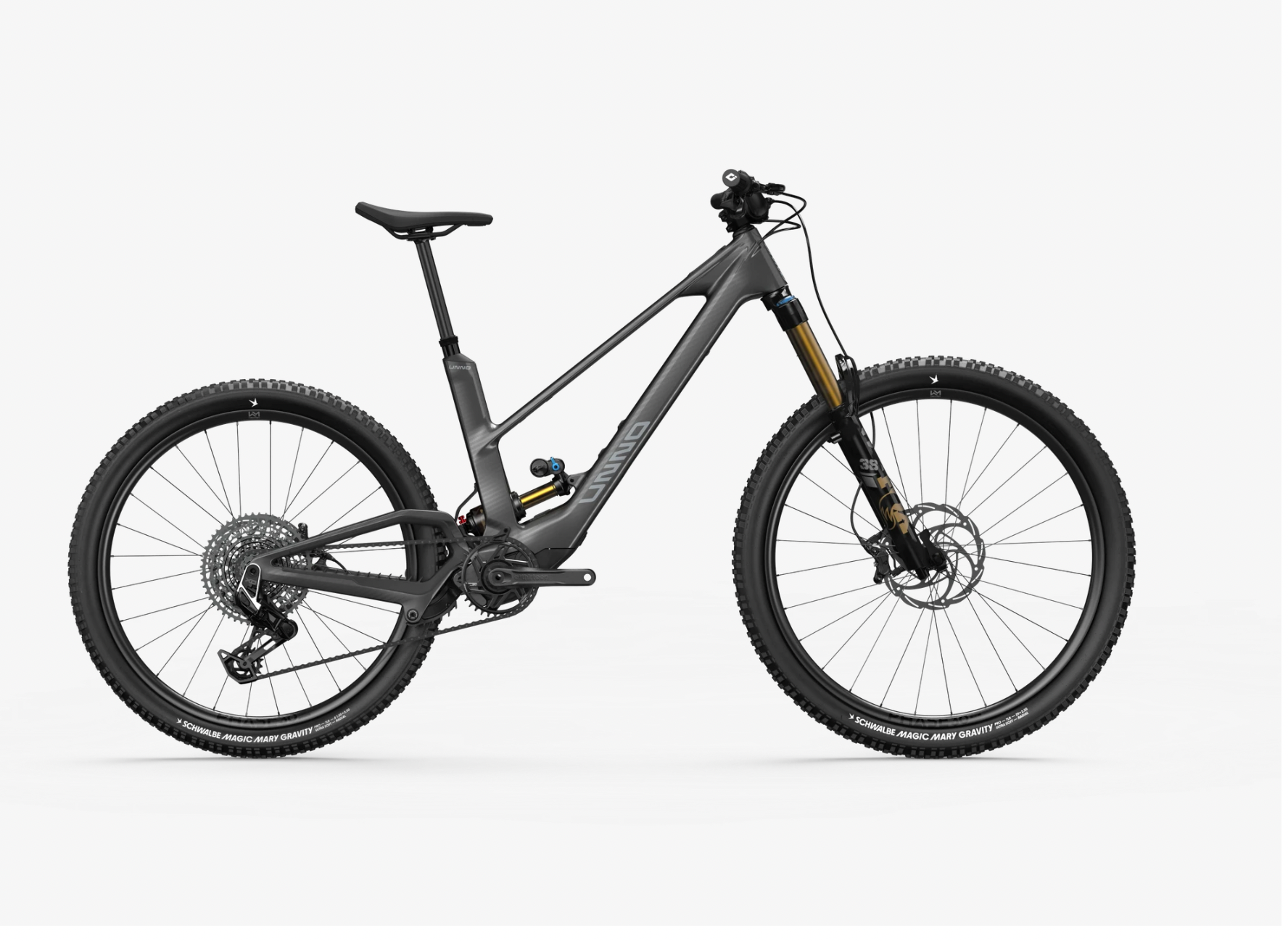

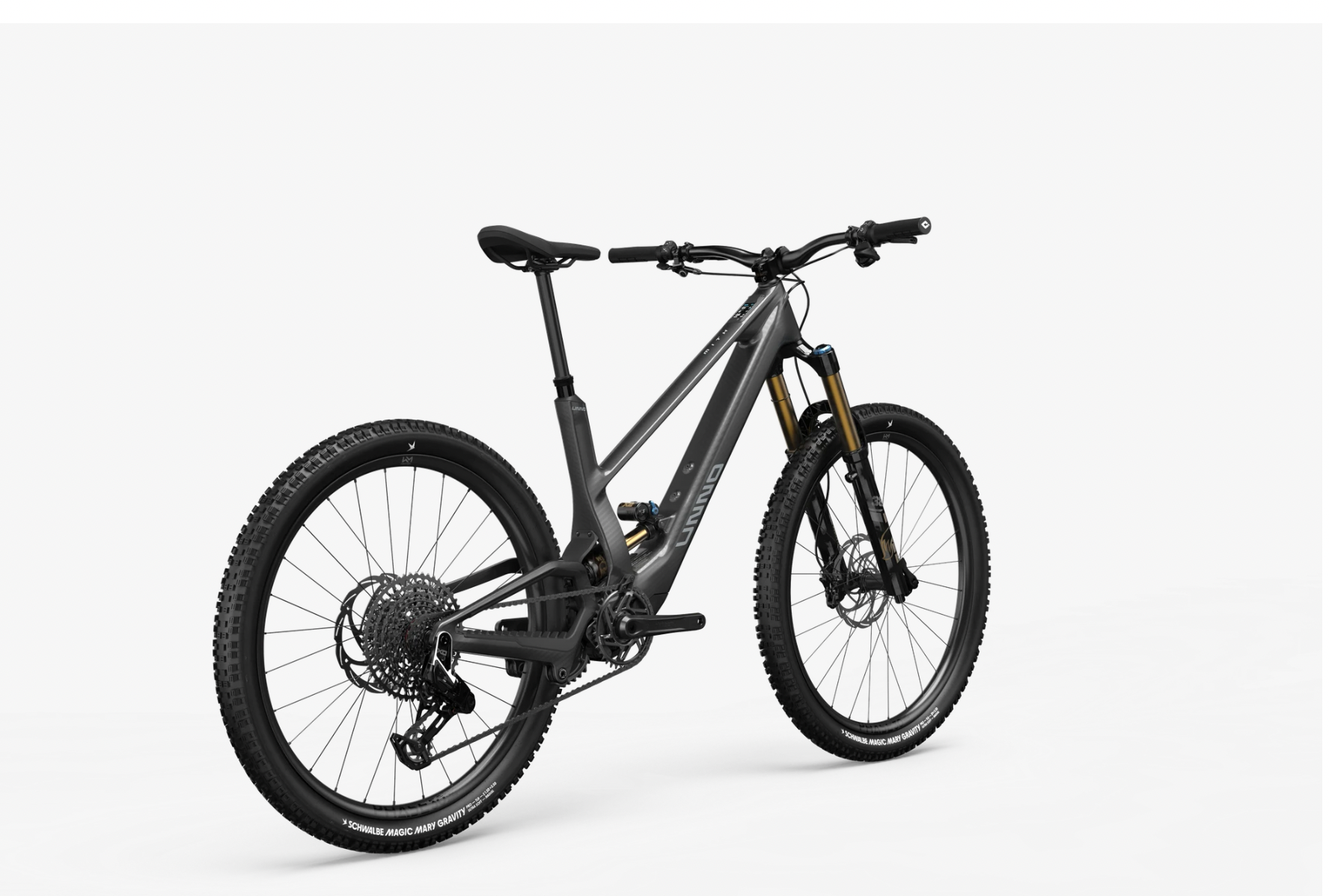

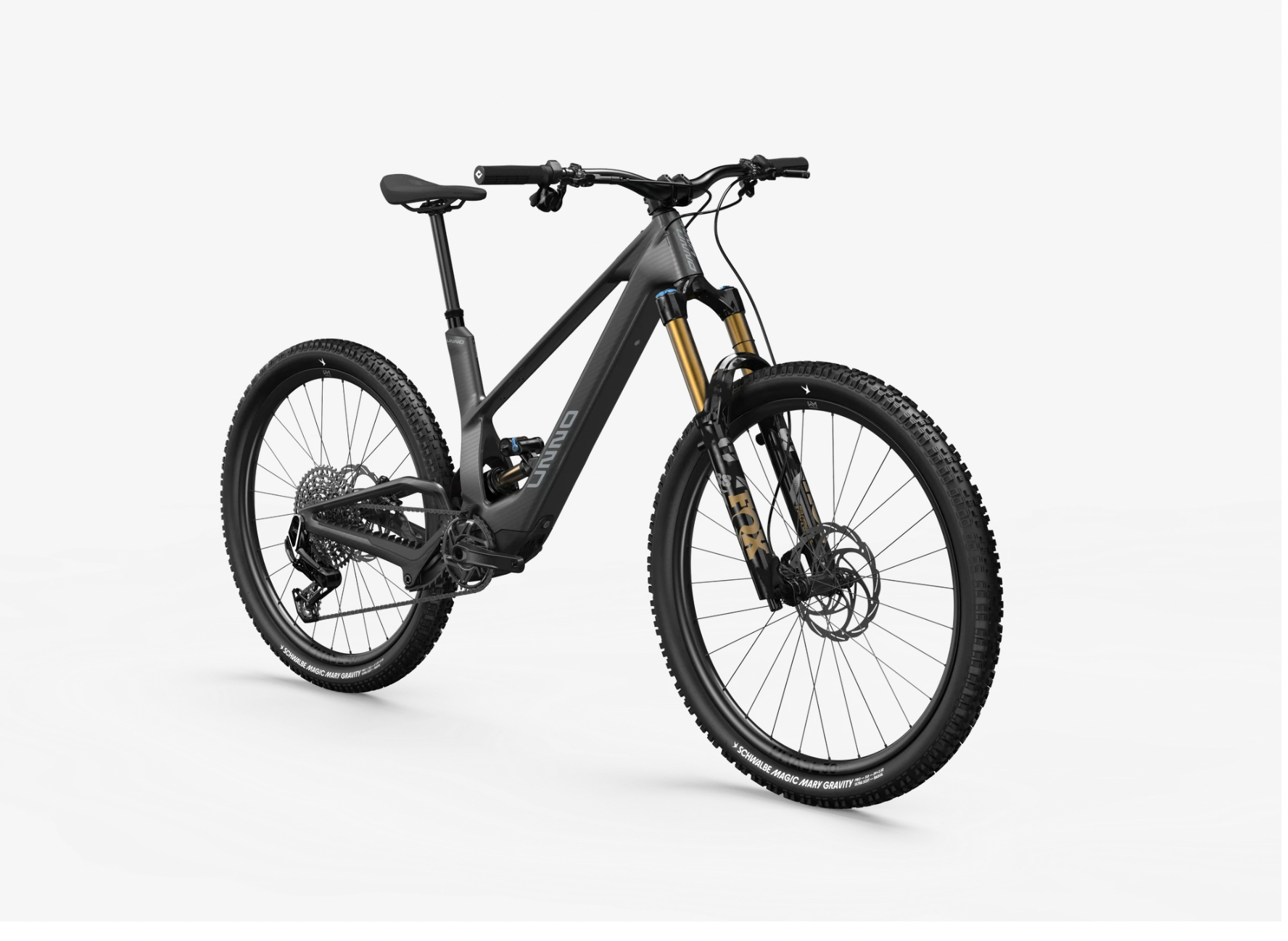

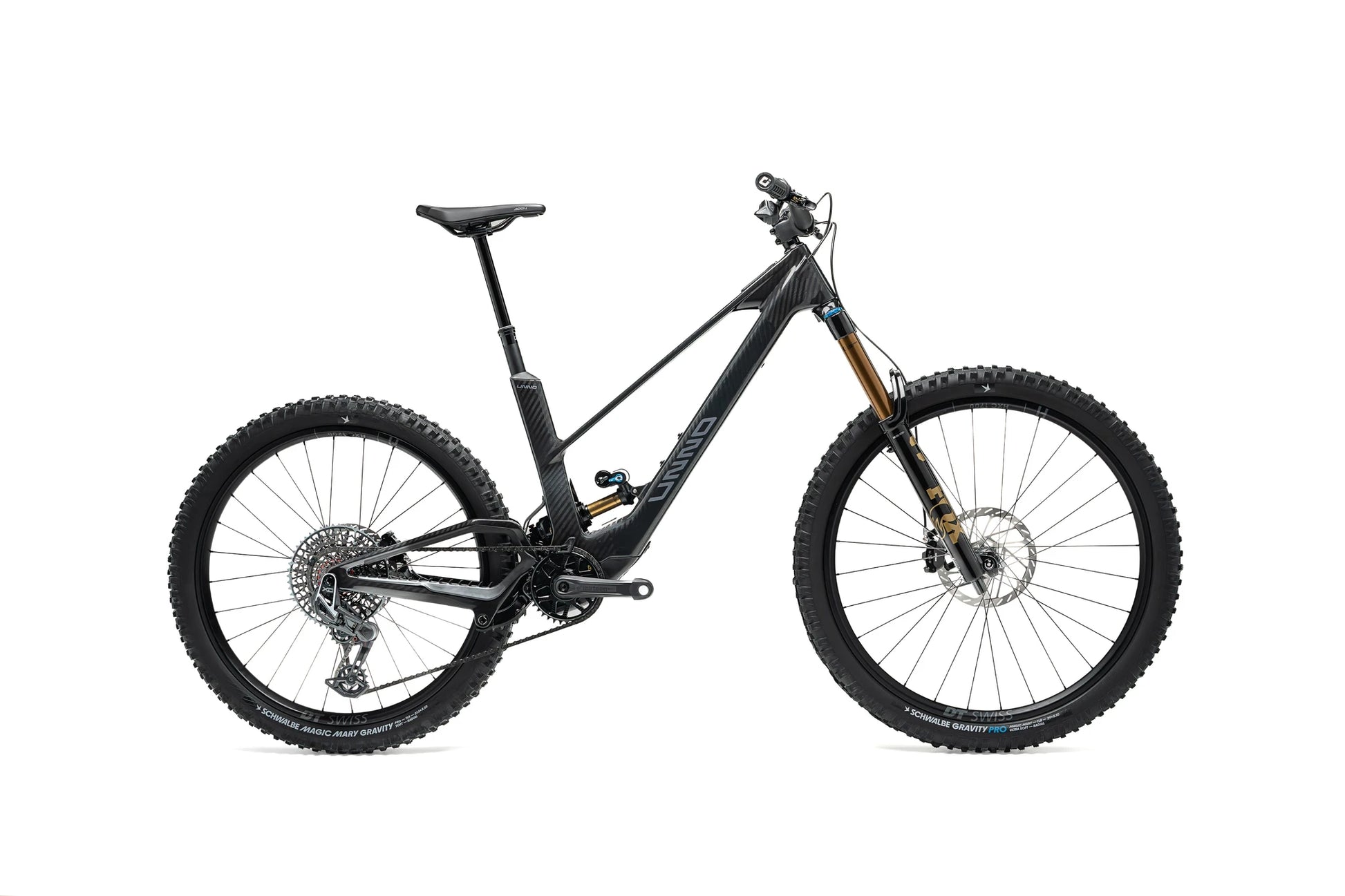

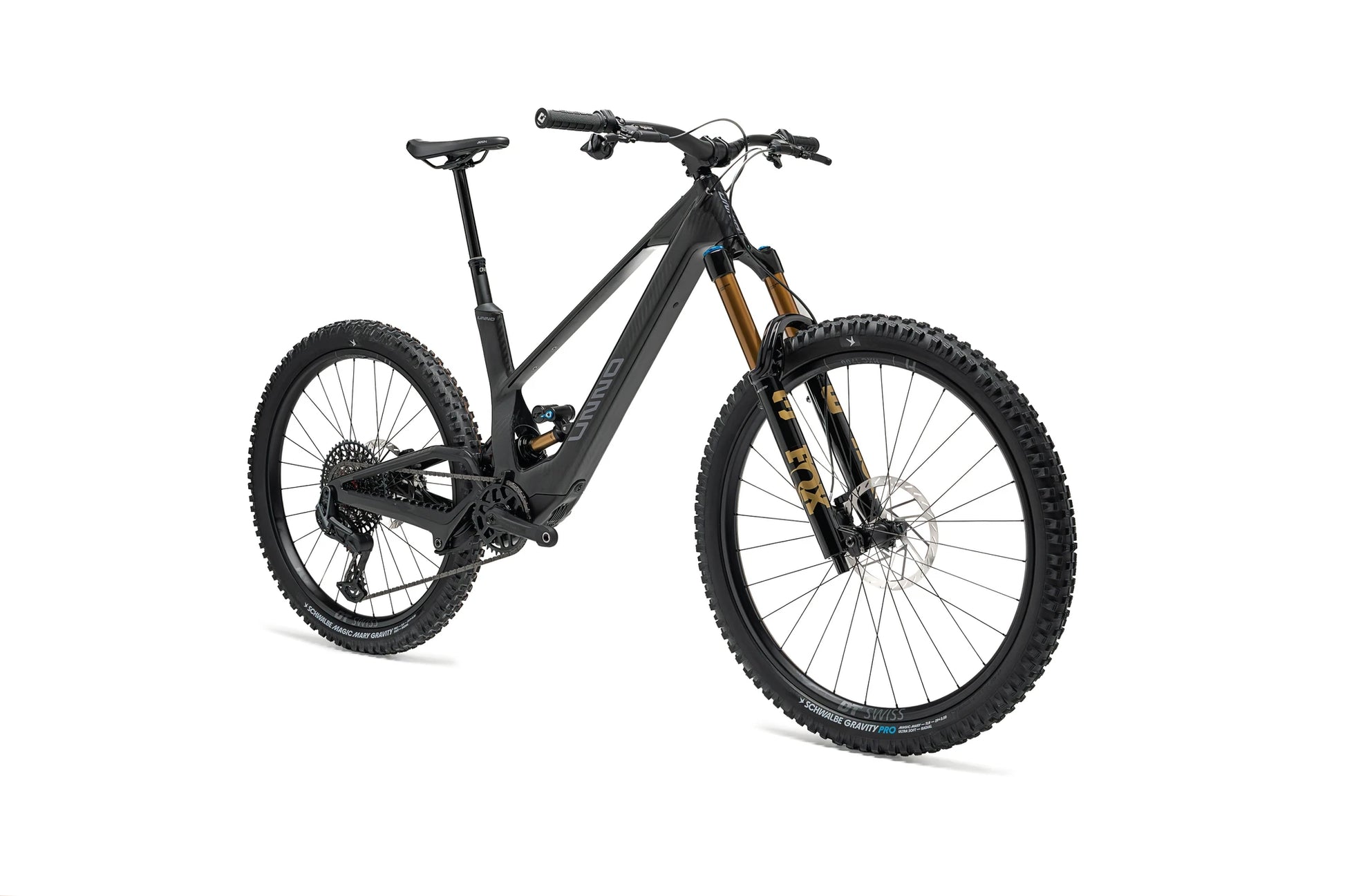

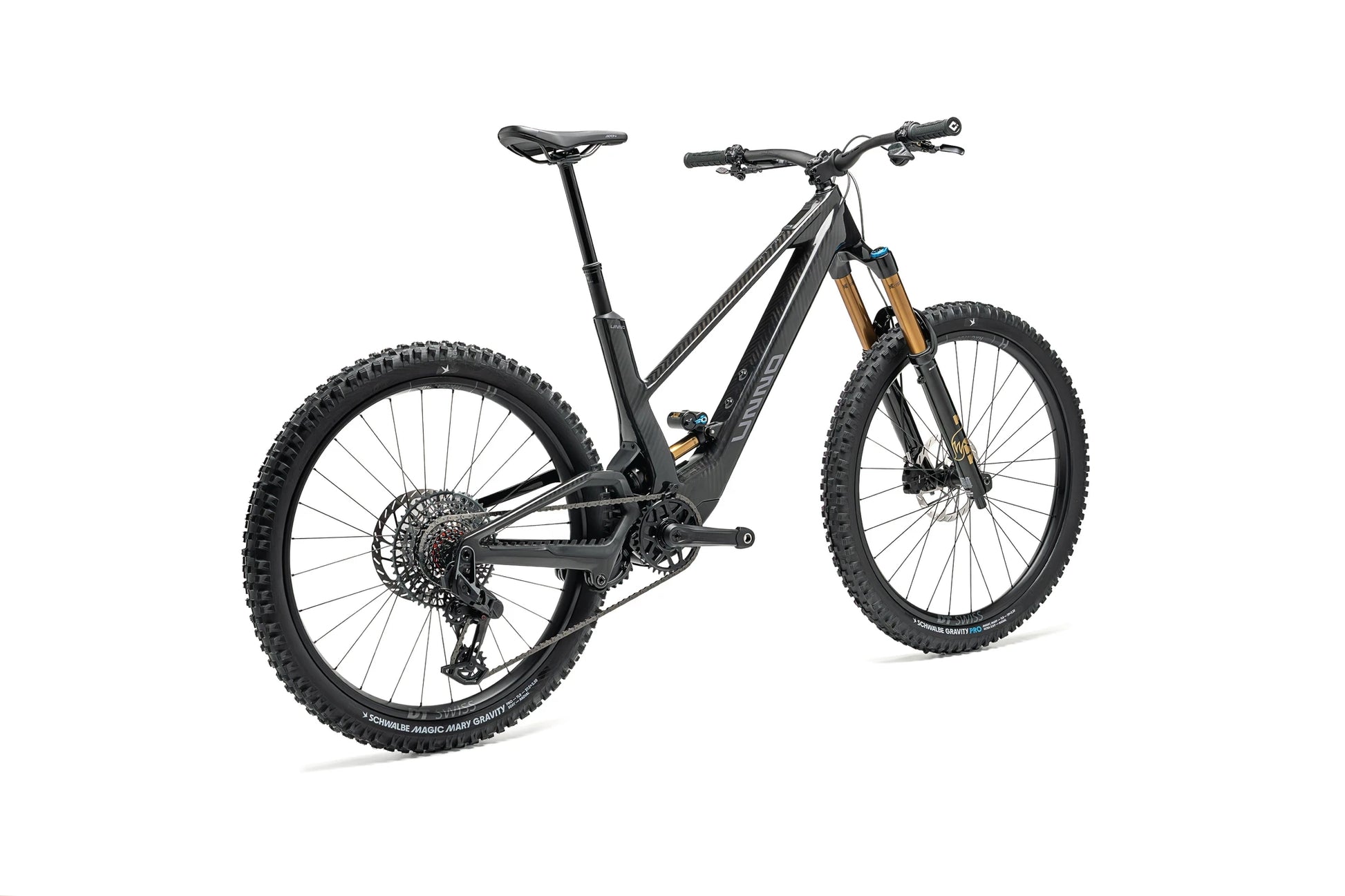

UNNO MITH PRO

SPECS

Frame & Motor

Frame – MITH

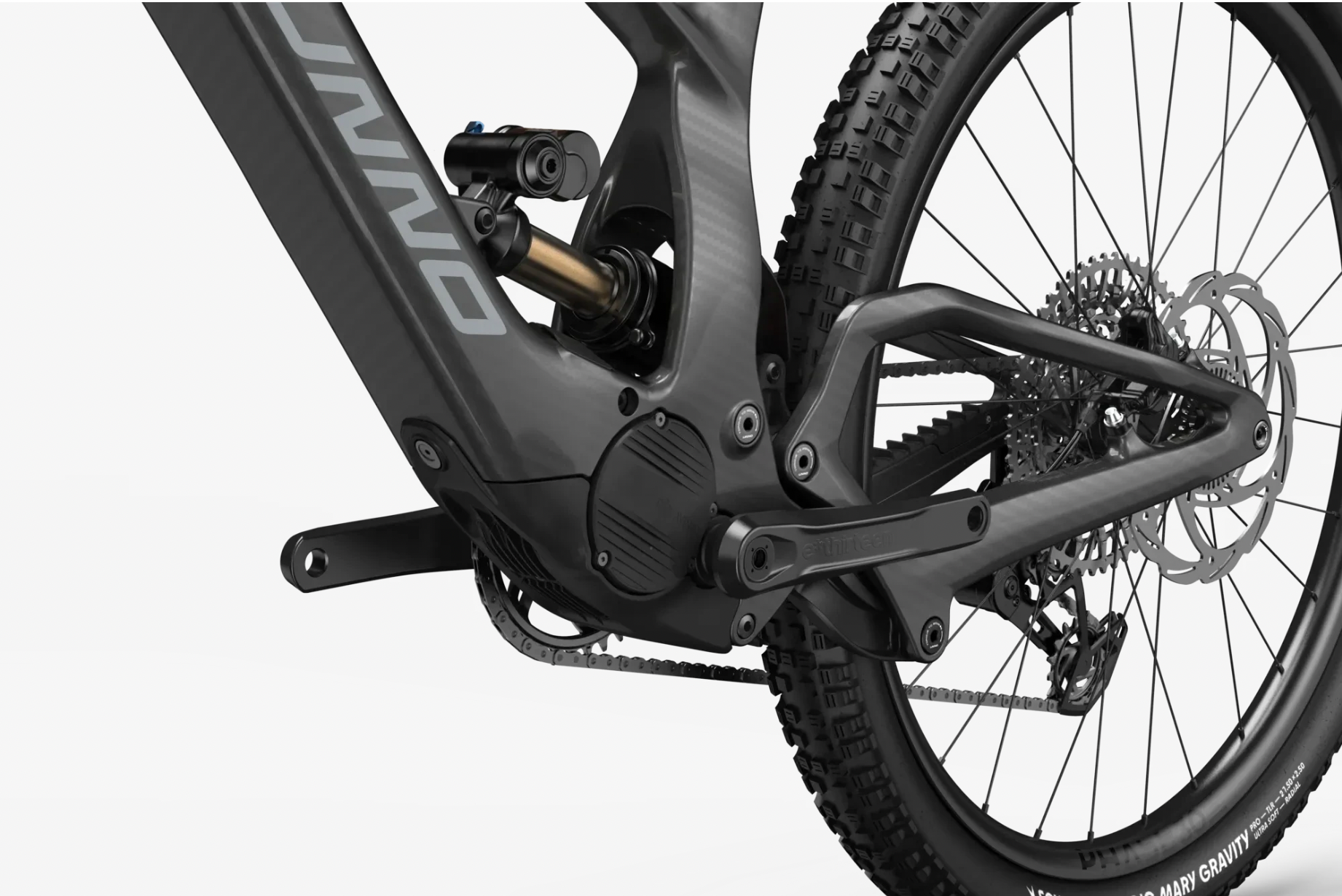

Carbon fiber monocoque chassis with 160mm rear travel, built around a virtual pivot suspension system. Features include:

• Integrated display, battery, chain guide, and seat tube clamp

• Motor protector

• EnduroMAX bearings

• Internal cable routing

• Boost 12x148mm thru-axle

• Post Mount brake system

• Max tire width: 2.6”

• Recommended SAG: 30–35%

Motor – DJI Avinox
2.52 kg high-performance drive unit with multiple torque levels:

• 70 Nm (Eco)

• 105 Nm (Auto, Trail, Turbo)

• 120 Nm (Boost)

Power output:

• 250W rated

• 850W peak

• 1000W max

Display – DJI Avinox OLED
2-inch multi-function OLED touchscreen

• 800 nits brightness

• 326 ppi resolution

Controller – DJI Dual Wireless Controllers
Bluetooth-enabled wireless control units for intuitive navigation and power management.

Battery – DJI Avinox 800Wh
Fully integrated 800Wh battery (3.74 kg)

• Fast charger included

• 0–100% charge in 2 hours 25 minutes

Headset – Cane Creek 40

• TPR-IS41/28.6/H9 (upper)

• IS52/40 (lower)

• No cover

Suspension

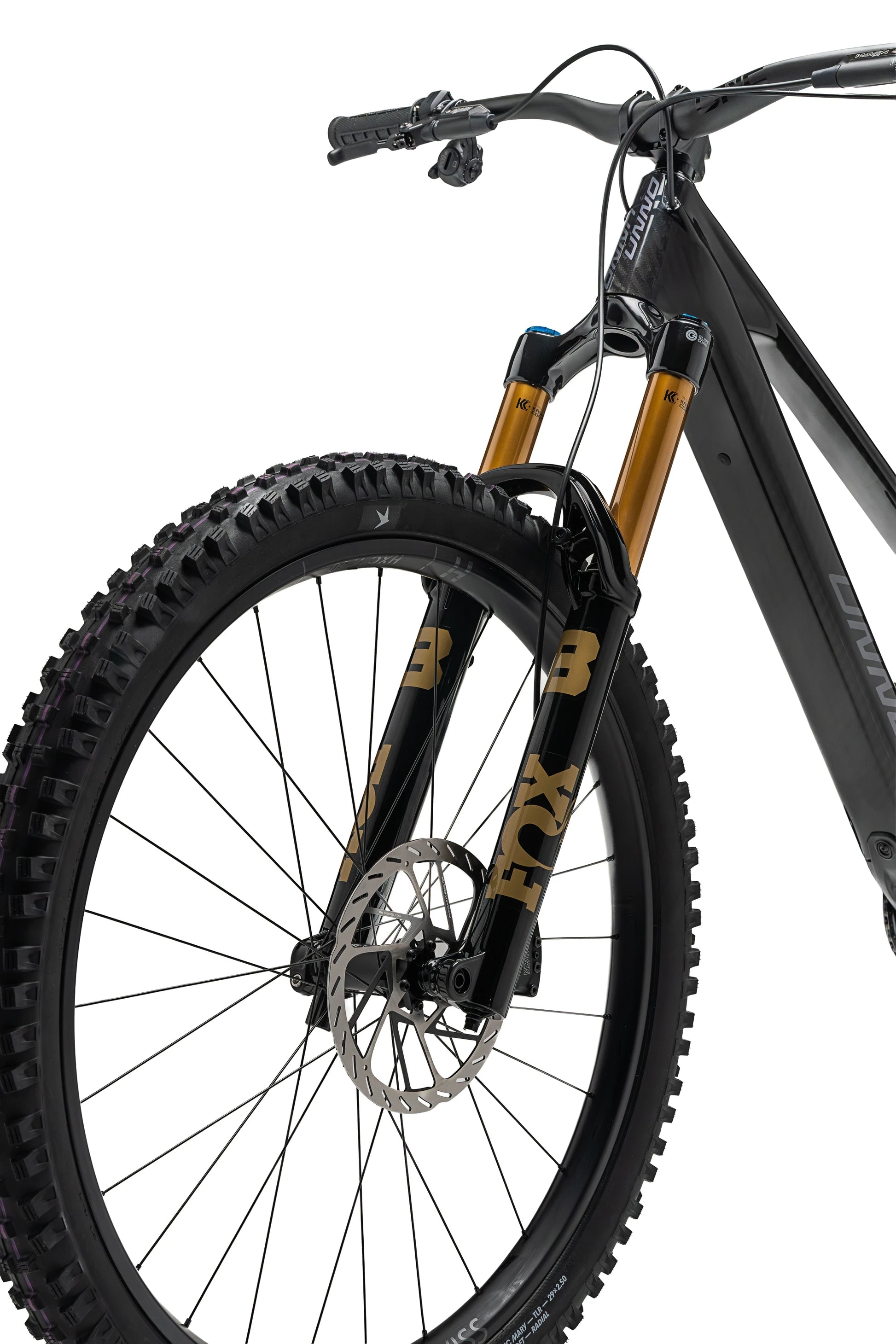

Fork – FOX 38 Factory
170mm travel with Kashima coating and GRIP X2 damper

• Adjustments: High/Low Speed Compression & Rebound (HSC, LSC, HSR, LSR)

• 44mm offset

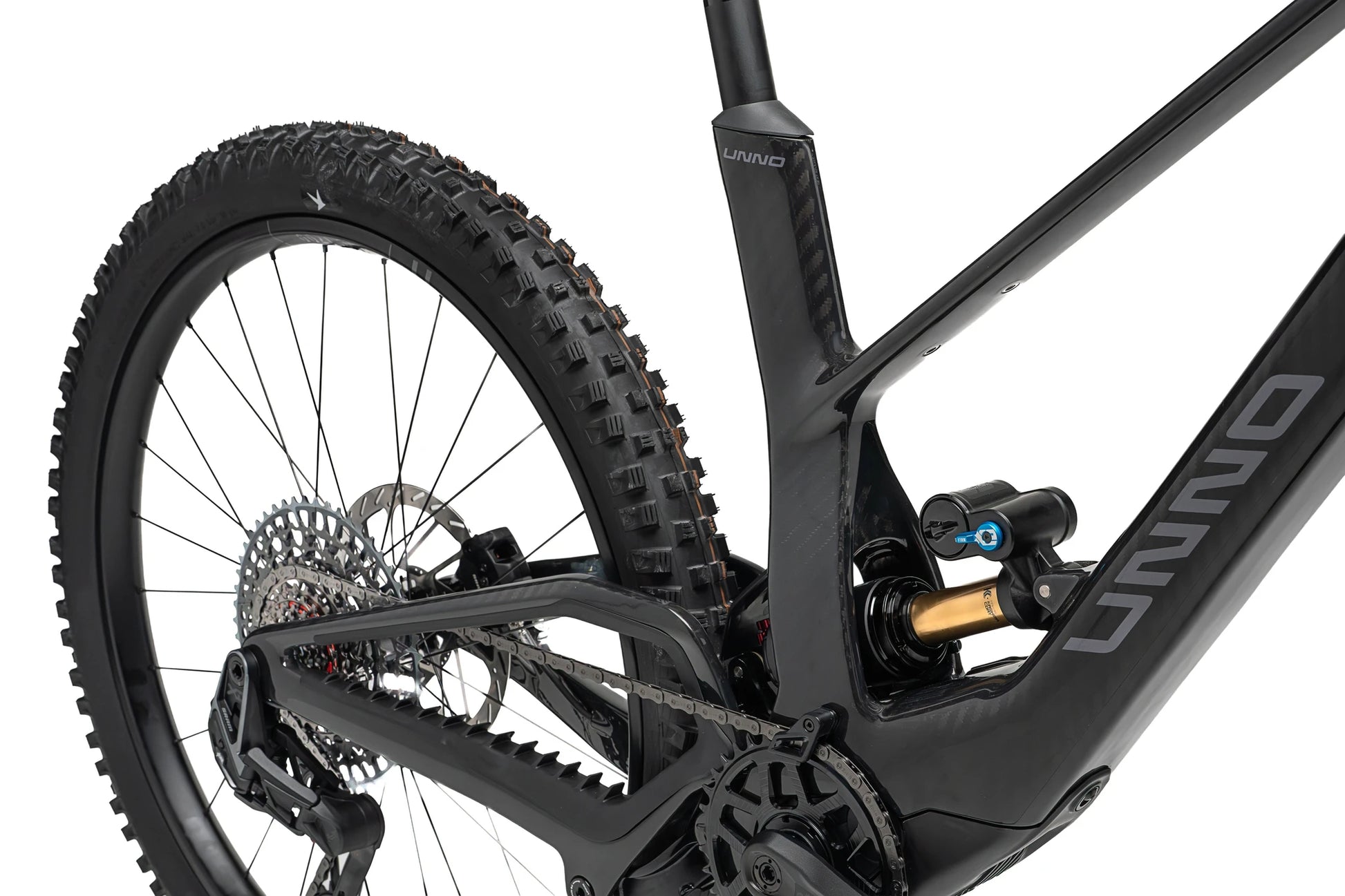

Shock – FOX Float X2 Factory
230x65mm, Kashima-coated, with 2-position lever and VVC rebound

• Full range of adjustments: HSC, LSC, HSR, LSR

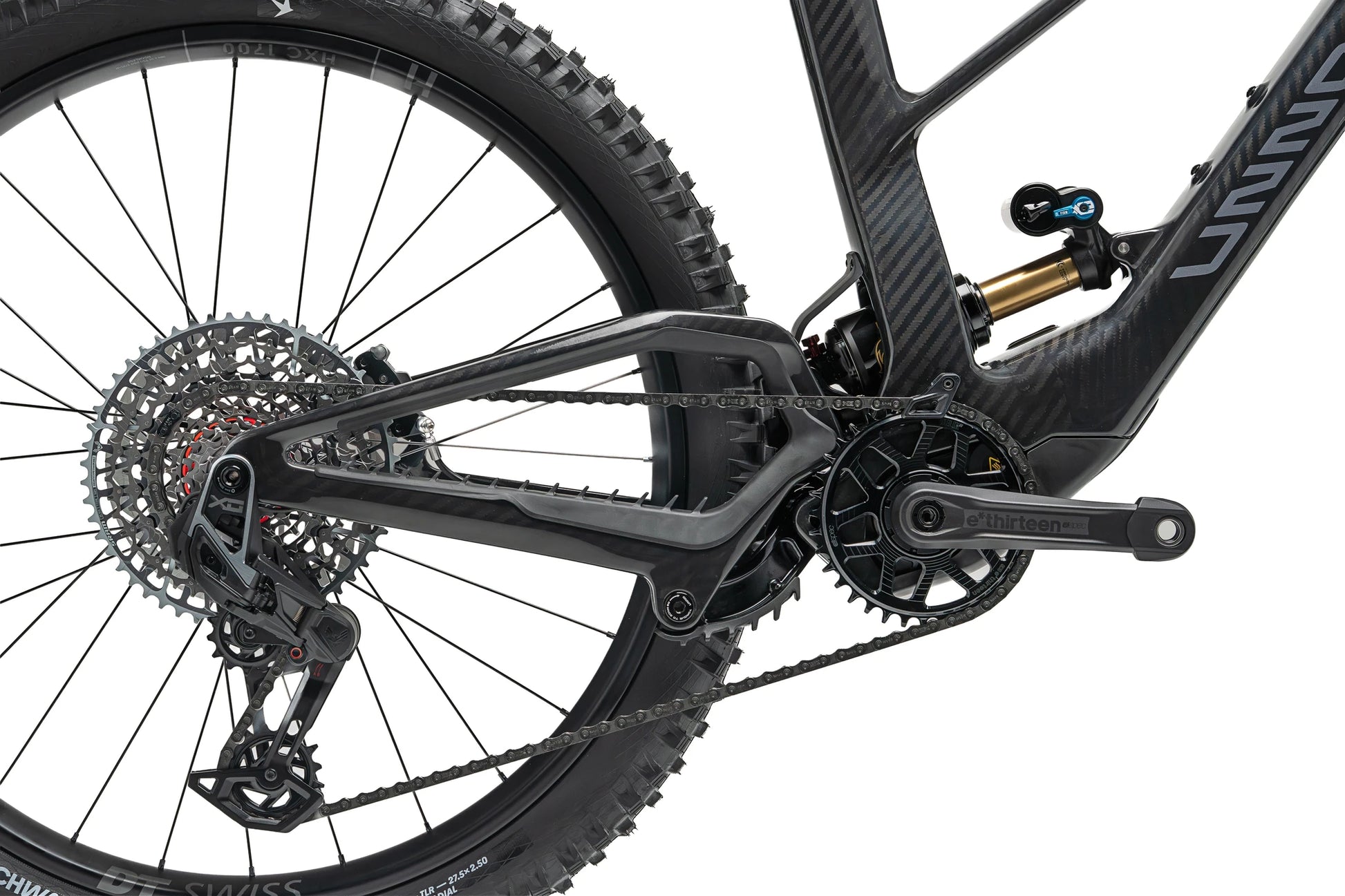

Drivetrain

Rear Derailleur – SRAM X0 Eagle AXS T-Type
12-speed wireless electronic shifting, T-Type compatibility

Shifter – SRAM AXS Pod Ultimate
12-speed wireless controller with ergonomic concave design

Chainring – UNNO 36T

Cassette – SRAM X0 T-Type XS-1295
12-speed, 10–52T wide-range

Chain – SRAM X0 T-Type
12-speed, 120-link flat-top

Crankset – E13 Helix Core e*spec
155mm length, eMTB optimized

Wheelset & Tires

Wheels – NEWMEN Phase 30 Carbon
Mullet setup:

• 29” front

• 27.5” rear

Front Tire – SCHWALBE Magic Mary
29” x 2.5”

• Ultra Soft

• Gravity Pro

• TLR

Rear Tire – SCHWALBE Magic Mary
27.5” x 2.5”

• Soft EVO

• Gravity Pro

• TLR

Brakes

Brakes – Formula Cura 4

• 4-piston caliper (4x18mm)

• SRAM MixMaster compatibility

• Axial master cylinder

• Sintered pads

• Forged aluminum lever bodies

• Hose lengths: 850mm (front), 2000mm (rear)

Rotors – Formula

• 203mm front

• 200mm rear

• Integrated speed sensor slots

Cockpit & Saddle

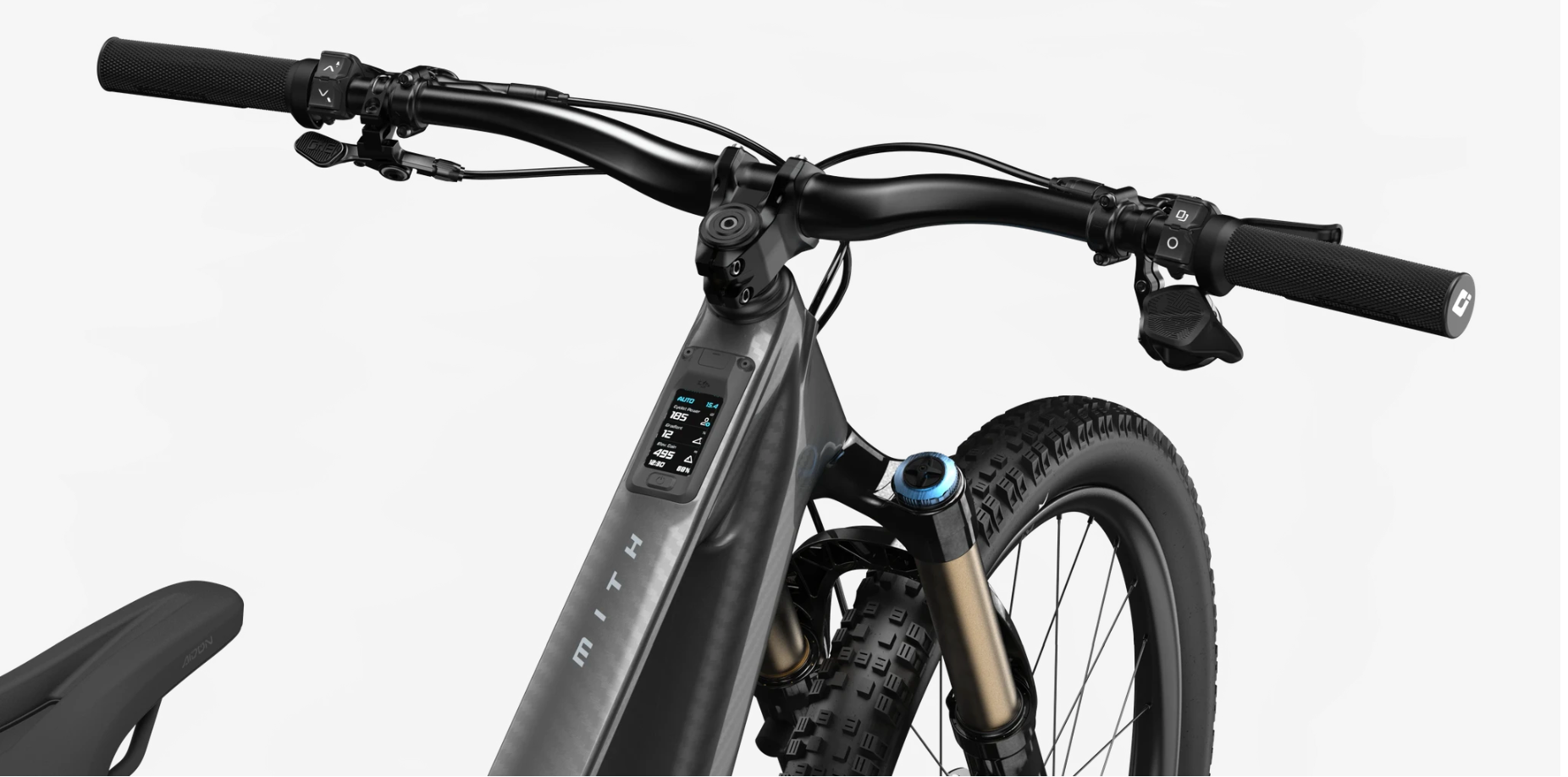

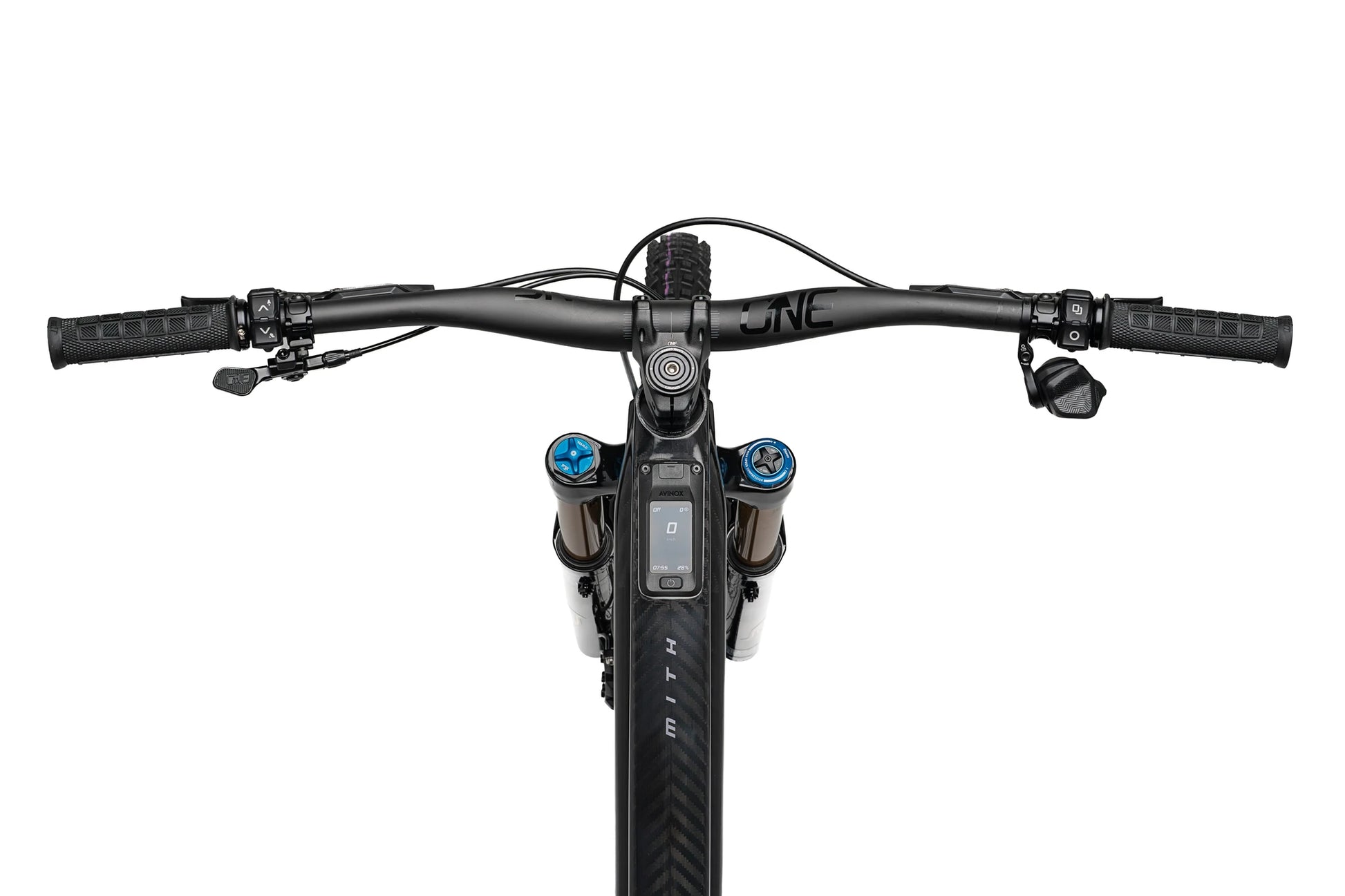

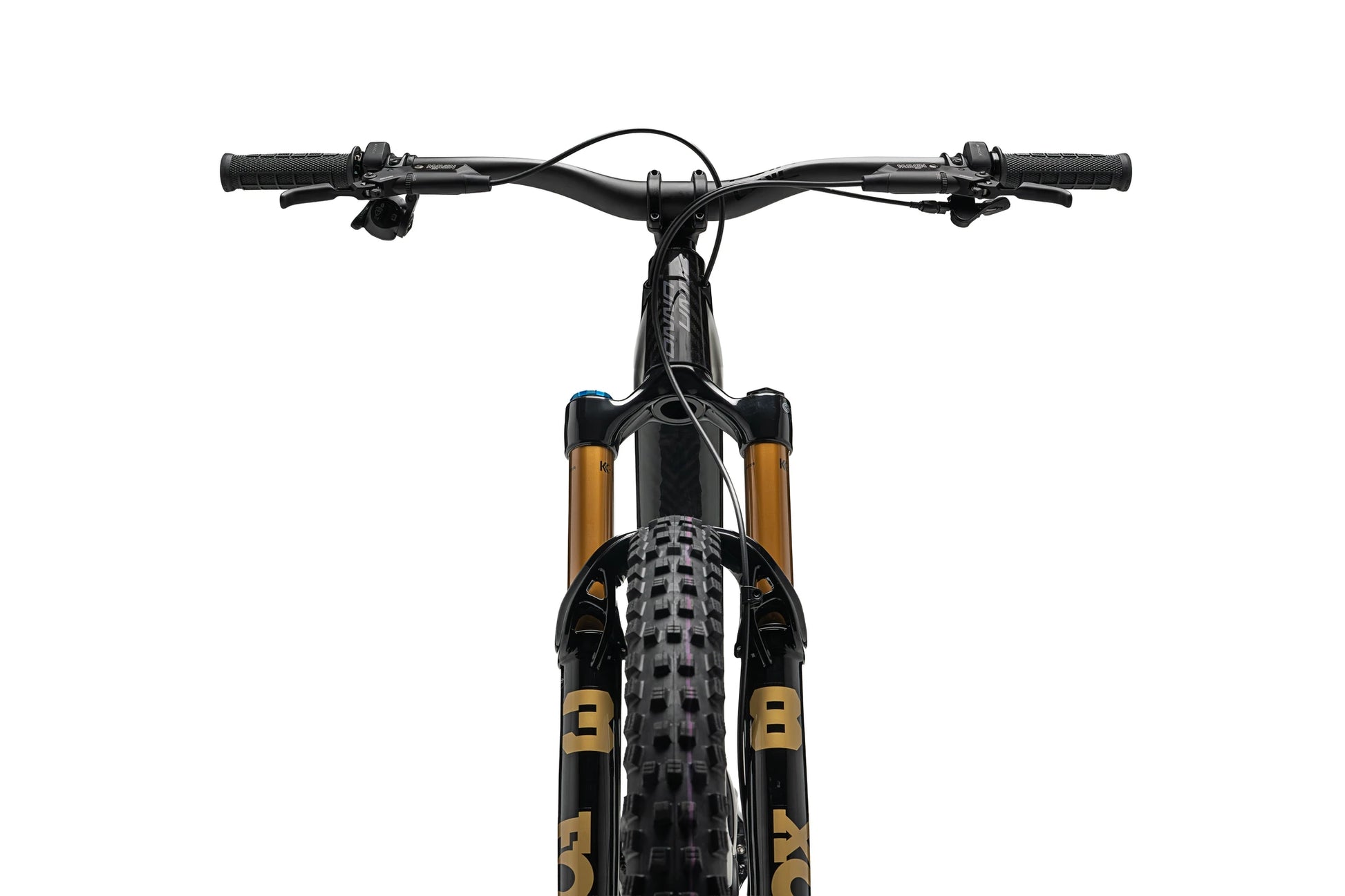

Handlebar & Stem – ONEUP V2 Carbon

• Carbon bar: 35mm diameter, 800mm width, 35mm rise

• ONEUP 42mm stem

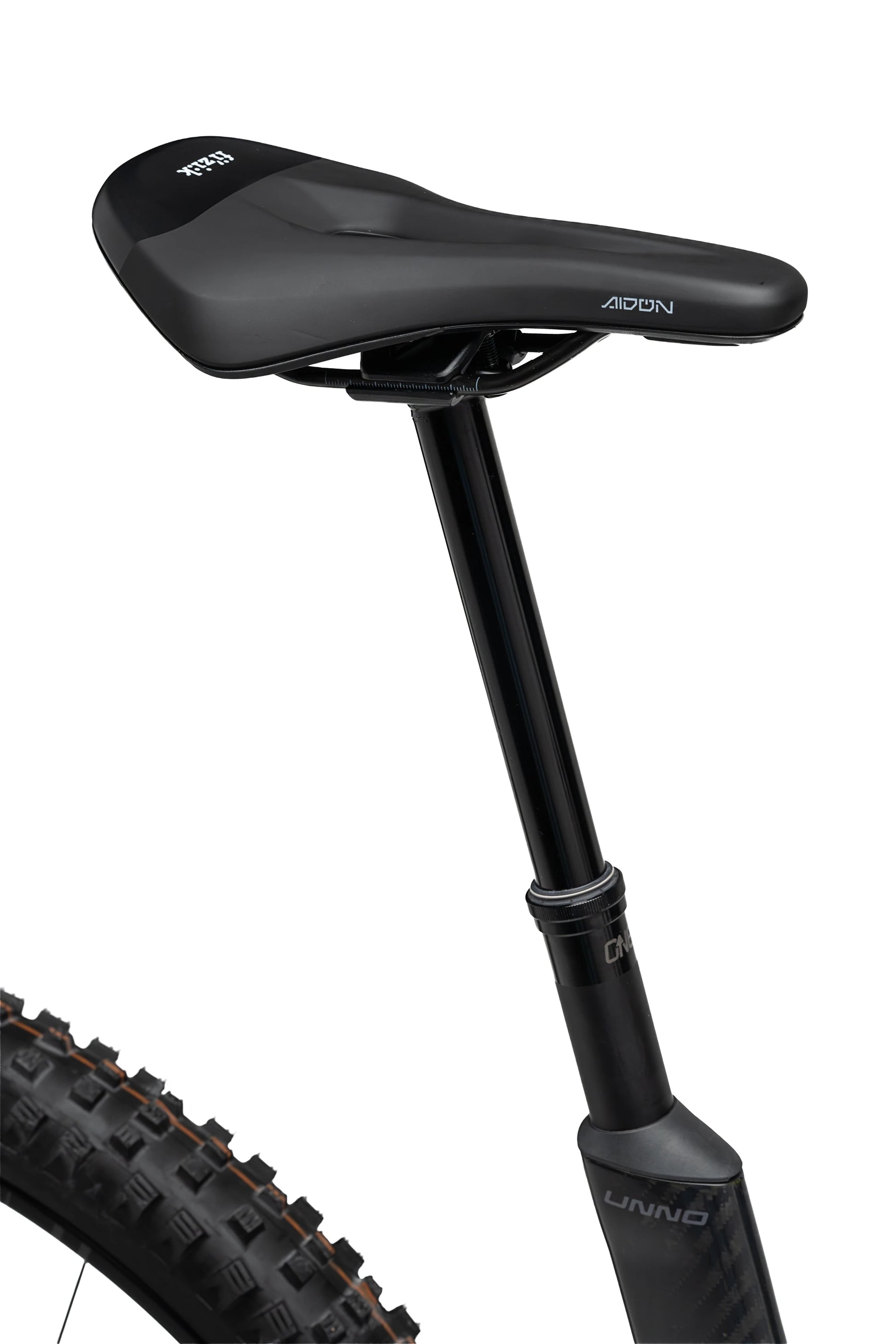

Dropper Post – ONEUP V3

• Mechanical actuation

• 180mm travel

• 31.6mm diameter

• 22.2mm remote clamp

Saddle – FIZIK Terra Aidon X5
145mm width, eMTB-specific design
