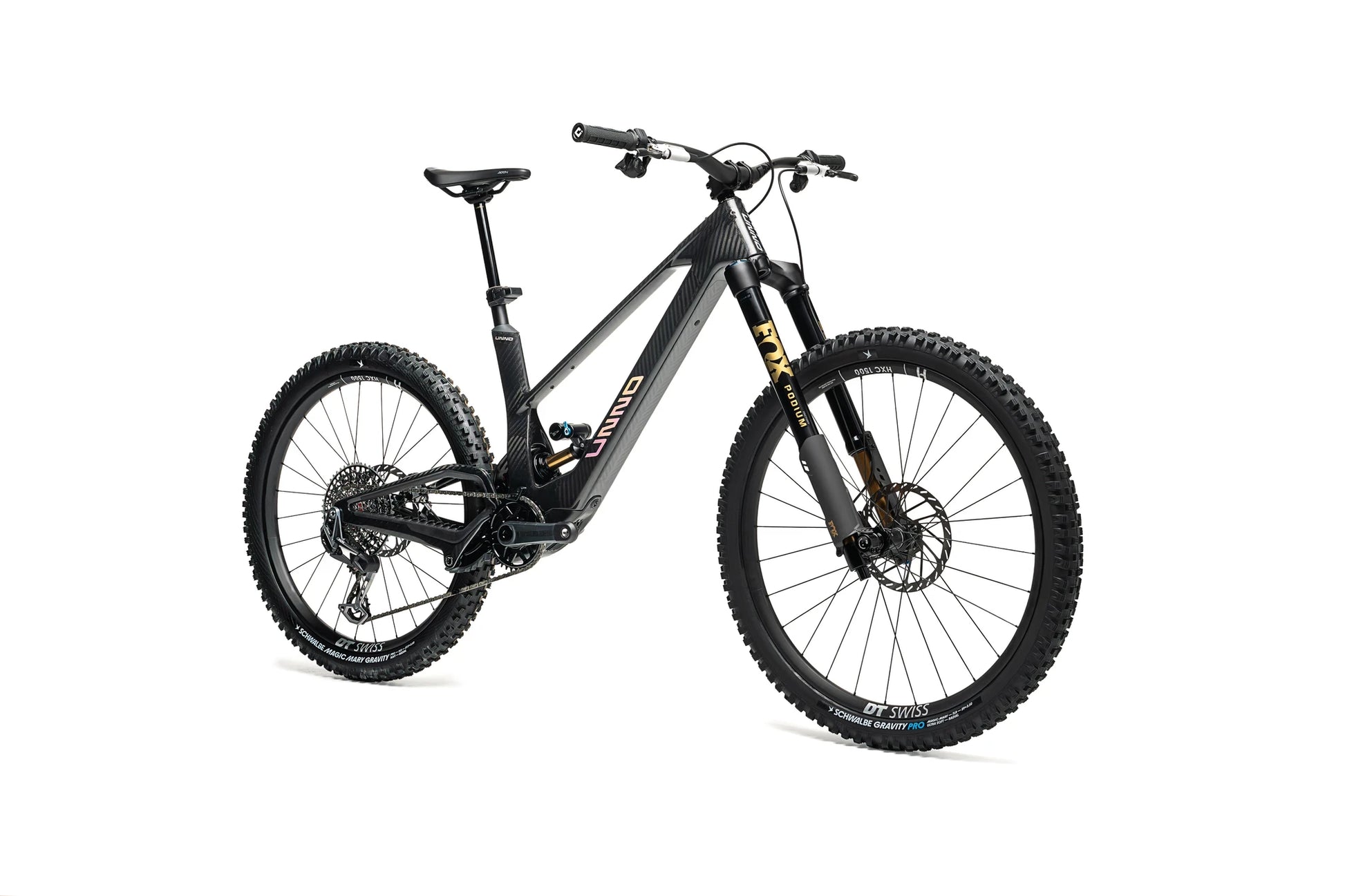

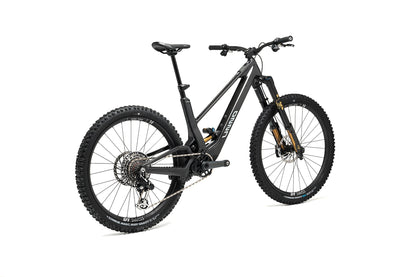

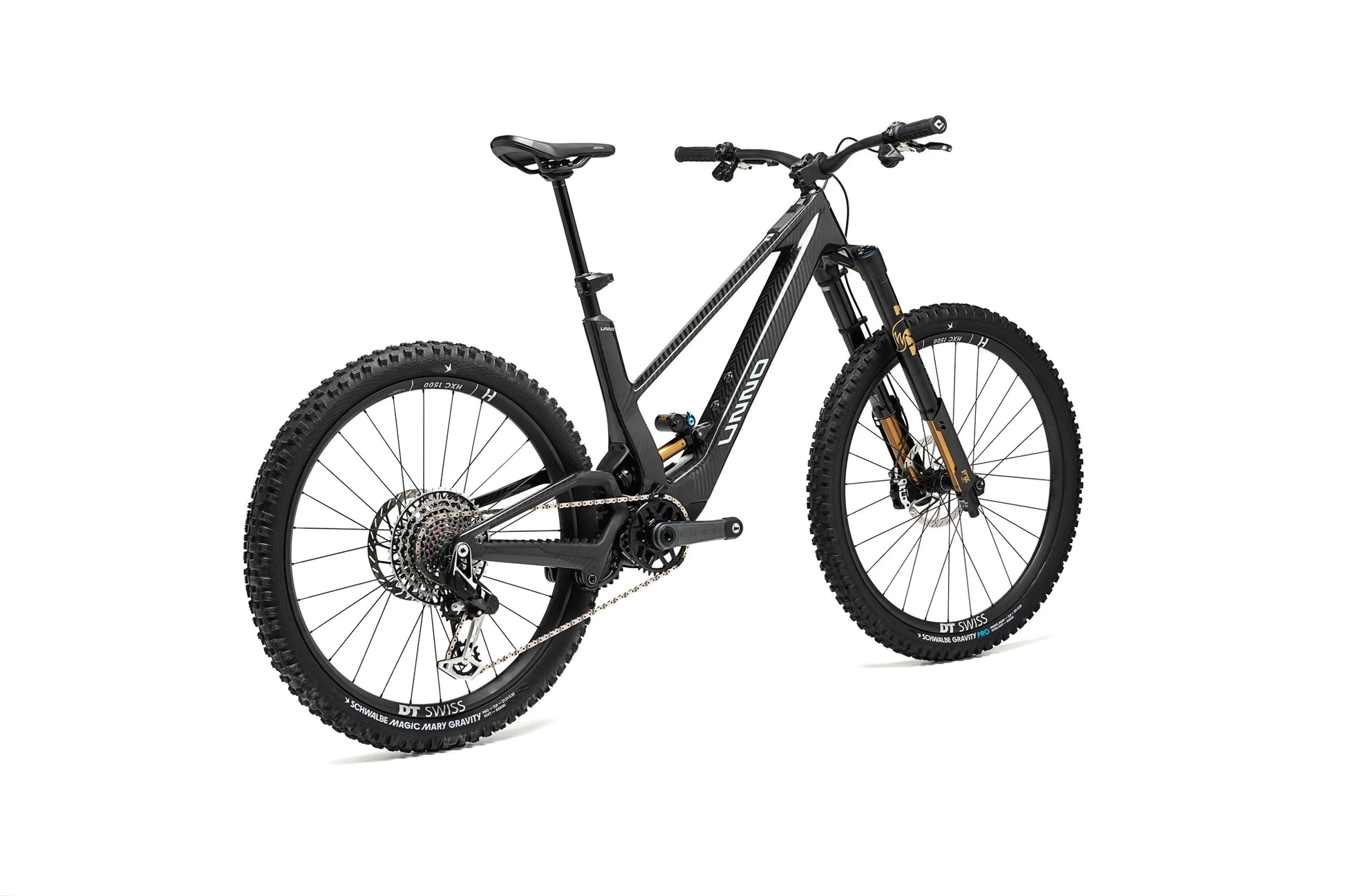

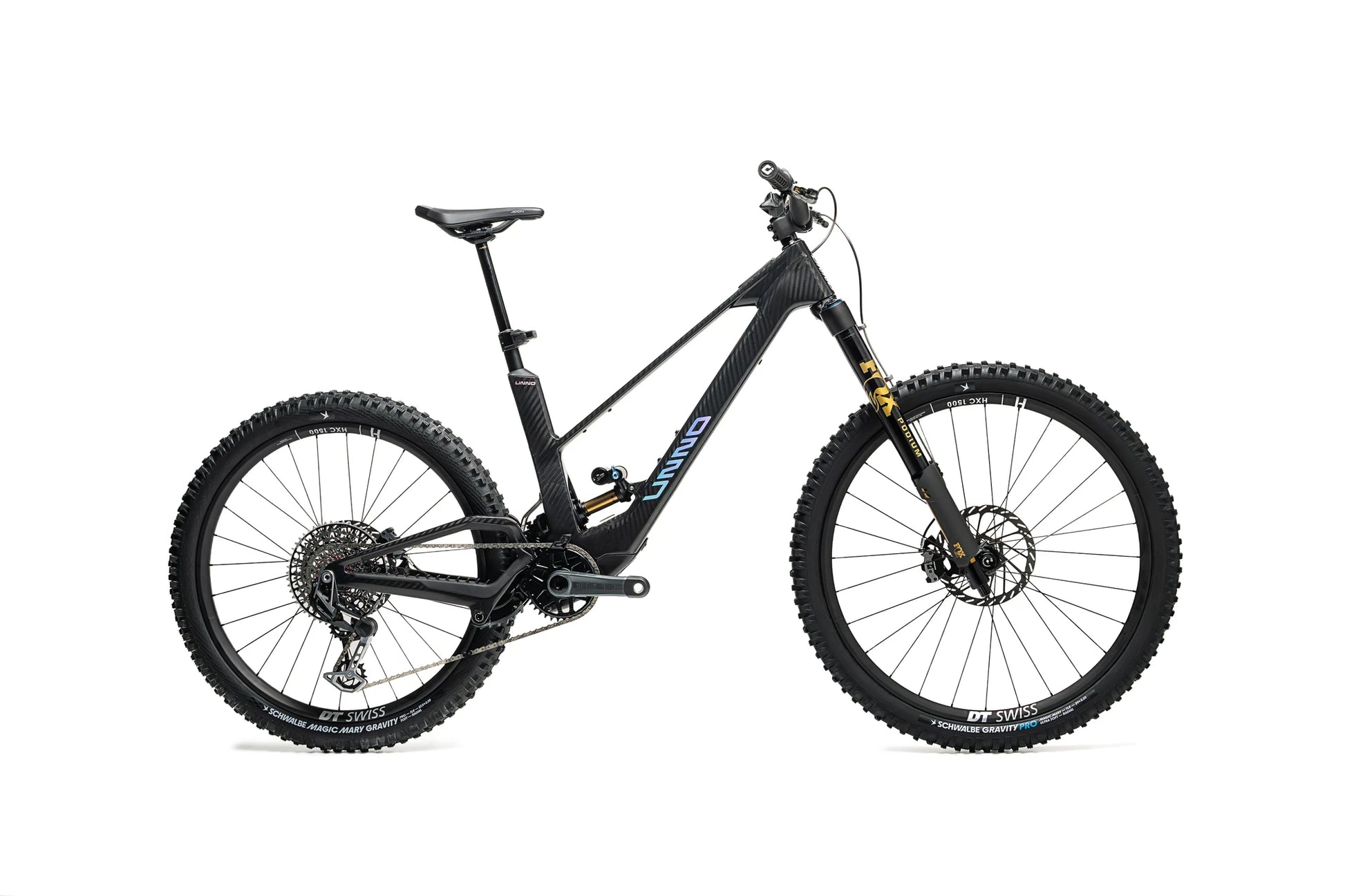

Unno MITH Factory

Unno MITH Factory

£13,295.00
£13,295.00
Sale Call for availability
Tax included.
Size

CALL FOR AVAILABILITY

The MITH FACTORY is the purest expression of the platform. Powered by the Avinox M2S drive unit with 130Nm and an 800Wh battery, it delivers maximum performance with minimal compromise.



FOX 38 Factory suspension, SRAM Maven Ultimate brakes, a SRAM XX AXS T-Type drivetrain, and DT Swiss HXC 1500 carbon wheels come together in a build that’s precise, powerful, and ready to be pushed.



For riders who don’t want to think about limits, just find them.

Frame

FRAME

MITH FACTORY

T700/T1000 Carbon fiber monocoque with FACTORY twill carbon weave finish and virtual pivot suspension.

Headset

CANE CREEK

FORTY Series (IS41-42/28.6 - IS52/40)

Drivetrain

Motor

Avinox

AVINOX M2S (2,60kg Drive unit with 250W rated power)

Regular modes max: 1300 W / 130 Nm

Boost mode max: 1300 W / 150 Nm

Battery

Avinox FS800 Wh

Integrated 3.74kg battery, delivered with 508W 12A fast charger

0 to 75% in 90min

0 to 100% in 2h 25min

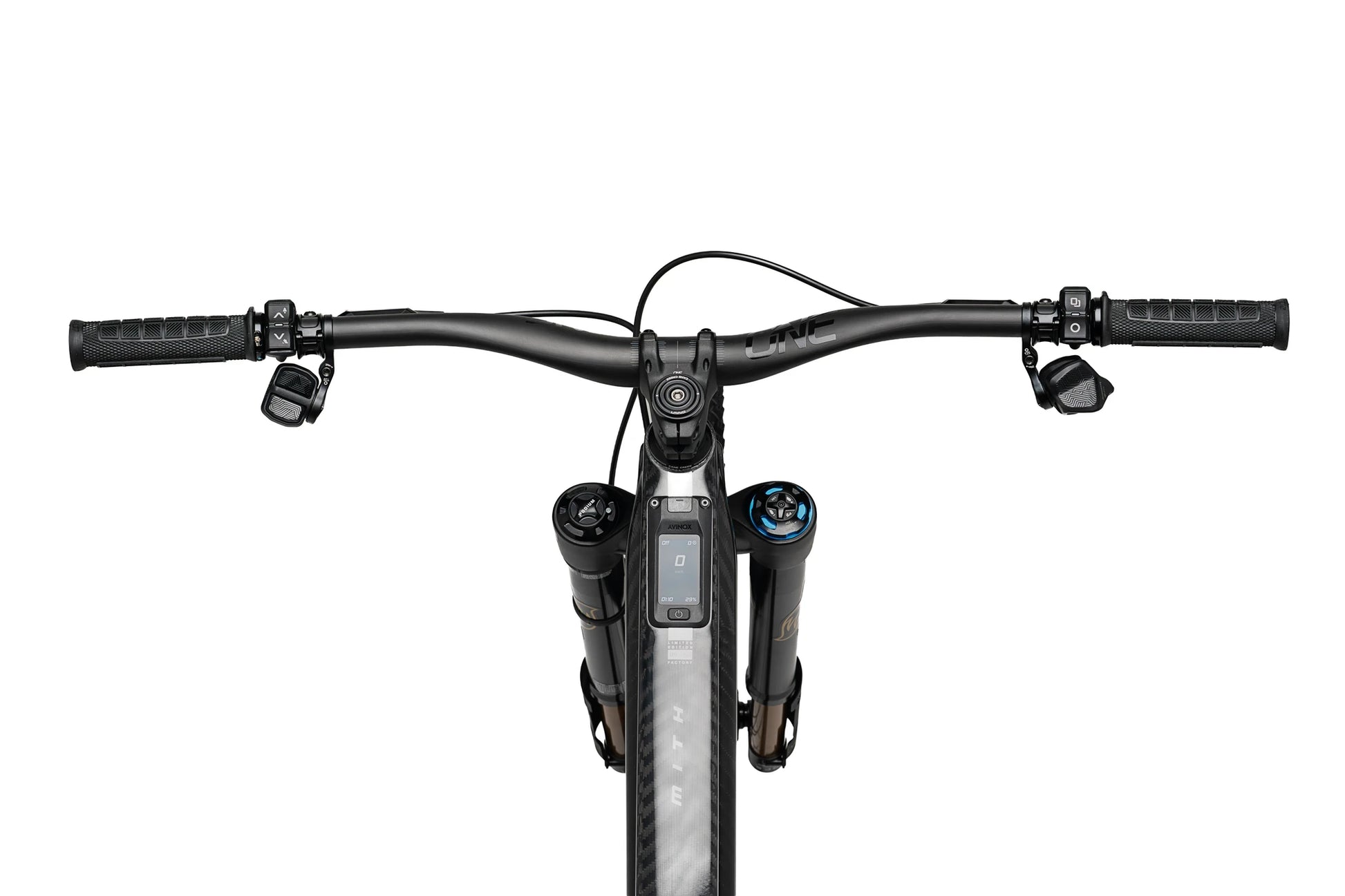

Display

Avinox DP100

2" OLED smart multi-function touchscreen with 800 nits and 326 ppi

Controller

Avinox BC100

Wireless Controller with Bluetooth Connectivity

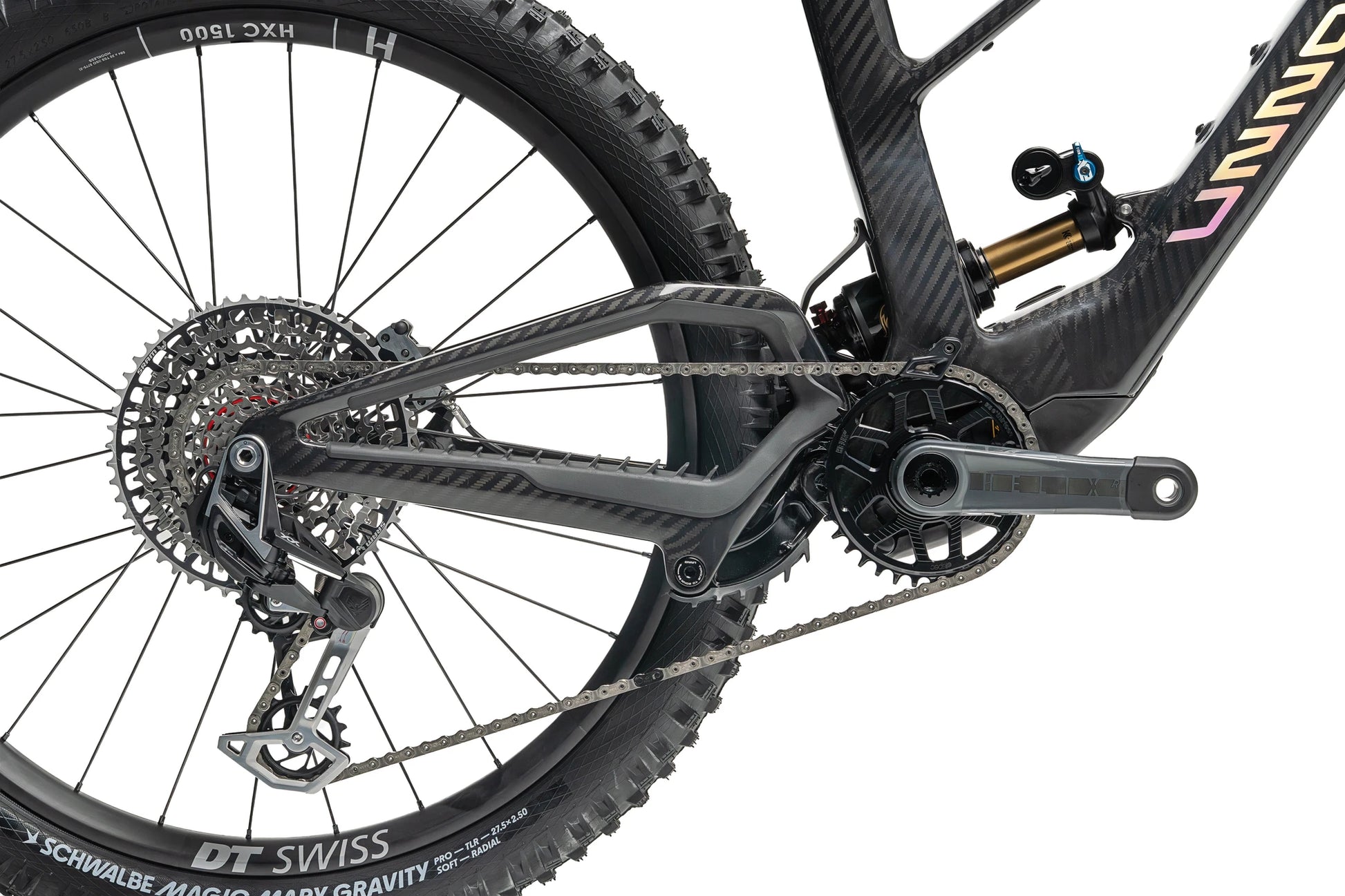

Transmission

Derailleur

SRAM XX EAGLE AXS

AXS Wireless - T-Type - 12 speed

Cassette

SRAM XX

XS-1297 T-TYPE 10-52

Chain

SRAM XX

T-Type 120 link

Controller

SRAM AXS

Left Controller: AXS Pod Control

Right Controller: AXS Pod ROCKR Control

Crankset

E13 HELIX RACE CARBON E*SPEC

155mm length x 26,5mm offset

Chainring

E13 HELIX RACE E*SPEC

36T 8mm offset 55 mm CL

Suspension

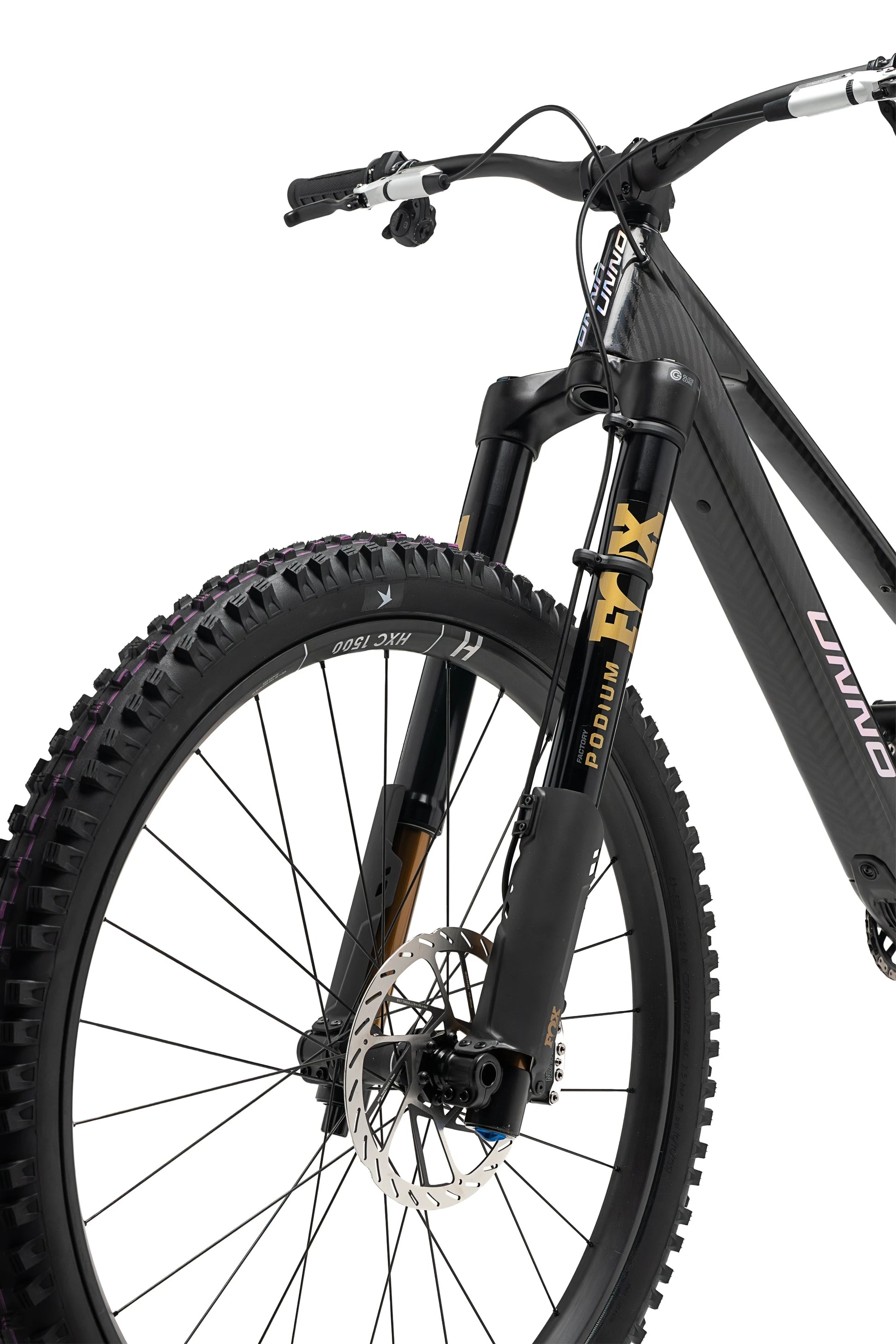

Fork

FOX PODIUM FACTORY

Kashima coating, Grip X2 damper. Adjustments: HSC, LSC, HSR, LSR. 44mm offset with 170mm of travel.

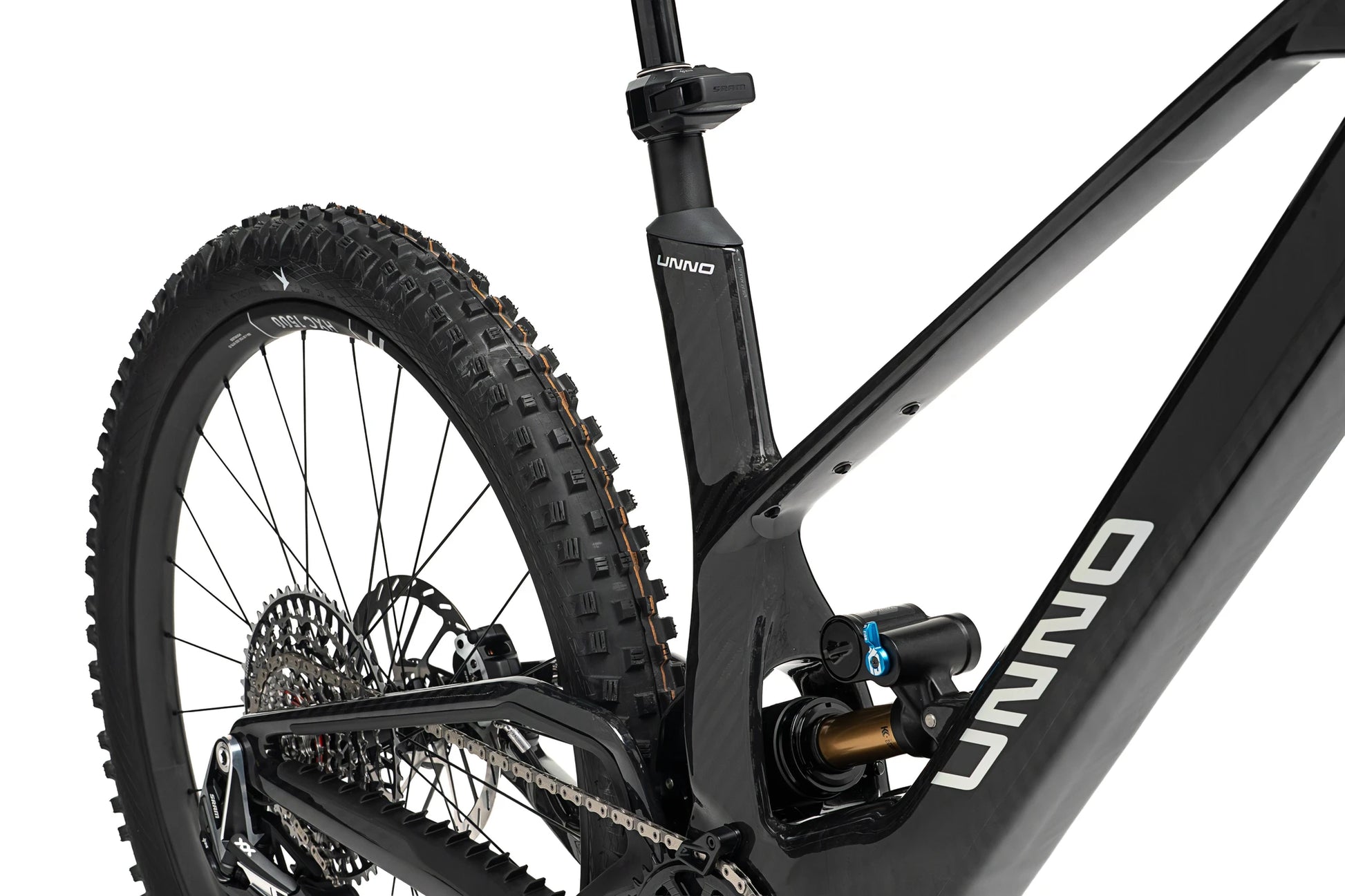

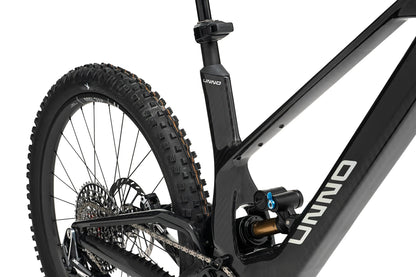

Shock

Fox Float X2 Factory

230x65mm. Kashima coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR. 160mm of travel, 230mm length and 65mm stroke.

Wheelset

Wheels

NEWMEN Phase 30 Carbon

Mullet 29" Front and 27.5" Rear.

Front Tyre

SCHWALBE Magic Mary

Ultra Soft Gravity Pro, TLR, 29” x 2.5”

Rear tyre

SCHWALBE Magic Mary

Soft Evo Gravity Pro, TLR, 27.5” x 2.5”

Brakeset

Brakes

SRAM MAVEN ULTIMATE

Carbon Lever

Rotors

SRAM

SRAM HS2 6-BOLT TYPE 200mm

Cockpit and seat

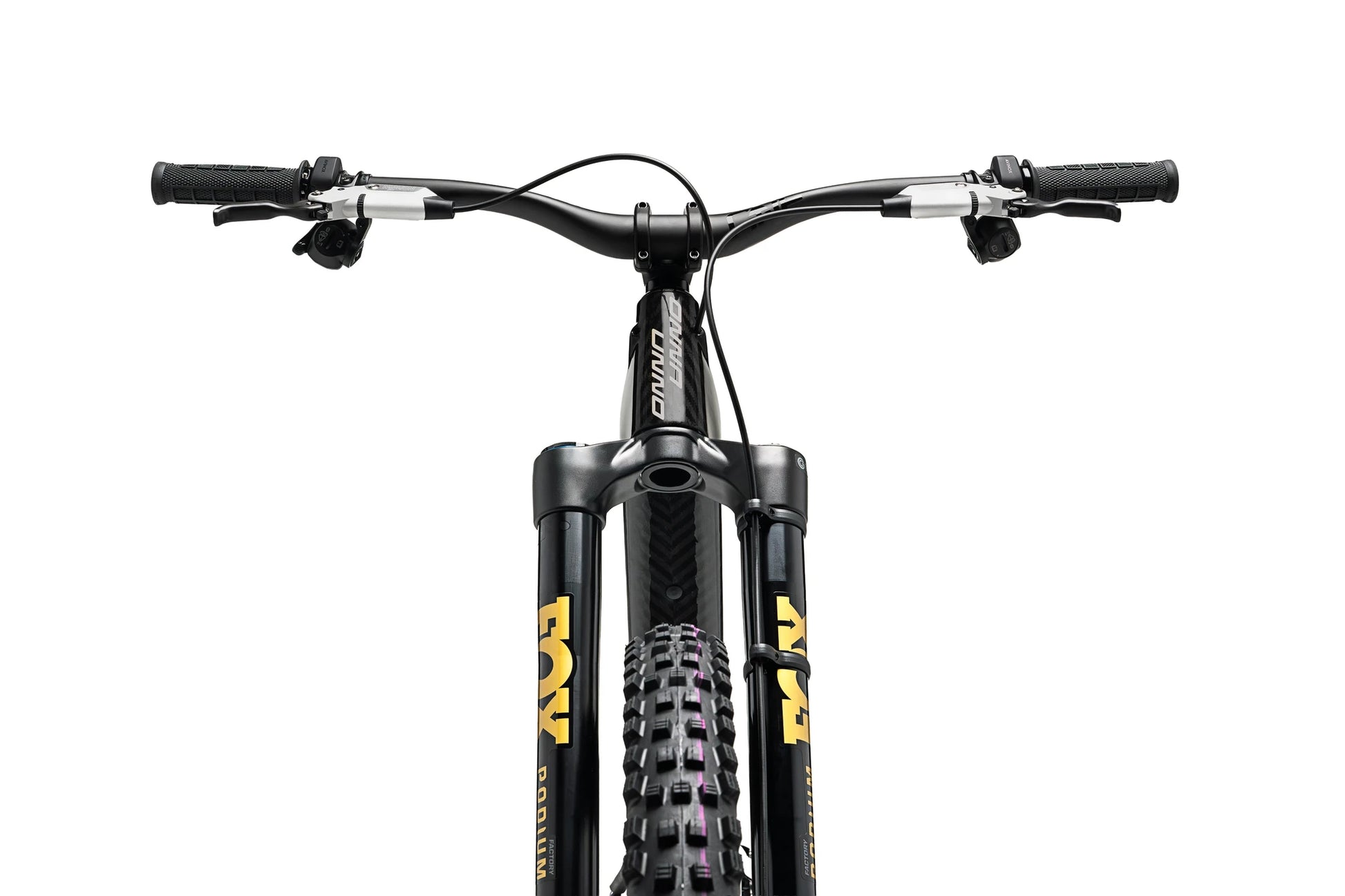

Cockpit

ONE UP V2

Carbon handlebar, 35mm diameter, 800mm length, 35mm rise and ONE UP FORGED 42mm stem

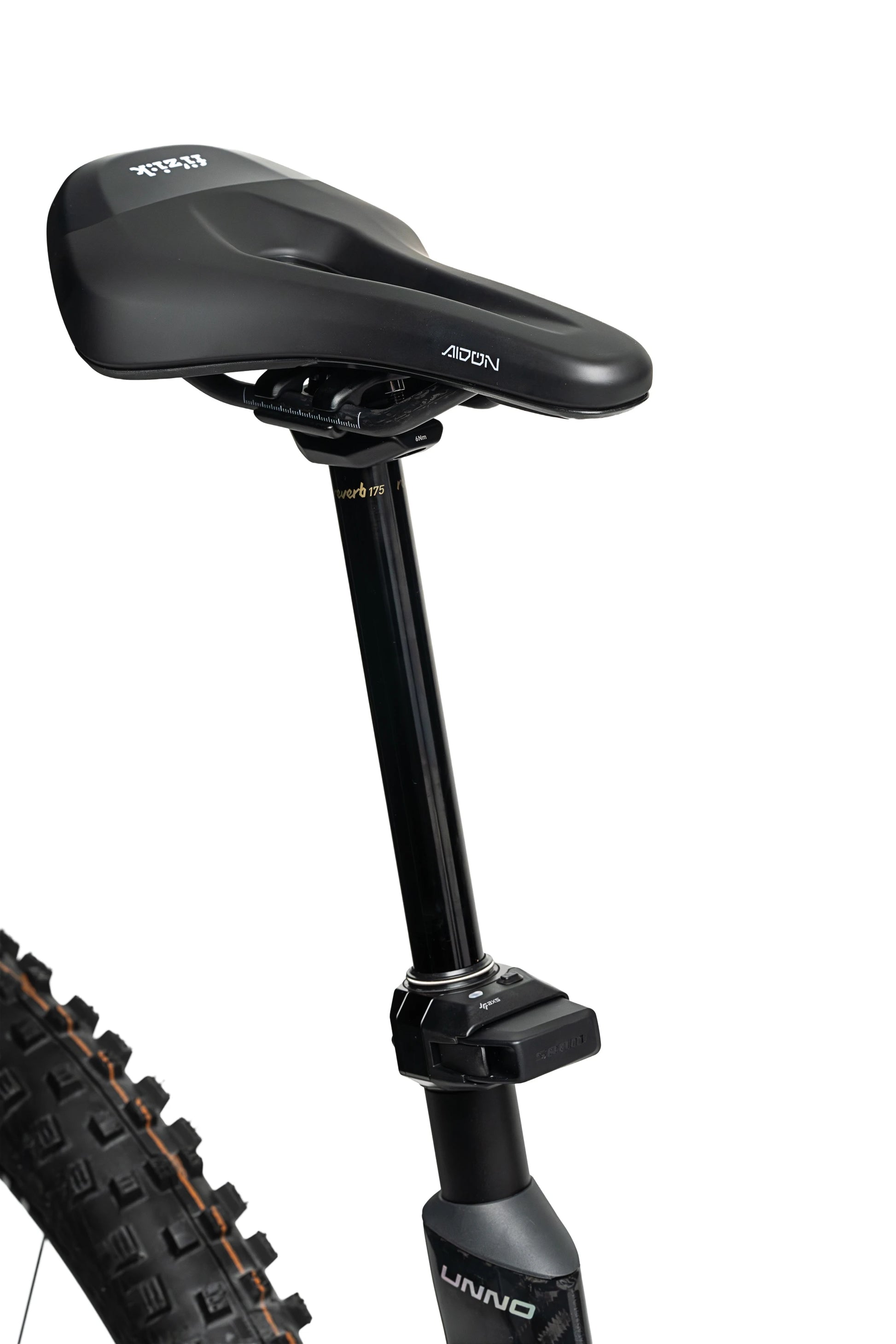

Dropper

ROCKSHOX Reverb AXS

31.6mm diameter with Travel of: 150 mm (S1), 175 mm (S2), 200 mm (S3)

Saddle

FIZIK Terra Aidon X1

145mm
