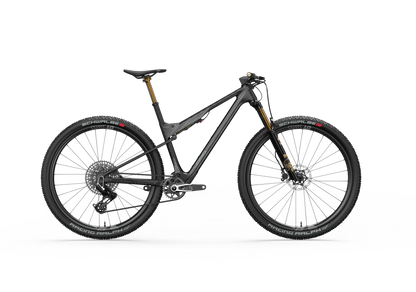

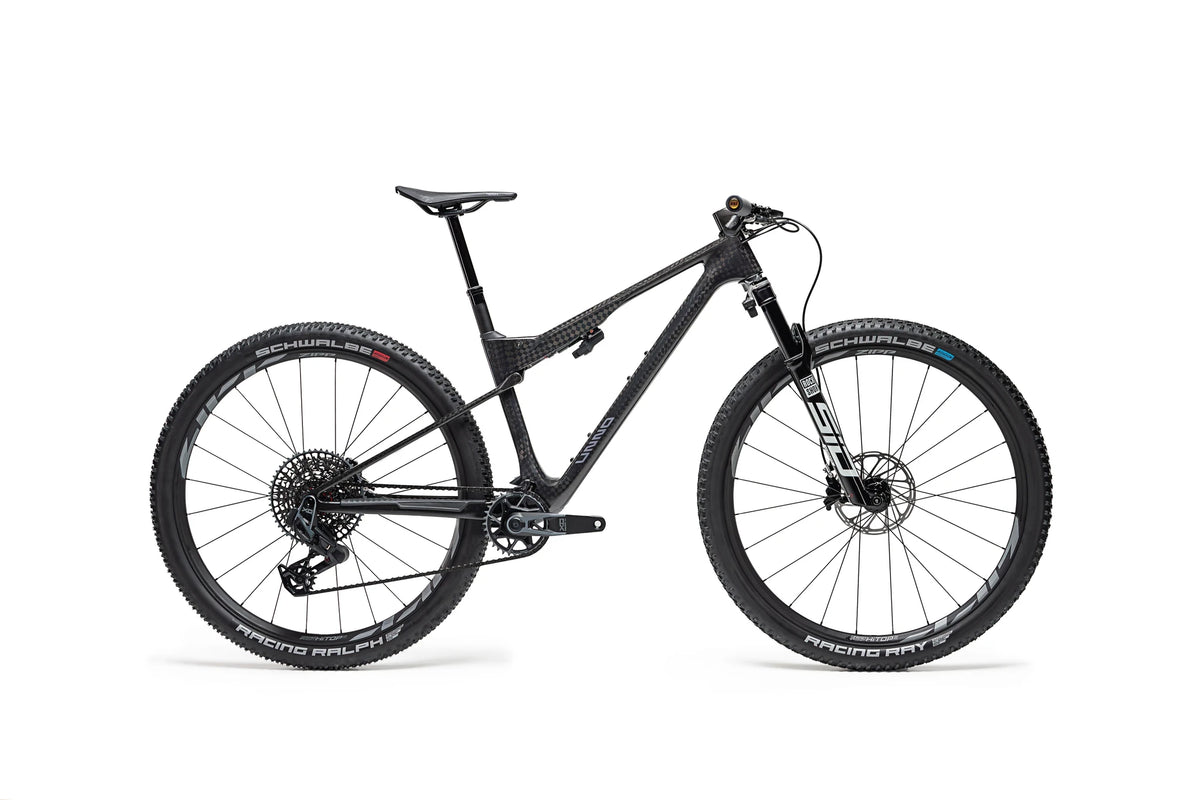

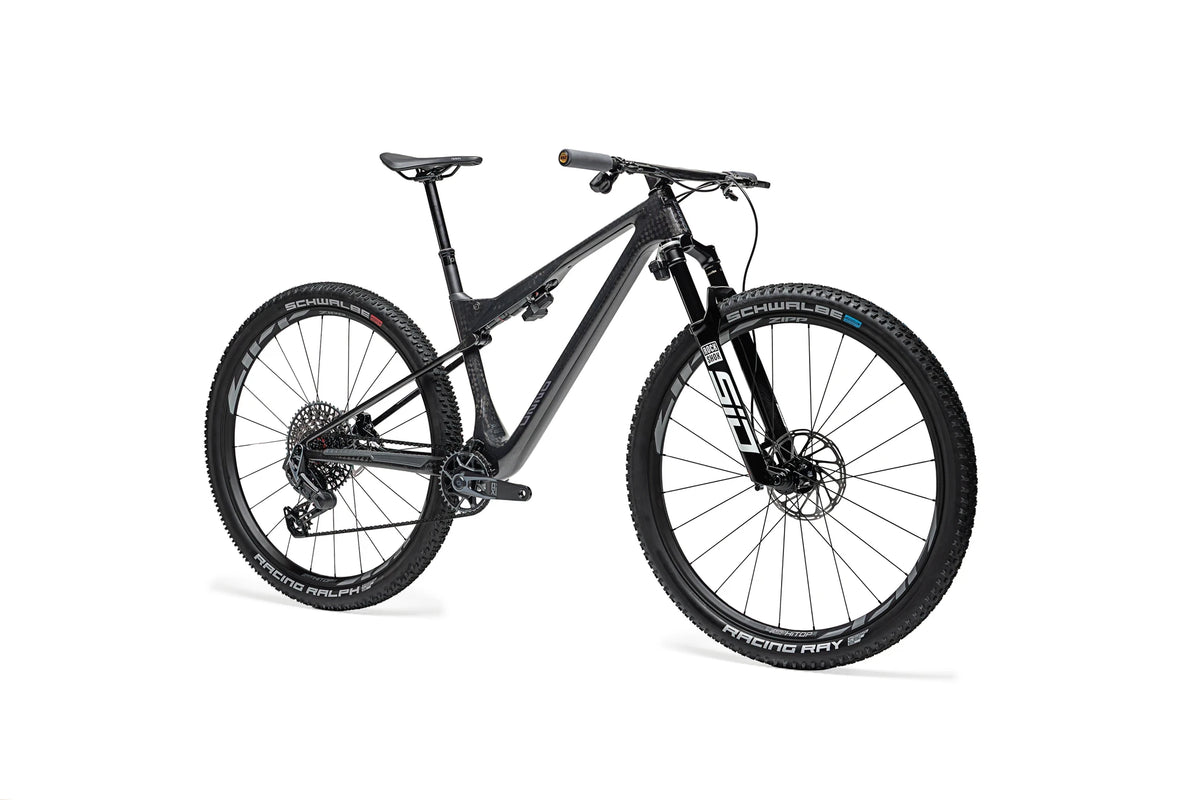

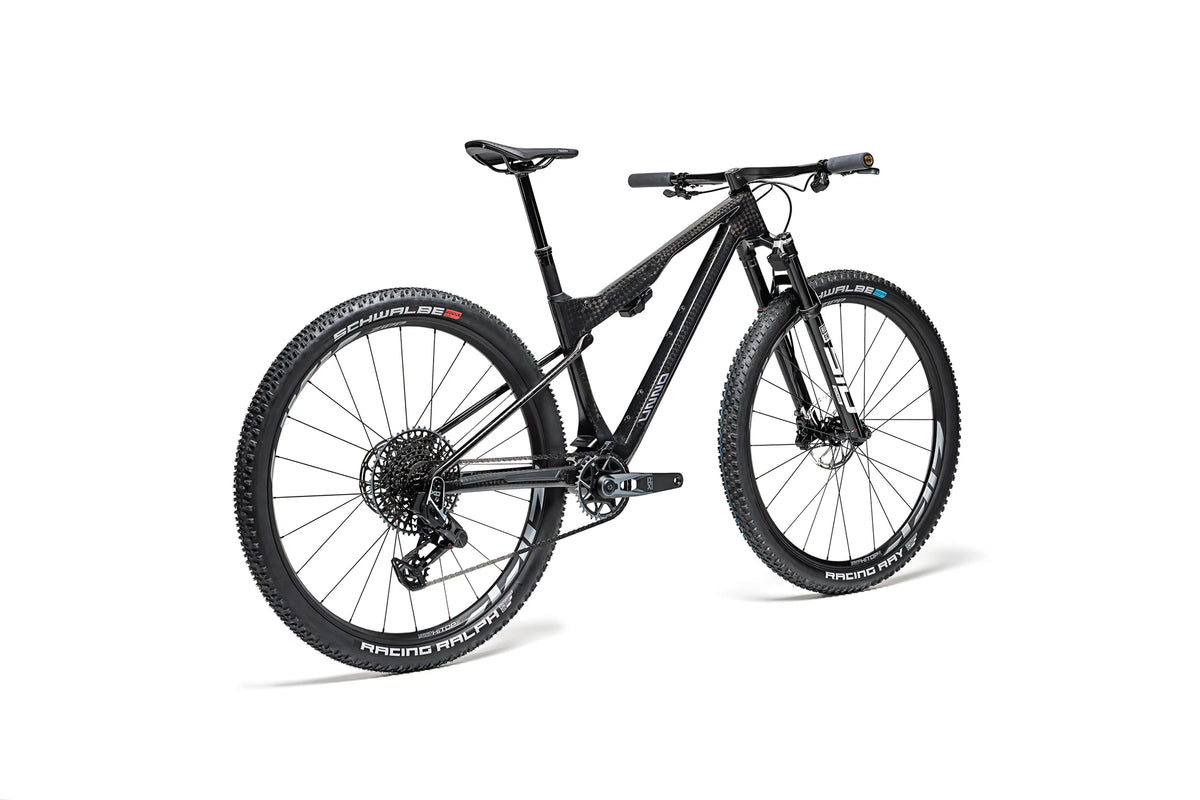

UNNO Horn Pro

Frame
Model: HORN
Constructed with T800 and T1100 carbon fiber, the frame features 110mm of rear travel via the proprietary UNNO XC suspension platform. Designed with aggressive race-focused geometry, it includes a threaded bottom bracket, internal cable routing, integrated rear fender, seat clamp, and chain guide. It supports 31.6mm seatposts and has a 12x148mm UDH-compatible rear axle spacing.

Headset
Model: ACROS Block-Lock
135º steering limit, includes CANE CREEK spacers.

Bottom Bracket
Model: SRAM DUB BSA
BSA MTB73 Wide compatible.

Suspension

• Fork: FOX 34 SC Factory, 120mm travel, 44mm offset, 15x110mm Boost axle.

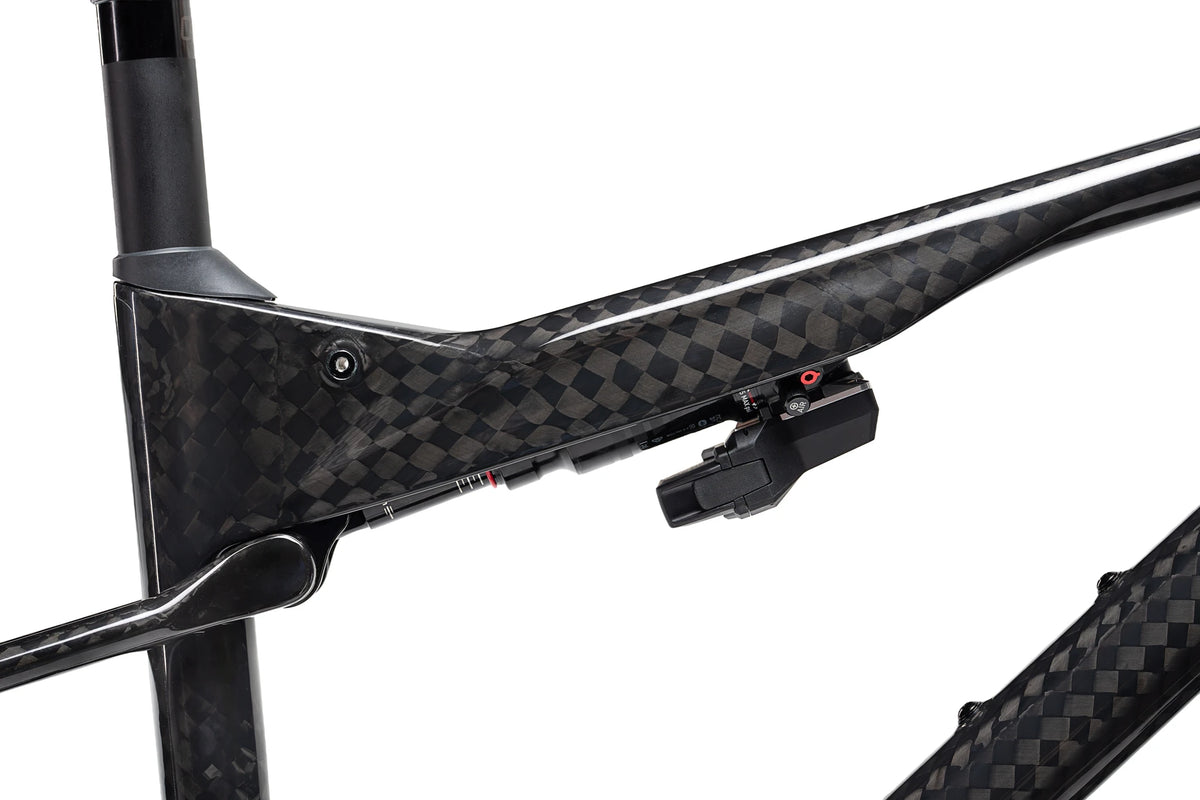

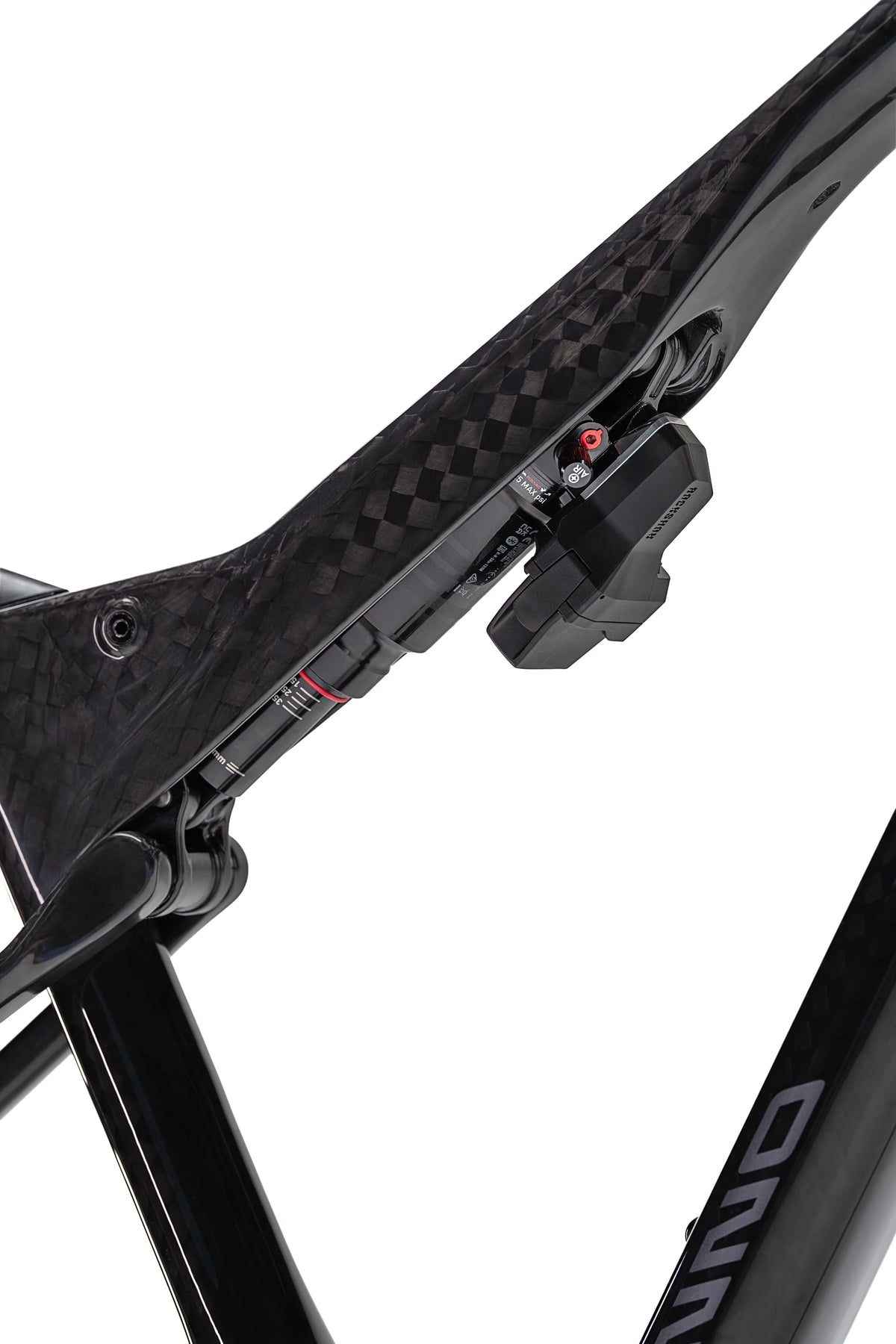

• Rear Shock: FOX Float SL Factory, 190x37.5mm.

• Lockout: FOX 3-position remote.

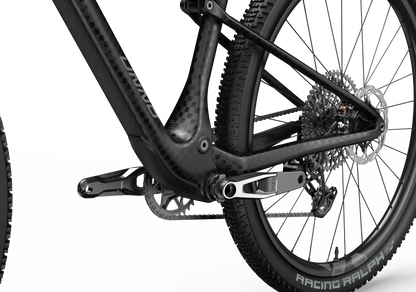

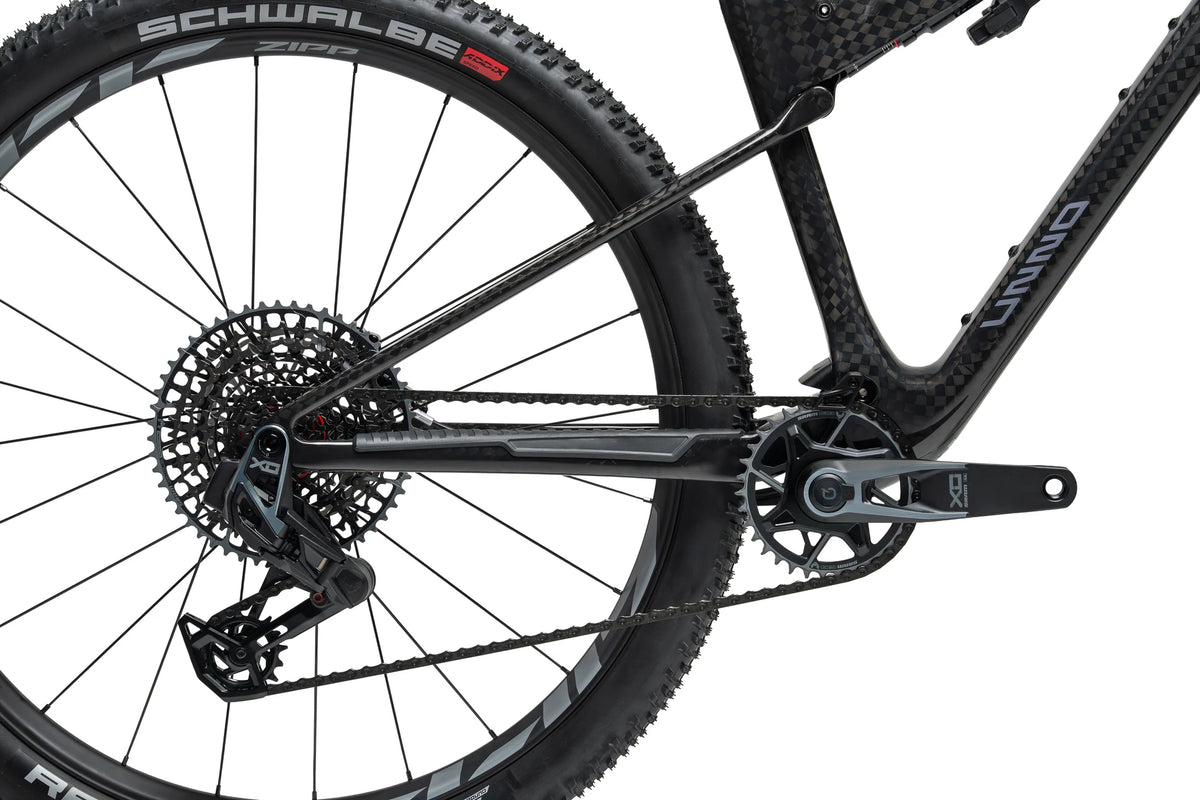

Drivetrain

• Rear Derailleur: SRAM X0 Eagle AXS T-Type

• Cassette: SRAM X0 XS-1295 T-Type, 10-52T

• Crankset: SRAM X0 Eagle, 170mm

• Chain: SRAM X0 T-Type, 118 links

• Shifter: SRAM AXS Pod with discrete clamp

• Chainring: SRAM 34T

Wheelset

• Wheels: DT Swiss XRC 1700 Carbon, 29", Centerlock

• Front Tire: Schwalbe Racing Ralph Evo, Super Ground, TLE, 29" x 2.35"

• Rear Tire: Schwalbe Racing Ralph Evo, Super Ground, TLE, 29" x 2.35"

Brakes

• Brakeset: FORMULA Cura X

• Rotors: 160mm (Front and Rear)

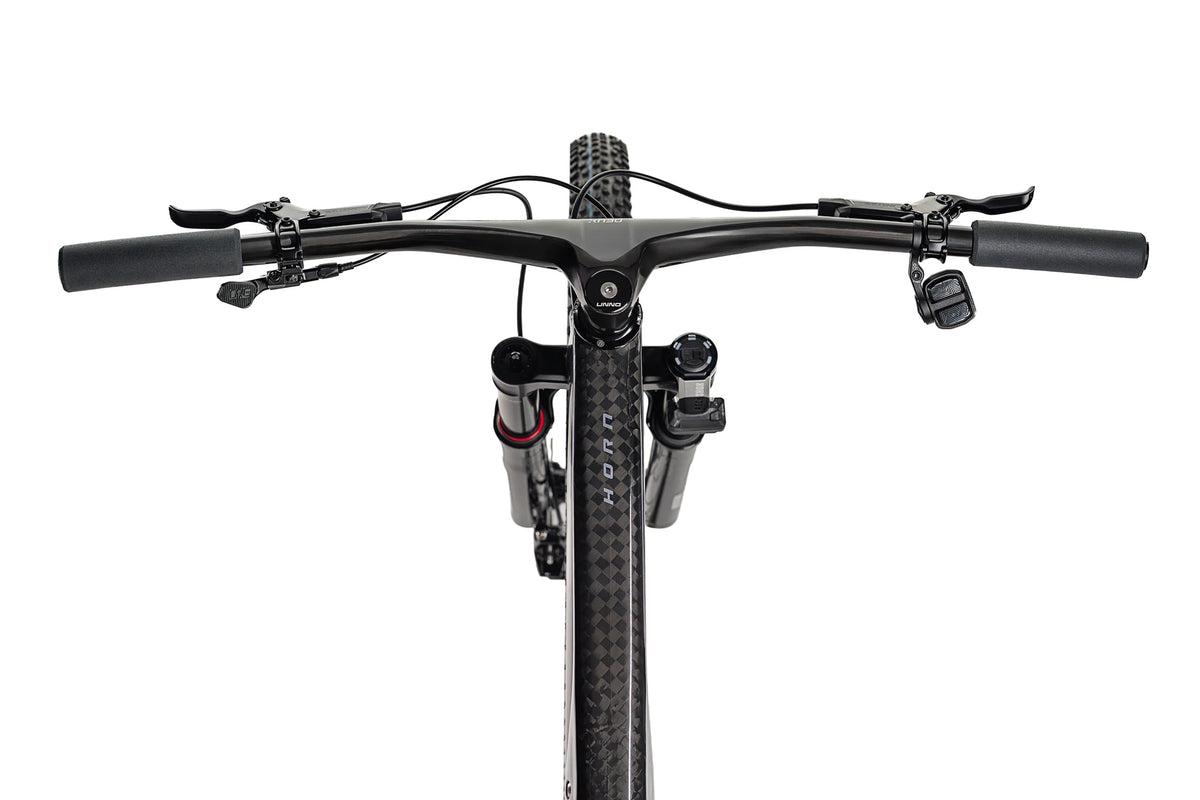

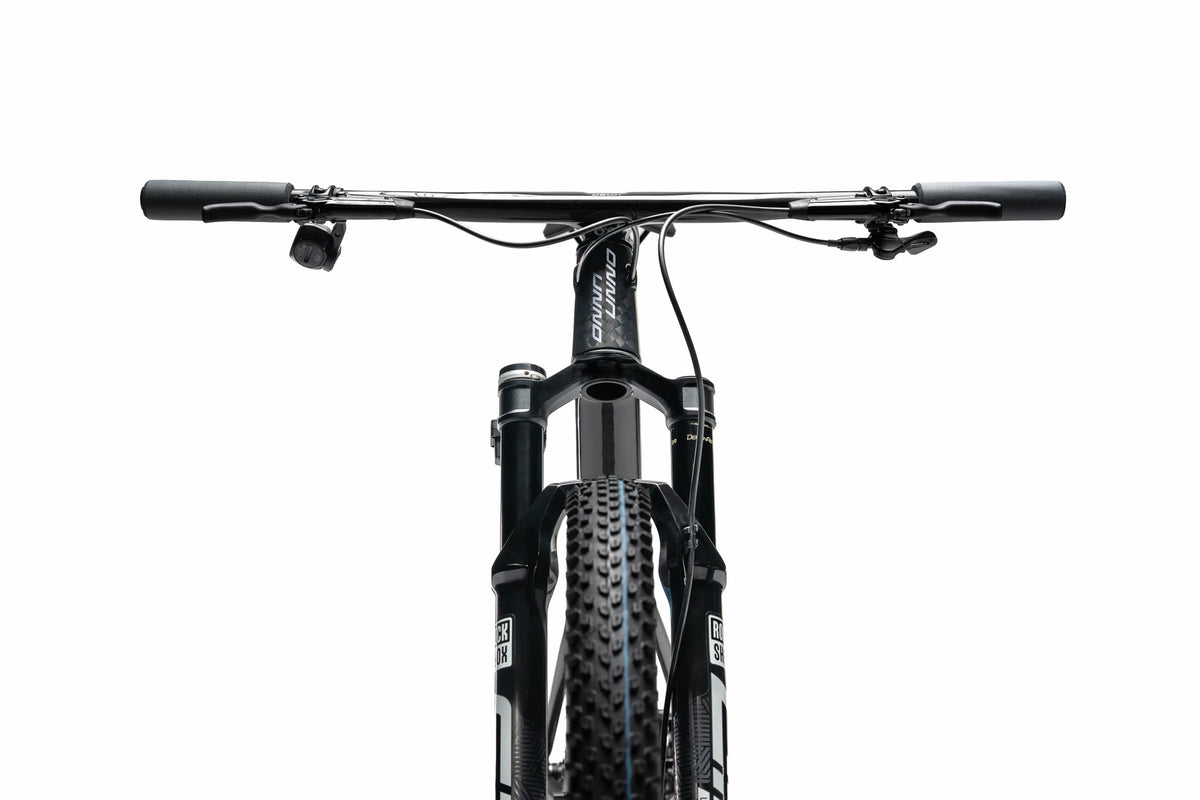

Cockpit, Saddle & Dropper Post

• Handlebar: DEUX XC integrated bar/stem combo – 760mm width, 60mm stem length

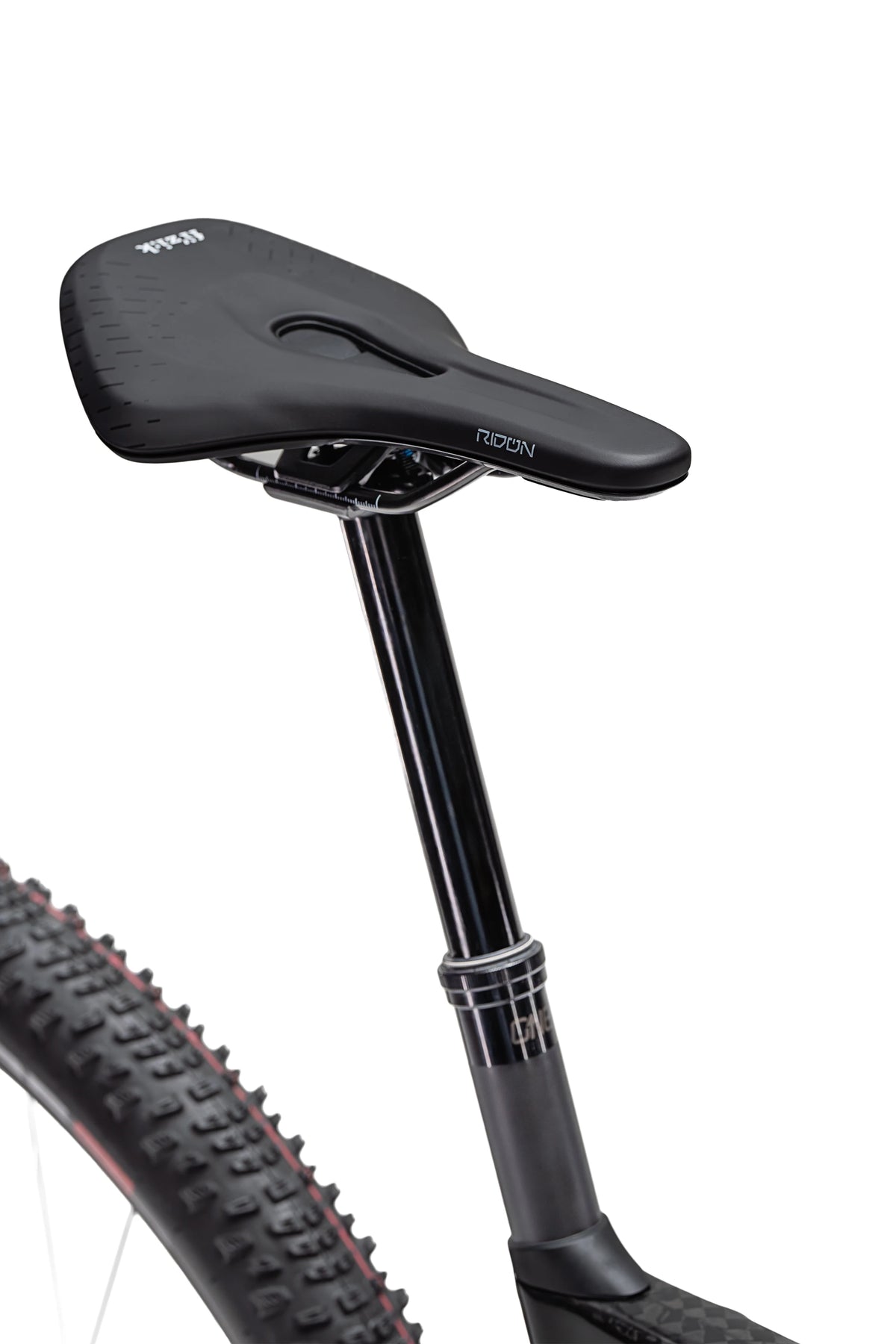

• Saddle: FIZIK Terra Ridon X5

• Dropper Post: FOX Transfer, 31.6mm diameter, 125mm travel
