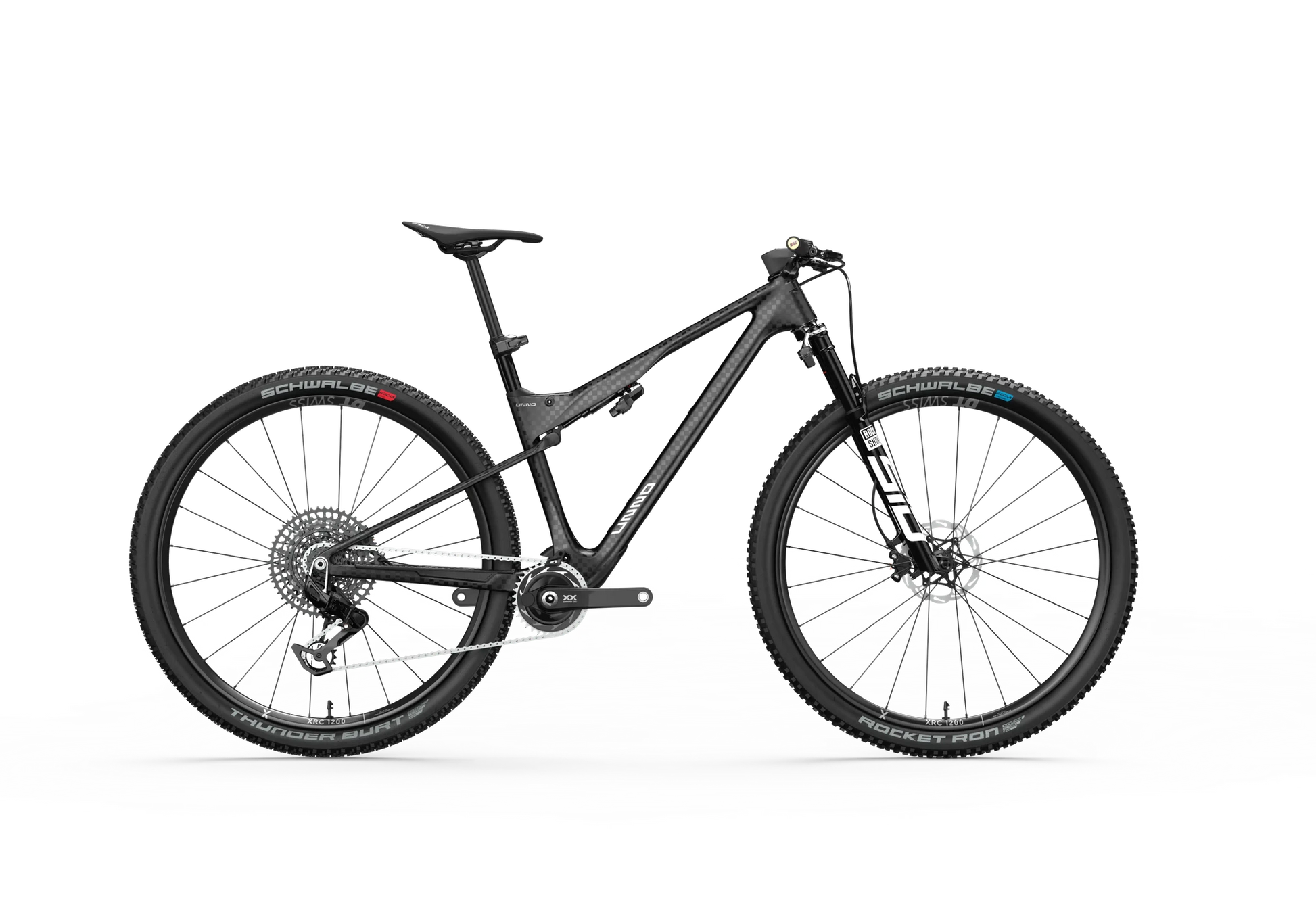

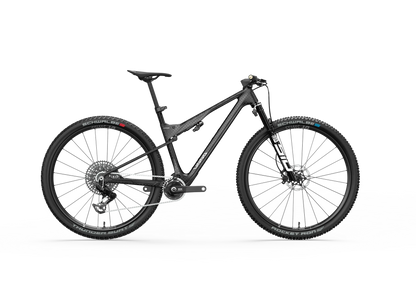

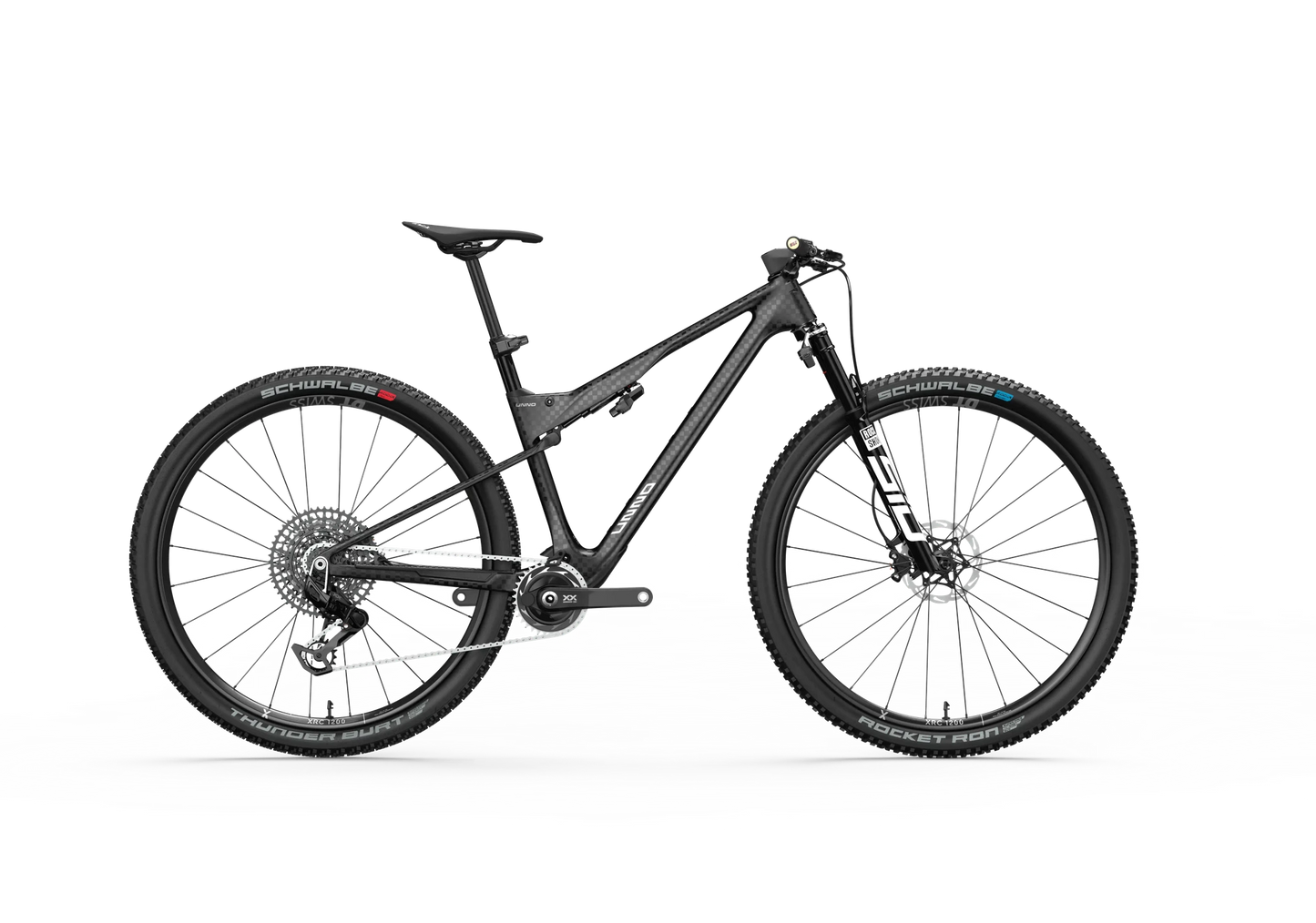

UNNO Horn Factory FA

Frame

Model: HORN
Crafted from high-grade T800 and T1100 carbon fiber, the frame offers 110mm of rear travel via the UNNO XC suspension platform. It features an aggressive race-oriented geometry, threaded bottom bracket shell, and compatibility with 31.6mm seatposts. Rear axle spacing is 12x148mm (Boost), UDH compatible. The frame includes internal cable routing, integrated rear fender, seat clamp, and chain guide.

Headset

Model: ACROS Block-Lock
135º steering limiter, equipped with CANE CREEK spacers.

Bottom Bracket

Model: SRAM DUB BSA
Standard: BSA MTB73 Wide

Suspension

• Fork:
  ROCKSHOX SID SL Ultimate Flight Attendant
  110mm travel, Flight Attendant electronic damper system, 29” Boost™

• Rear Shock:
  ROCKSHOX SIDLuxe Ultimate Flight Attendant
  110mm travel, 190x37.5mm, Flight Attendant integration

Transmission

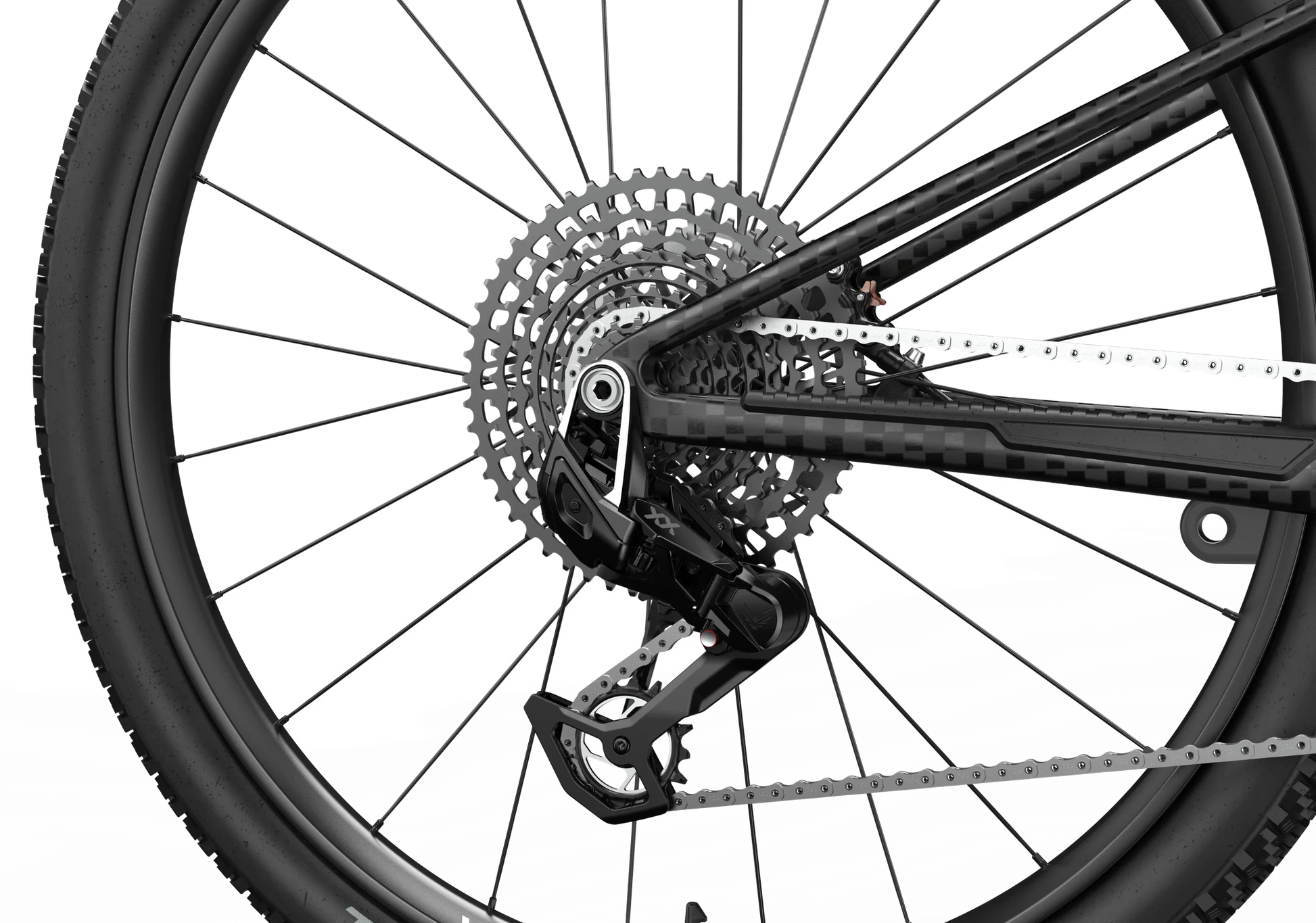

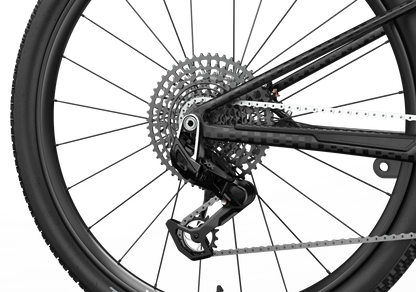

• Derailleur:
  SRAM XX SL Eagle AXS T-Type (12-speed)

• Controller:
  SRAM AXS Pod
  Mounted with Discrete Clamp

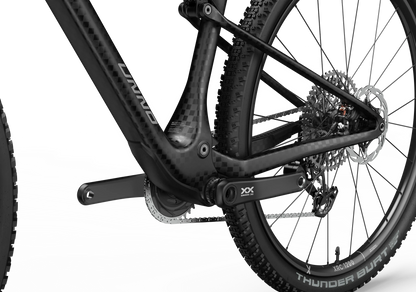

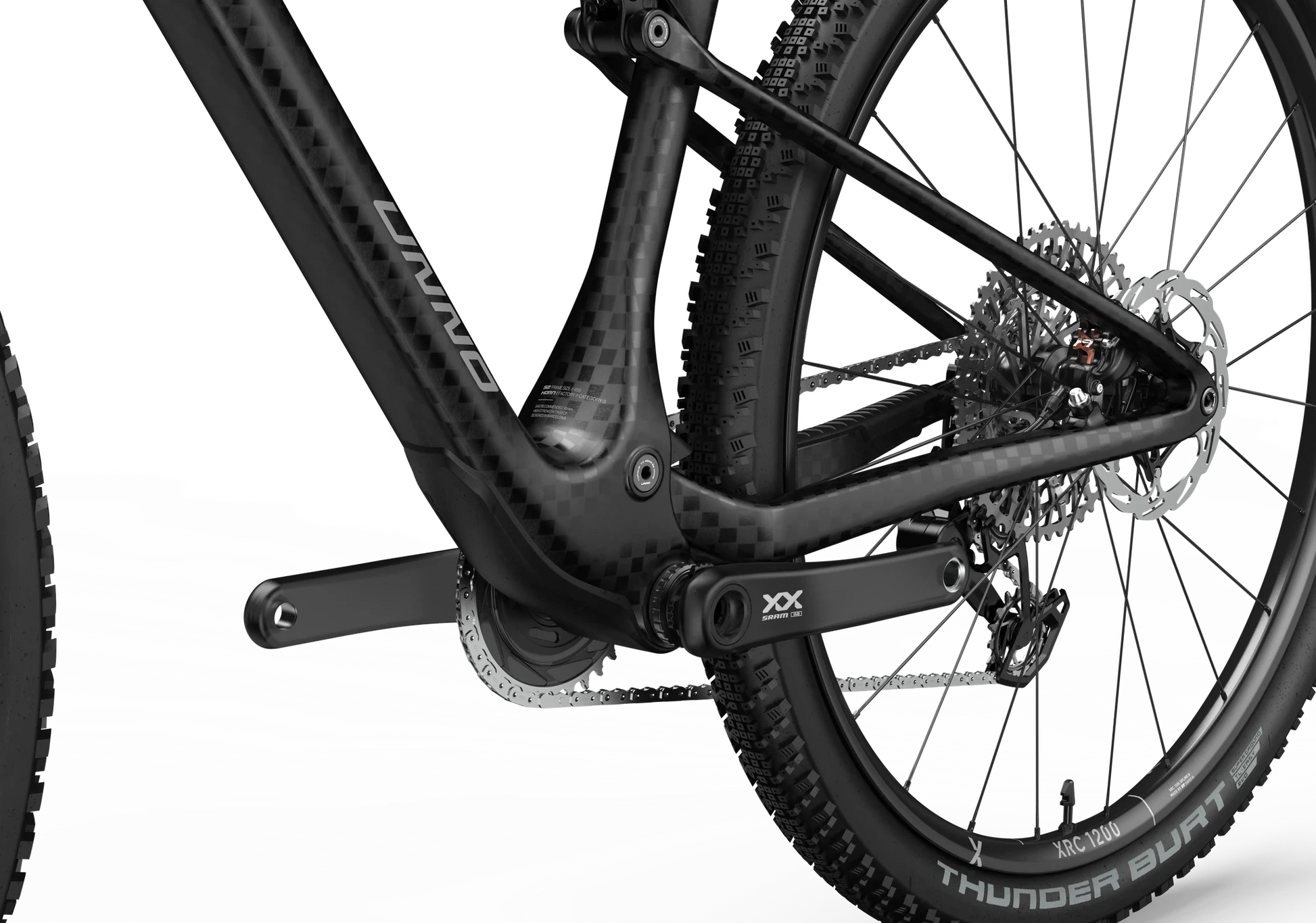

• Crankset:
  SRAM XX SL Eagle
  170mm arms, integrated Spider Power Meter, Q-factor 174mm

• Cassette:
  SRAM XX SL XS-1299
  12-speed, 10-52T range

• Chain:
  SRAM XX SL T-Type
  118 links, Flat Top design, 12-speed

Wheelset

• Wheels:
  DT SWISS XRC 1200
  Carbon rims, 29", 30mm internal width, DT 180 hubs, Center Lock disc interface

• Front Tire:
  SCHWALBE Rocket Ron
  Evo, Super Ground, TLE, 29" x 2.25"

• Rear Tire:
  SCHWALBE Thunder Burt
  Evo, Super Ground, TLE, 29" x 2.25"

Brakes

• Brakes:
  FORMULA Cura X

• Rotors:
  FORMULA
  160mm (front and rear)

Cockpit, Saddle & Dropper

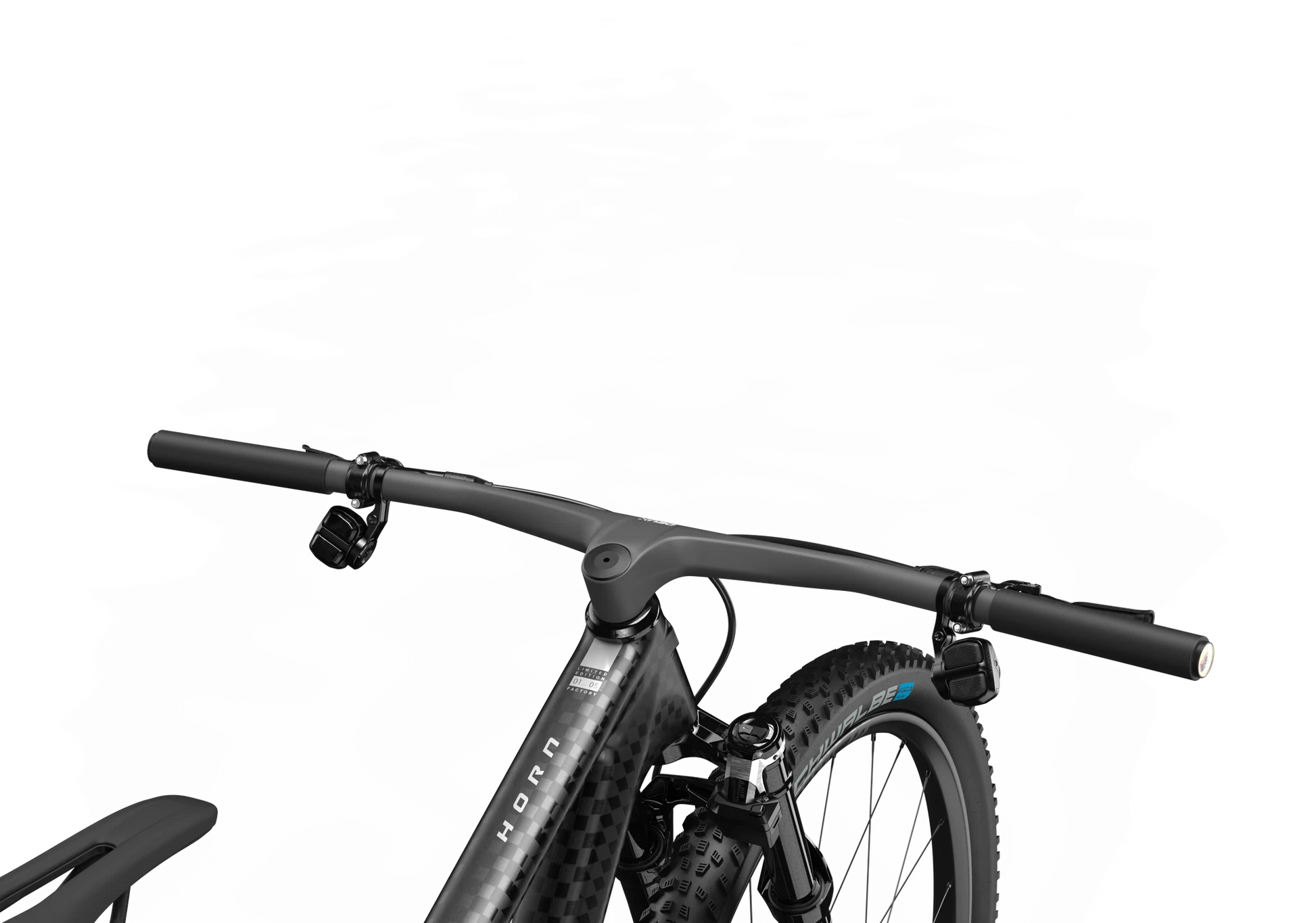

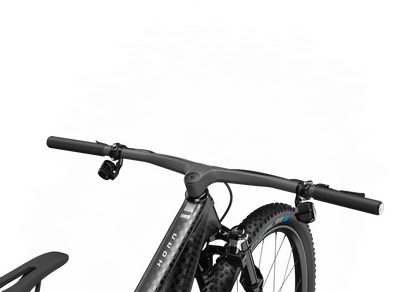

• Handlebar:
  DEUX XC
  Integrated bar/stem combo – 760mm width, 60mm stem length

• Saddle:
  FIZIK Vento Antares 00

• Dropper Post:
  ROCKSHOX Reverb AXS
  31.6mm diameter, 150mm travel (wireless)
