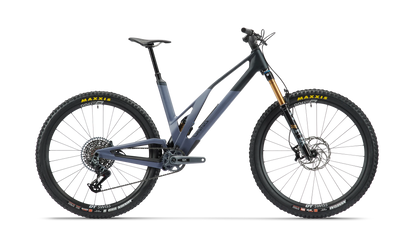

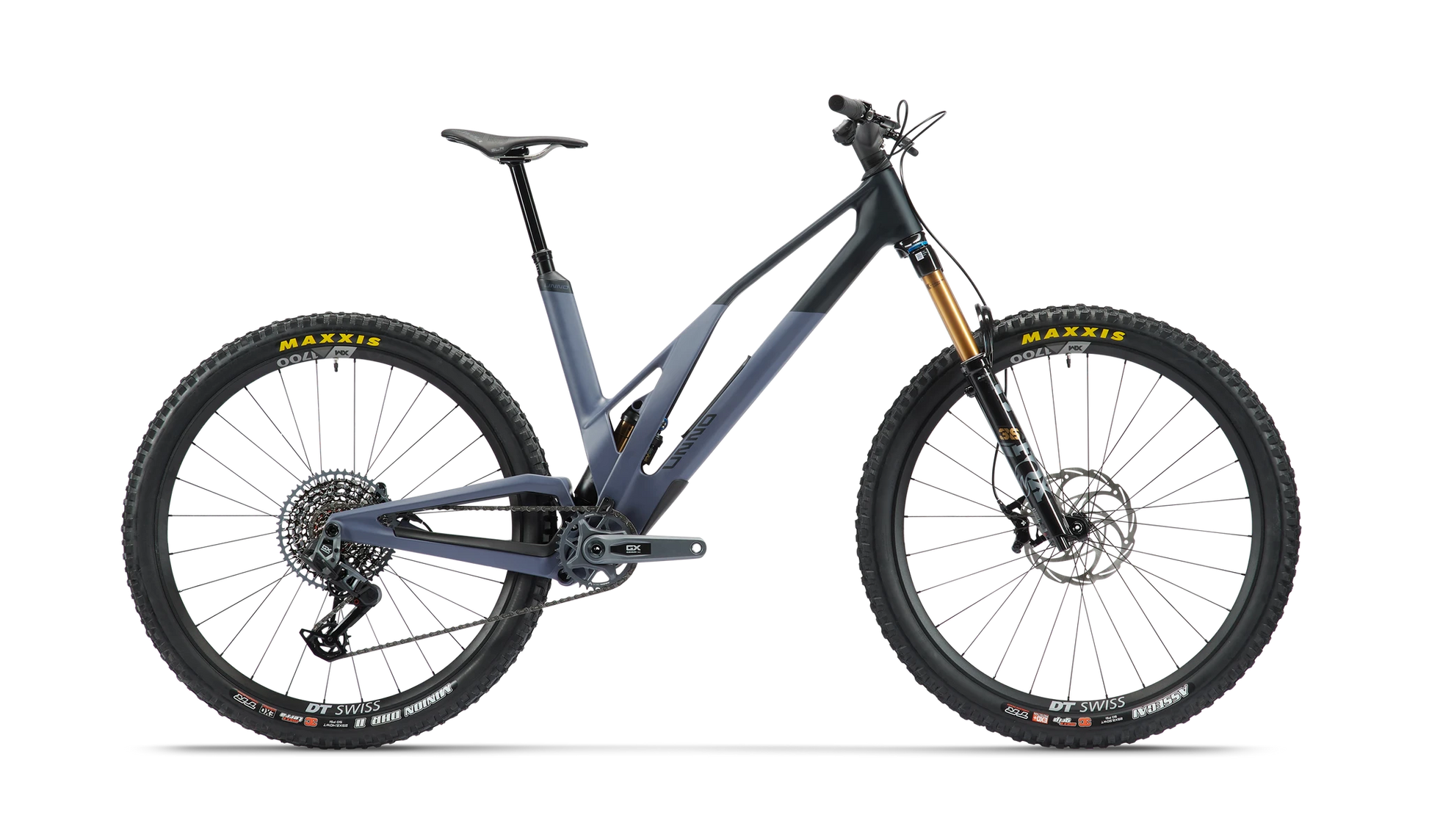

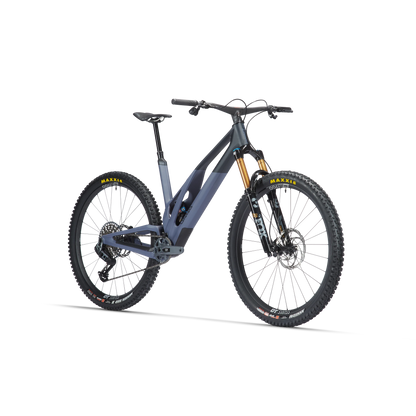

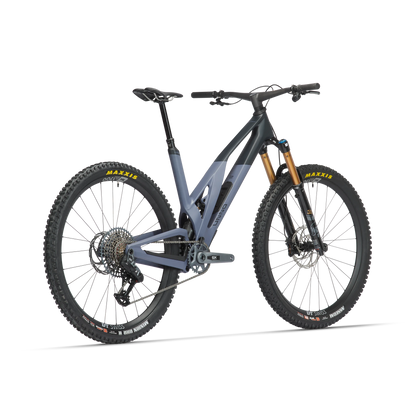

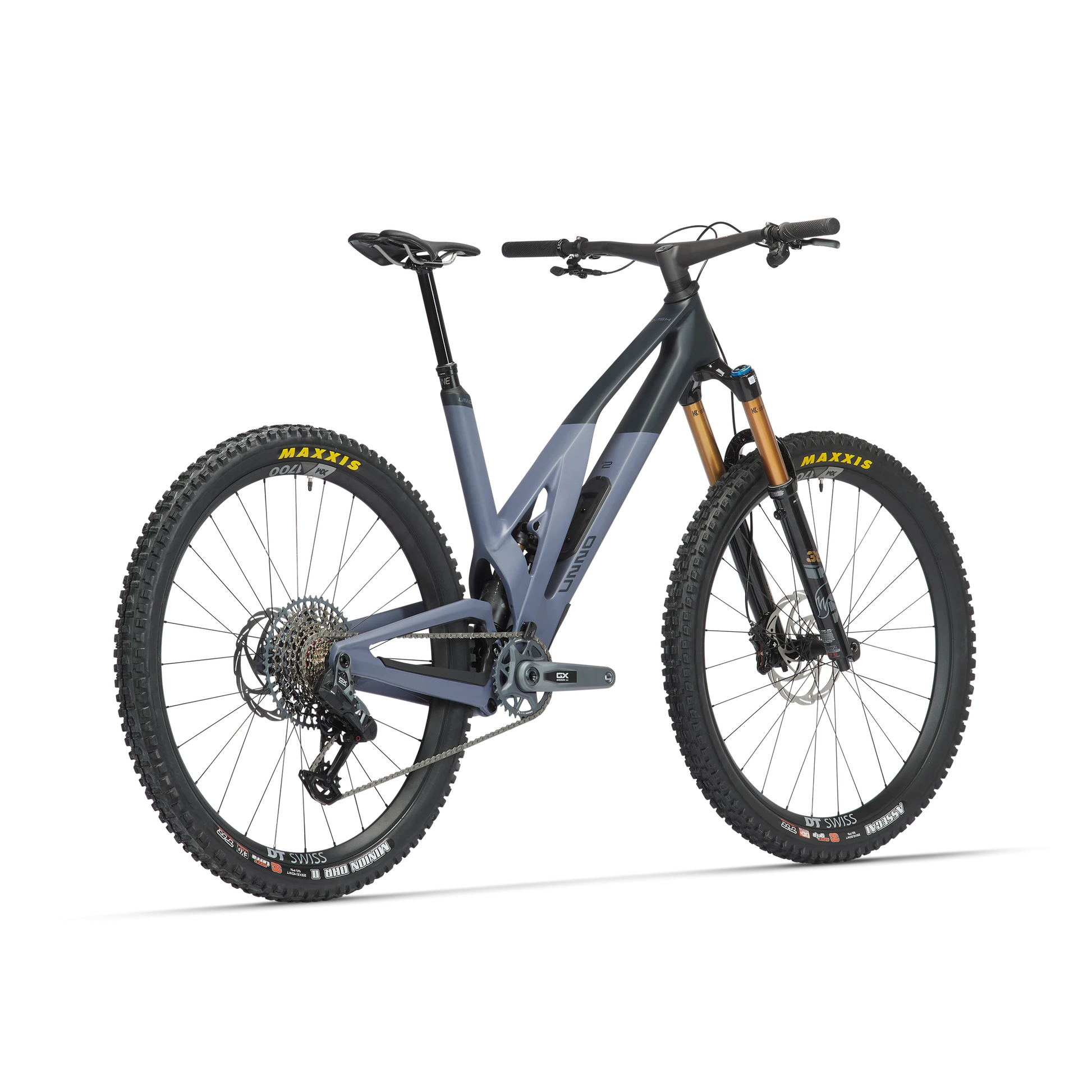

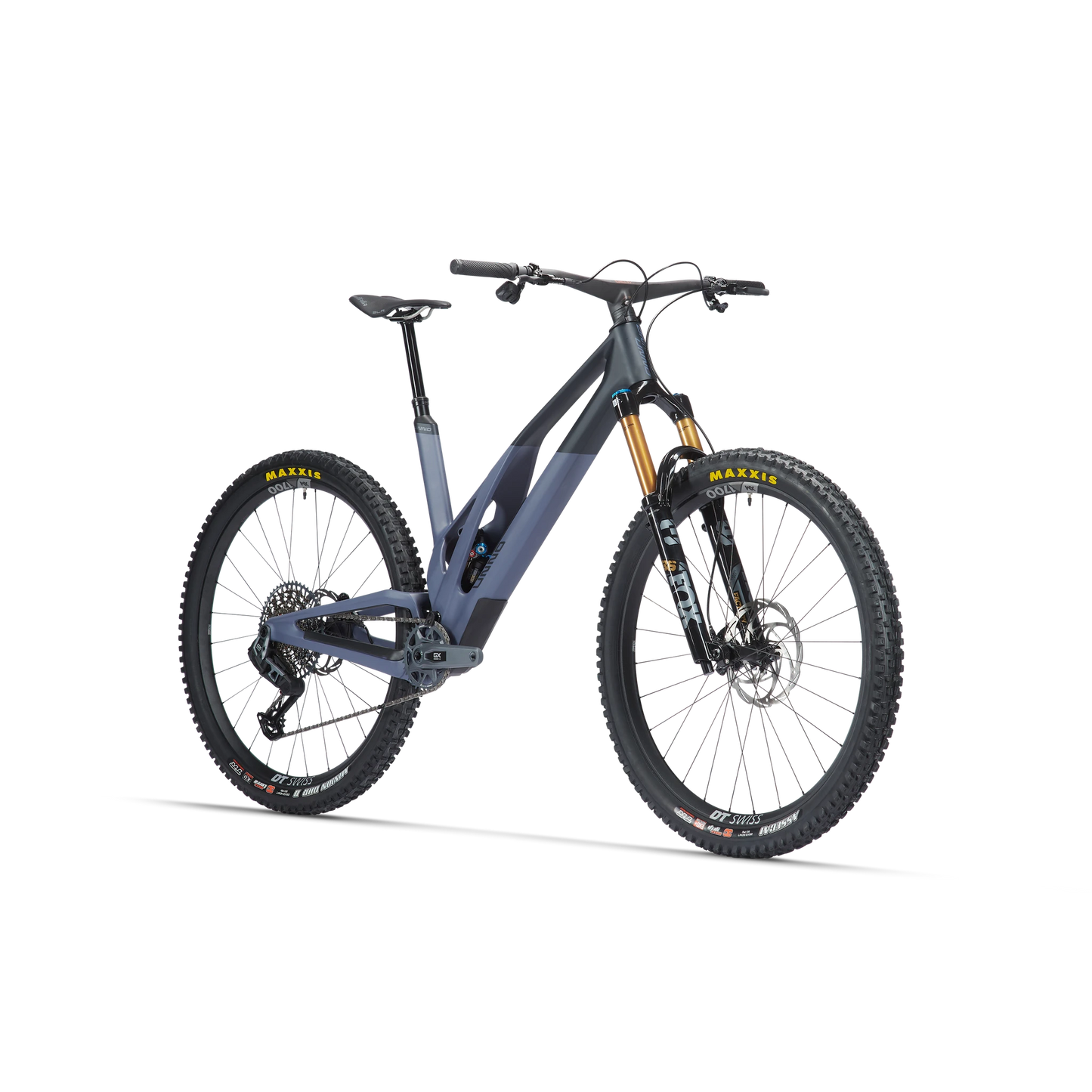

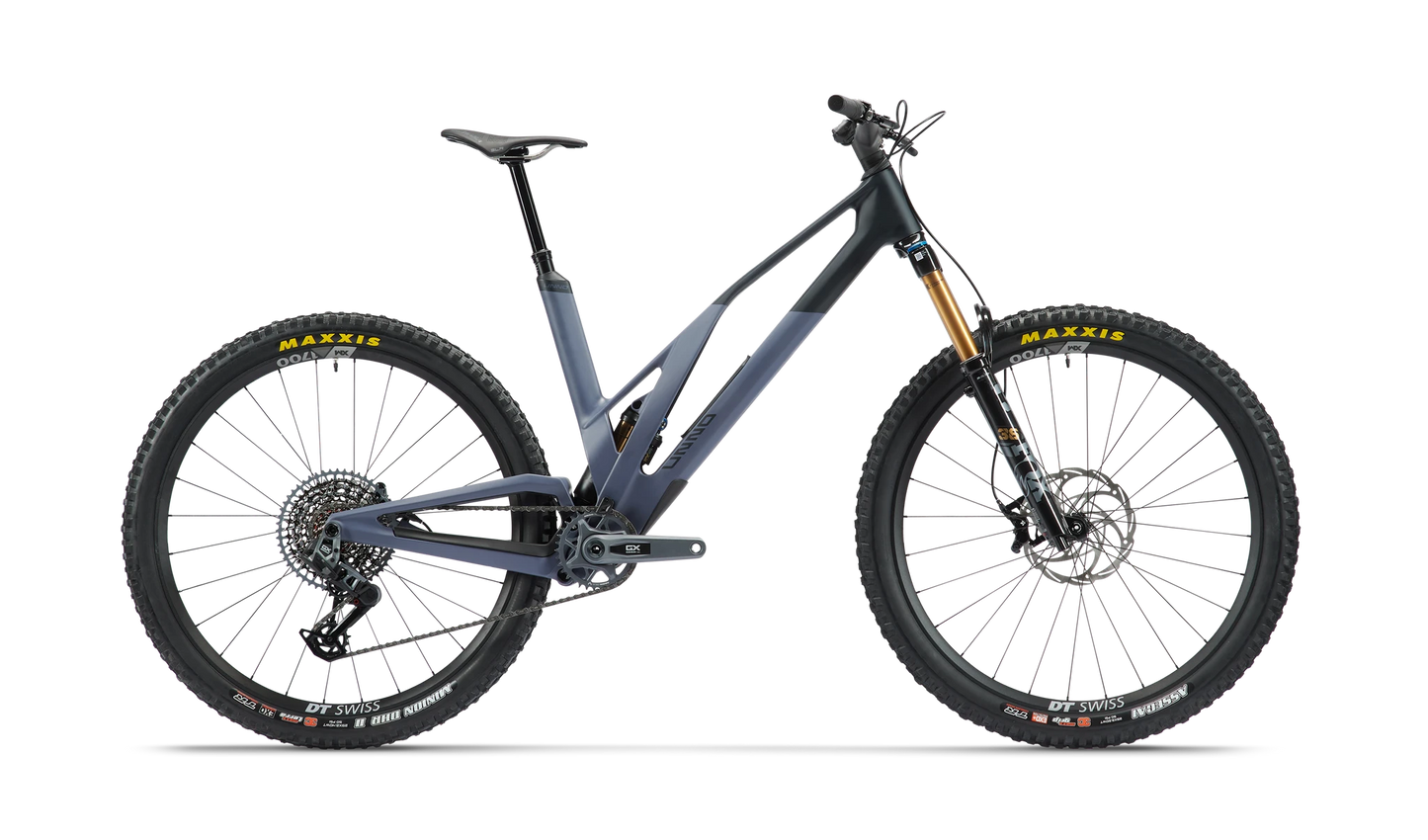

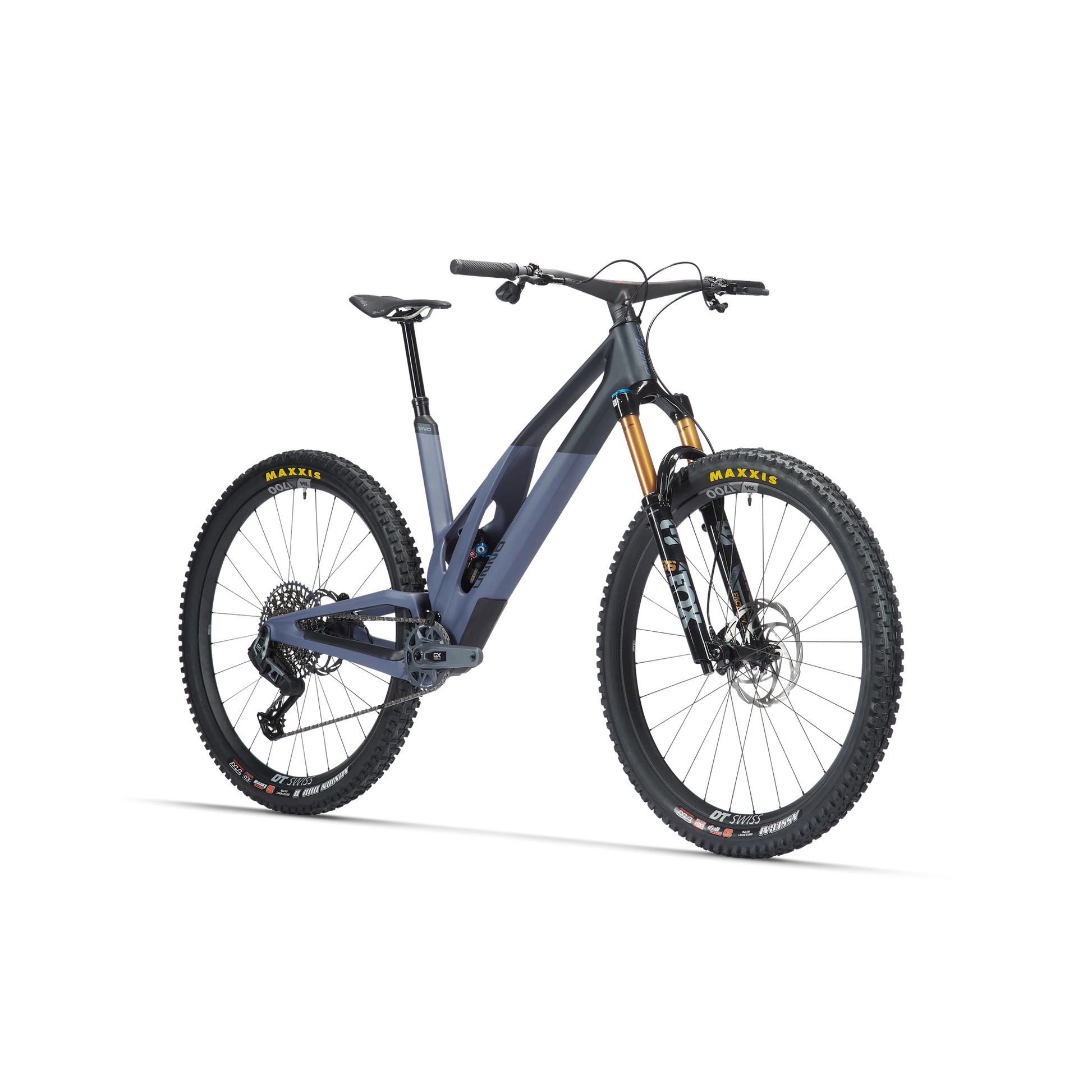

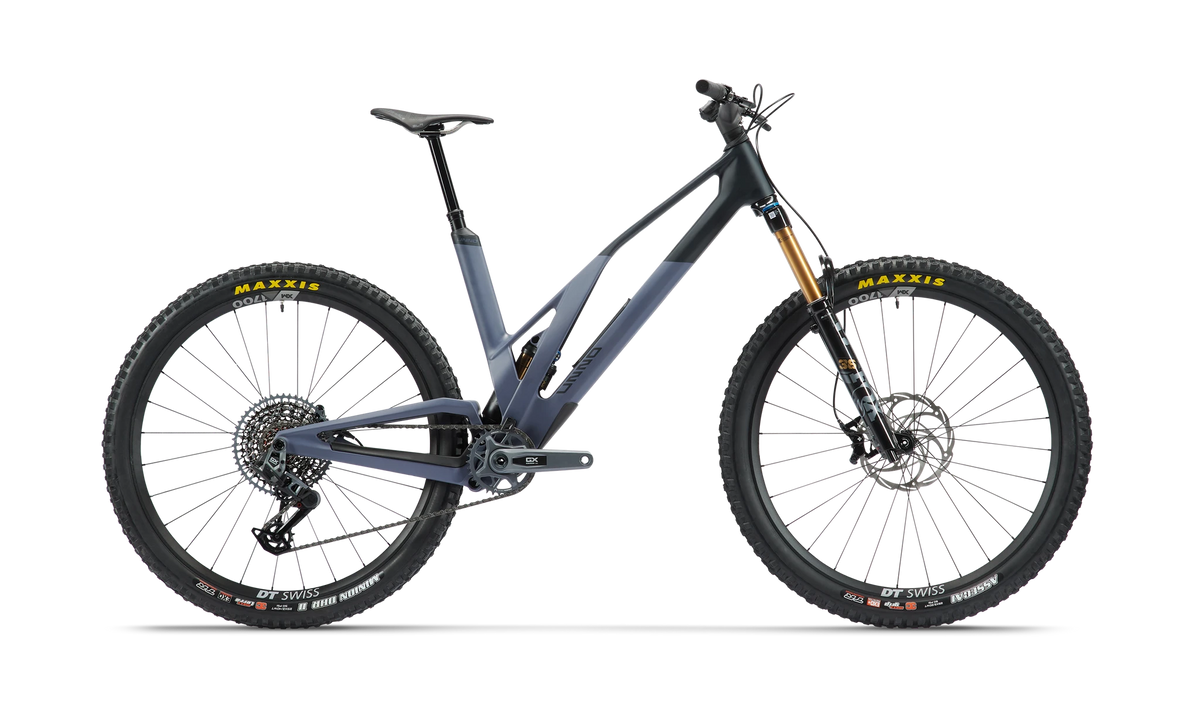

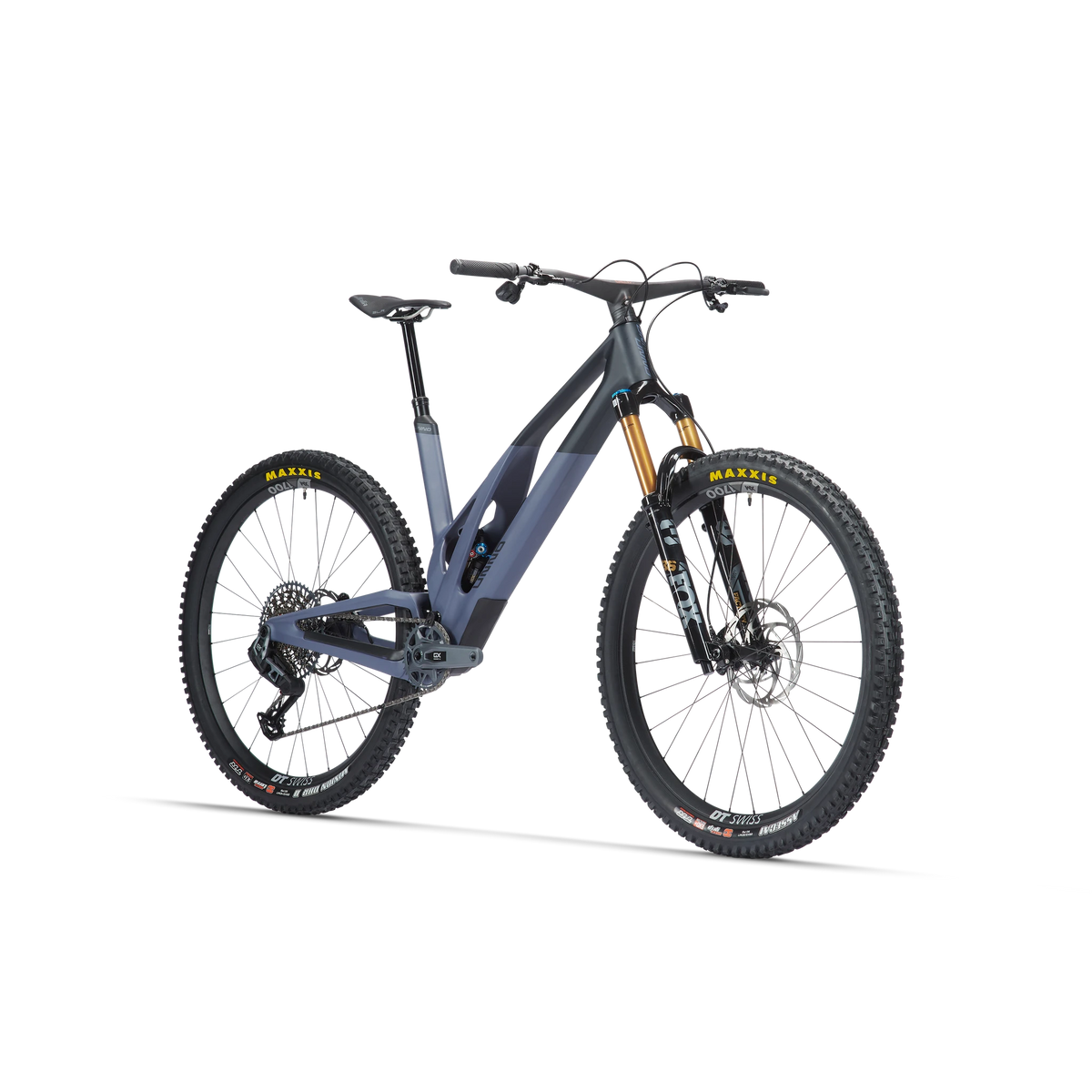

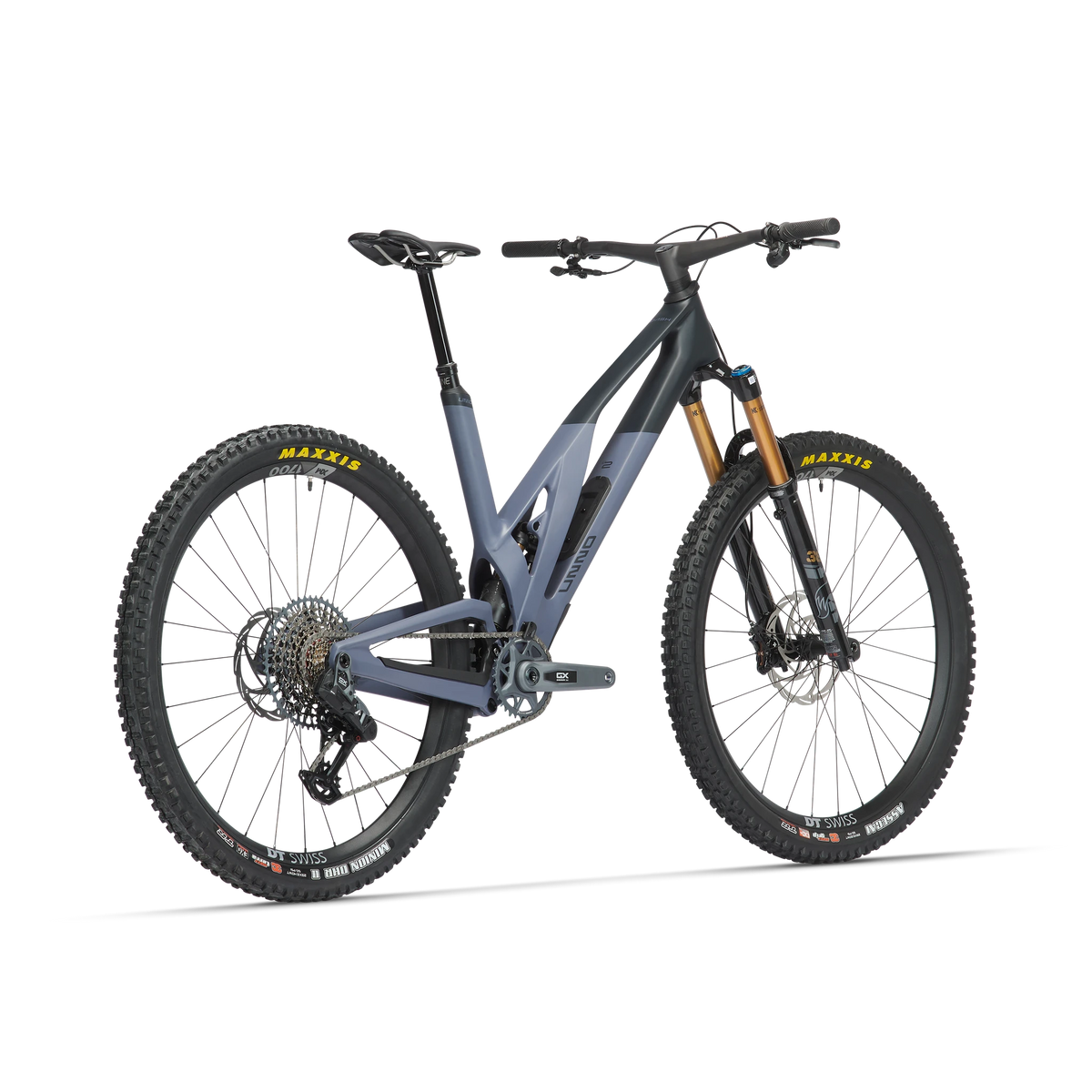

UNNO Dash Race

FRAME

Model: Unno DASH
Carbon fibre monocoque frame with 140mm rear travel, designed around a virtual pivot suspension platform. Features include an integrated chain guide and seat clamp, downtube protector, EnduroMAX bearings, internal cable routing, Boost 12x148mm rear spacing, and post mount brake compatibility. Supports up to 2.6" tire width. Built with sustainability in mind using Oceanworks® recycled plastic parts and recycled rubber protectors.
Recommended rear shock sag: 35% (±5%).

HEADSET

ACROS Block-Lock
135º steering limiter with CANE CREEK spacers.

SUSPENSION

• Fork:
  Fox 36 Factory
  150mm travel, Kashima-coated stanchions, GRIP2 damper.
  Adjustments:

  • High-Speed Compression (HSC)

  • Low-Speed Compression (LSC)

  • High-Speed Rebound (HSR)

  • Low-Speed Rebound (LSR)

  • 15x110mm Boost axle

  • 44mm offset

• Shock:
  Fox Float X2 Factory
  230x57.5mm, Kashima coating, 2-position lever, VVC rebound.
  Adjustments: HSC, LSC, HSR, LSR

TRANSMISSION

• Rear Derailleur:
  SRAM GX AXS T-Type
  12-speed, wireless electronic shifting, T-Type interface.

• Controller:
  SRAM AXS Pod Controller
  Wireless, 12-speed, discrete clamp.

• Crankset:
  SRAM GX T-Type
  170mm crank arms, 34T chainring.

• Cassette:
  SRAM GX XS-1275 T-Type
  12-speed, 10–52T range.

• Chain:
  SRAM GX T-Type Flat Top
  12-speed, flat-top design.

WHEELSET

• Wheels:
  DT Swiss XM 1700 Spline
  29", 30mm internal width rims, DT 350 hubs. Optimized for trail riding.

• Front Tire:
  Continental Kryptotal-F Trail
  29 x 2.40", Trail Endurance compound, Skin SL casing, foldable, black sidewalls.

• Rear Tire:
  Continental Kryptotal-R Trail
  29 x 2.40", Trail Endurance compound, Skin SL casing, foldable, black sidewalls.

BRAKESET

• Brakes:
  Formula Cura 4
  4-piston calipers (4x18mm), forged aluminum construction, axial master cylinder, sintered pads. SRAM Mixmaster clamp compatible.

  • Hose lengths: 850mm (front), 2000mm (rear)

• Rotors:
  Formula Monolithic
  203mm (front) / 180mm (rear), 2.35mm thick. Engineered for lateral stiffness, reduced vibration, and quiet operation.

COCKPIT & SEAT

• Handlebar & Stem:
  DEUX Enduro Integrated Cockpit
  800mm width, 40mm length, 20mm rise. Integrated design with hidden wedge and internal fork tube clamp.

• Dropper Post:
  OneUp V3 (Mechanical)

  • S1: 120mm travel

  • S2: 150mm travel

  • S3: 180mm travel

• Saddle:
  Selle Italia SLR Boost
