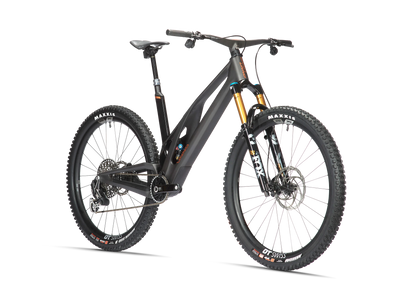

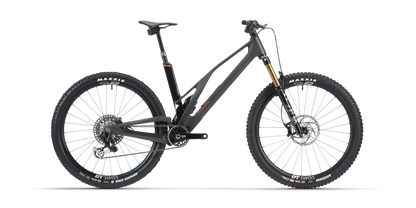

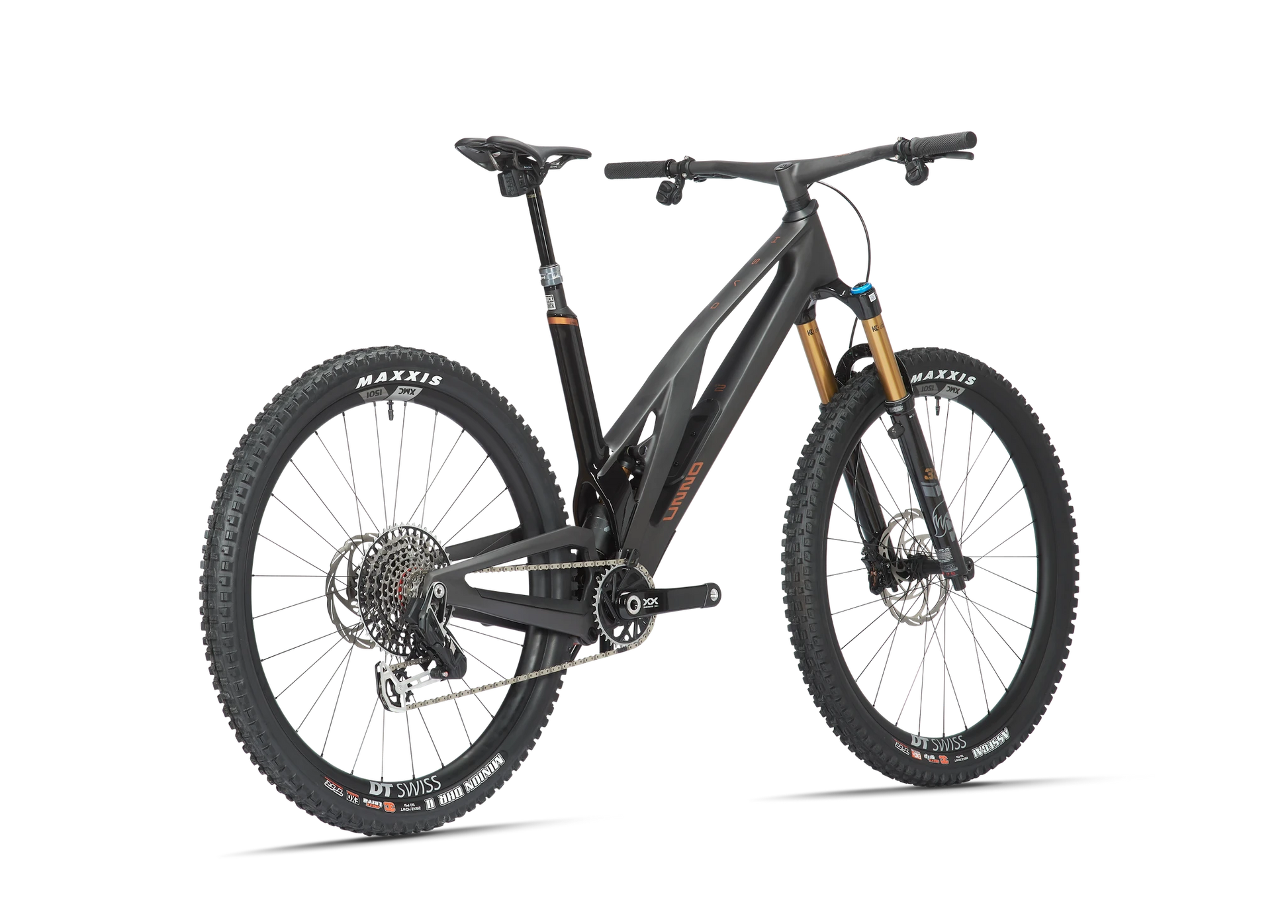

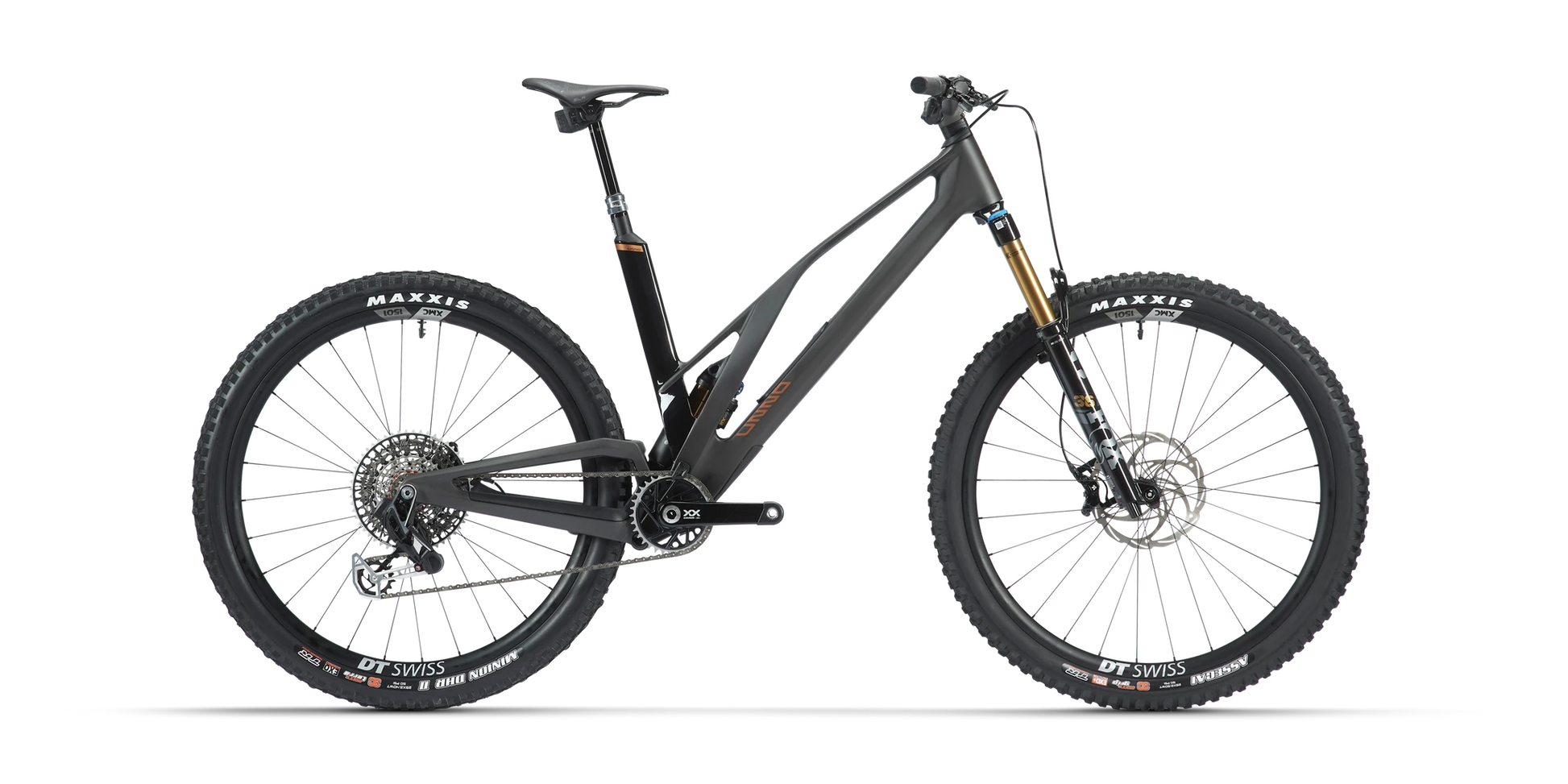

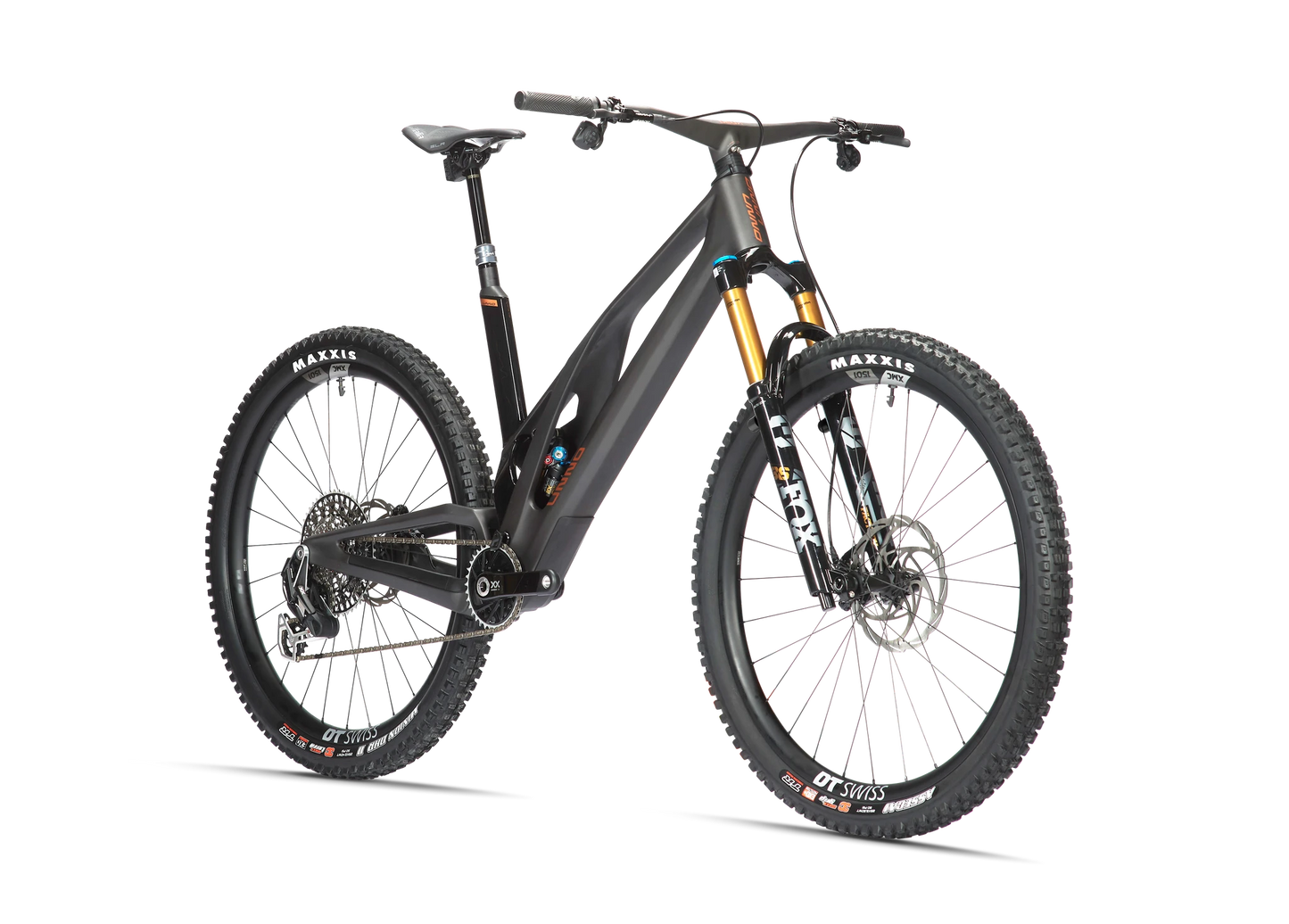

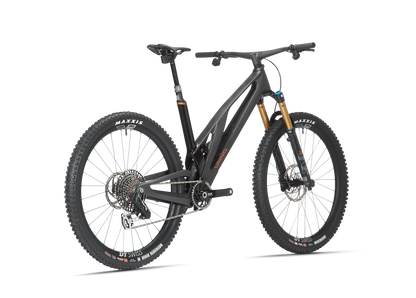

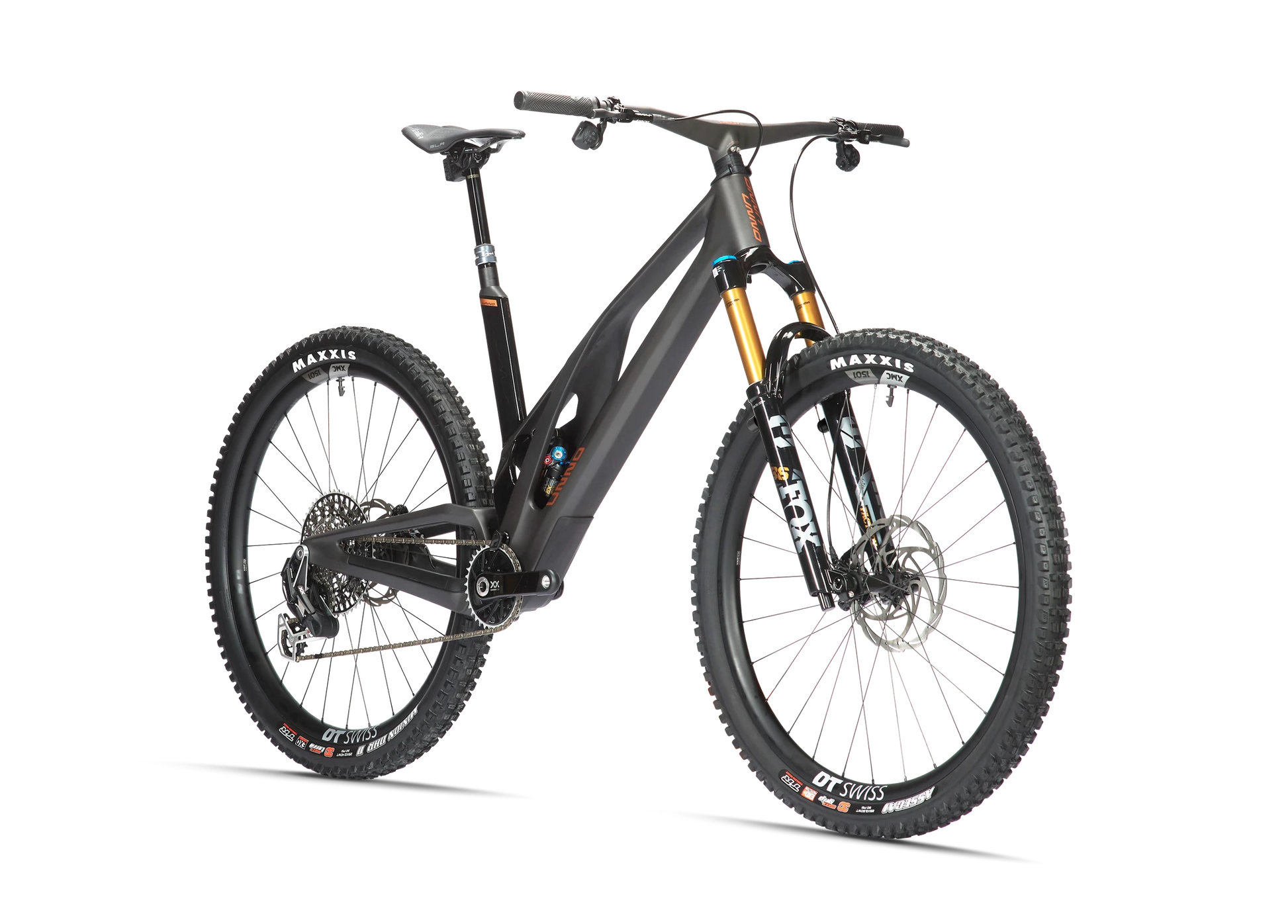

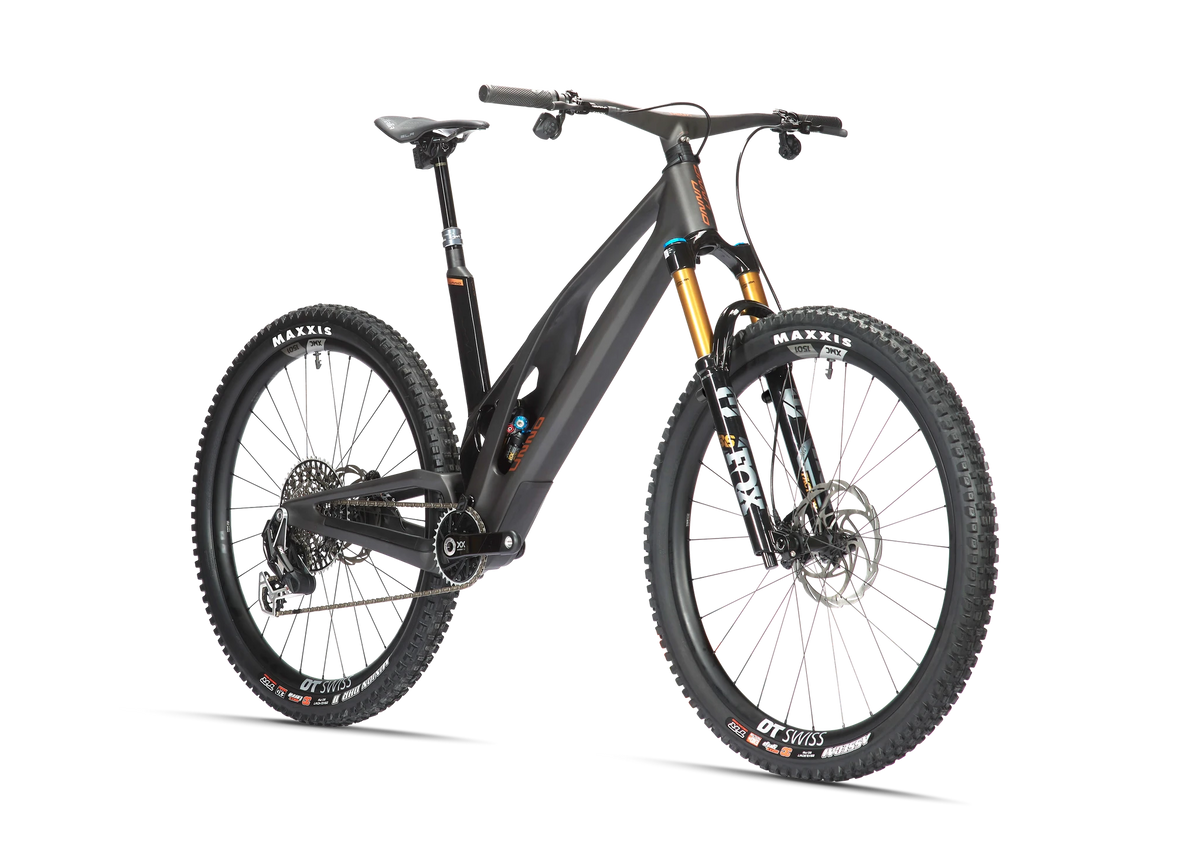

UNNO Dash Factory

Frame

Model: Unno DASH
Carbon fibre monocoque frame with 140mm of rear travel, built around a virtual pivot suspension platform. Key features include an integrated chain guide, seat tube clamp, downtube protector, and EnduroMAX bearings. The frame is equipped with internal cable routing, Boost 12x148mm rear spacing, post mount brake compatibility, and supports a max tire width of 2.6”. Sustainability is prioritized with Oceanworks® recycled plastic parts and recycled rubber protectors. Recommended rear shock sag: 35% (±5%).

Headset

ACROS Block-Lock
135º steering stop, includes CANE CREEK spacers.

Suspension

• Fork:
  Fox 36 Factory
  150mm travel, Kashima-coated stanchions, GRIP2 damper. Offers full external adjustability:

  • High- & Low-Speed Compression (HSC/LSC)

  • High- & Low-Speed Rebound (HSR/LSR)

  • 15x110mm Boost axle

  • 44mm offset

• Shock:
  Fox Float X2 Factory
  230x57.5mm, Kashima coating, 2-position lever, VVC rebound. Full adjustability for HSC, LSC, HSR, and LSR.

Drivetrain

• Rear Derailleur:
  SRAM XX Eagle AXS T-Type
  12-speed, wireless. Silver finish, includes Powerpack battery (approx. 450g).

• Controller:
  SRAM AXS Pod
  Mounted with discrete clamp.

• Crankset:
  SRAM XX Carbon DUB Wide
  170mm length, designed for T-Type drivetrains.

• Chainring:
  SRAM XX
  Direct Mount, 34T, 12-speed.

• Cassette:
  SRAM XX XS-1297 T-Type
  12-speed, 10–52T range.

• Chain:
  SRAM XX Flat Top
  12-speed, hollow pin design.

Brakes

• Brakeset:
  Formula Cura 4
  Quad-piston (4x18mm), forged aluminium calipers, axial master cylinder, sintered pads. SRAM Mixmaster clamp compatible.

  • Hose lengths: 850mm (front), 2000mm (rear)

• Rotors:
  Formula Monolithic
  203mm (front) / 180mm (rear), 2.35mm thick. Designed for optimal stiffness and vibration/noise reduction.

Wheelset

• Wheels:
  DT Swiss XMC 1501 Spline One
  Carbon rims, 29", 30mm internal width, DT 240 hubs. Trail-specific MTB wheelset.

• Front Tire:
  Continental Kryptotal-F Trail
  29 x 2.40", Trail Endurance compound, Skin SL casing, foldable, black sidewalls.

• Rear Tire:
  Continental Kryptotal-R Trail
  29 x 2.40", Trail Endurance compound, Skin SL casing, foldable, black sidewalls.

Cockpit & Seat

• Handlebar/Stem:
  DEUX Enduro Integrated Cockpit
  Integrated design with hidden wedge and internal fork tube clamp.

  • Width: 800mm

  • Length: 40mm

  • Rise: 20mm

• Dropper Post:
  RockShox Reverb AXS (Electronic)

  • Travel by size:

    • 125mm (S1)

    • 150mm (S2)

    • 175mm (S3)

• Saddle:
  Selle Italia SLR Boost Kit Carbonio
