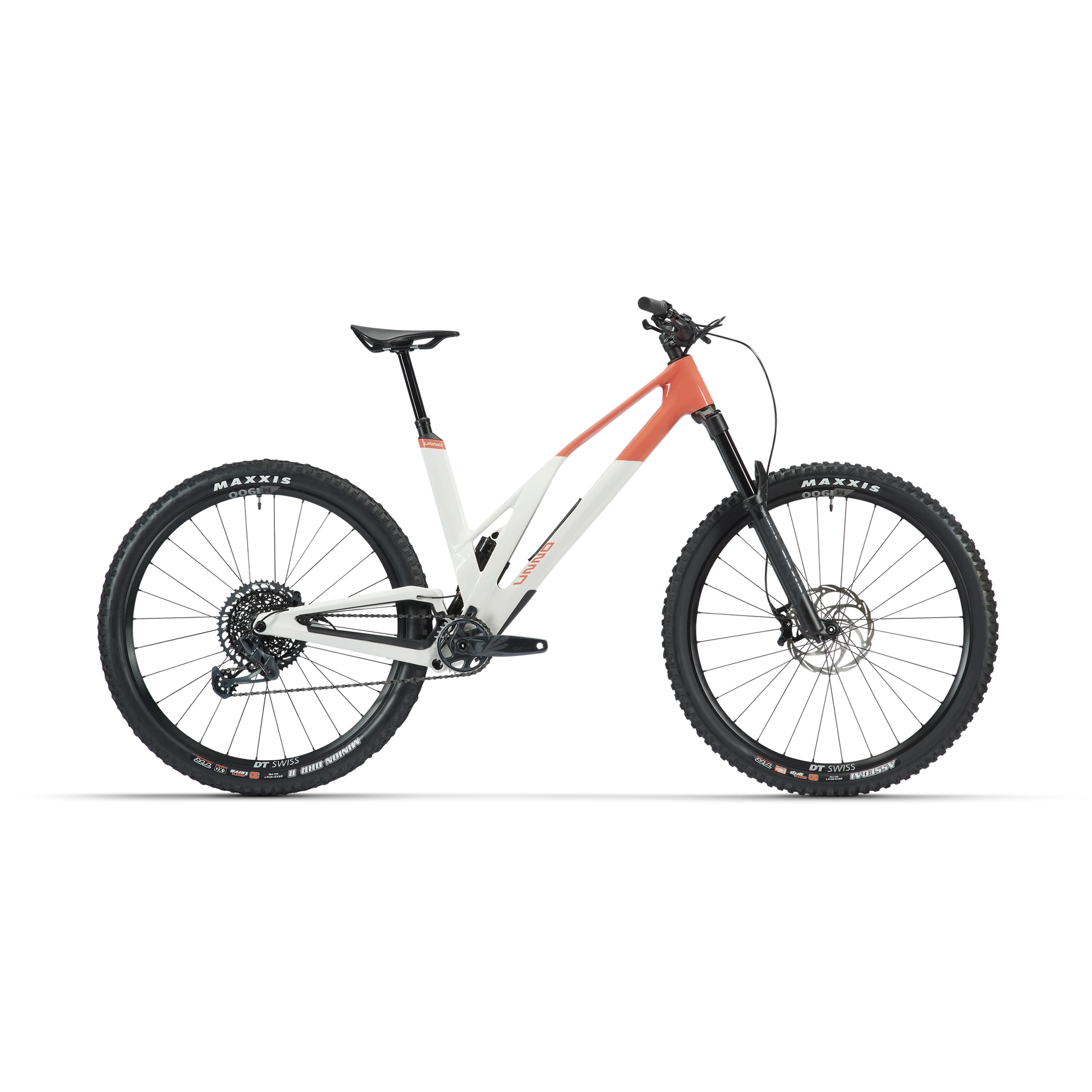

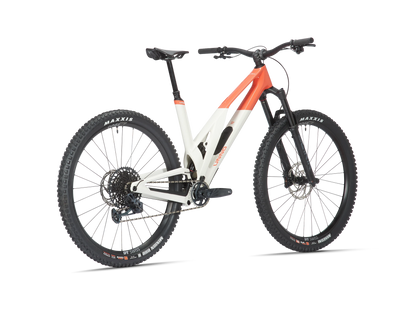

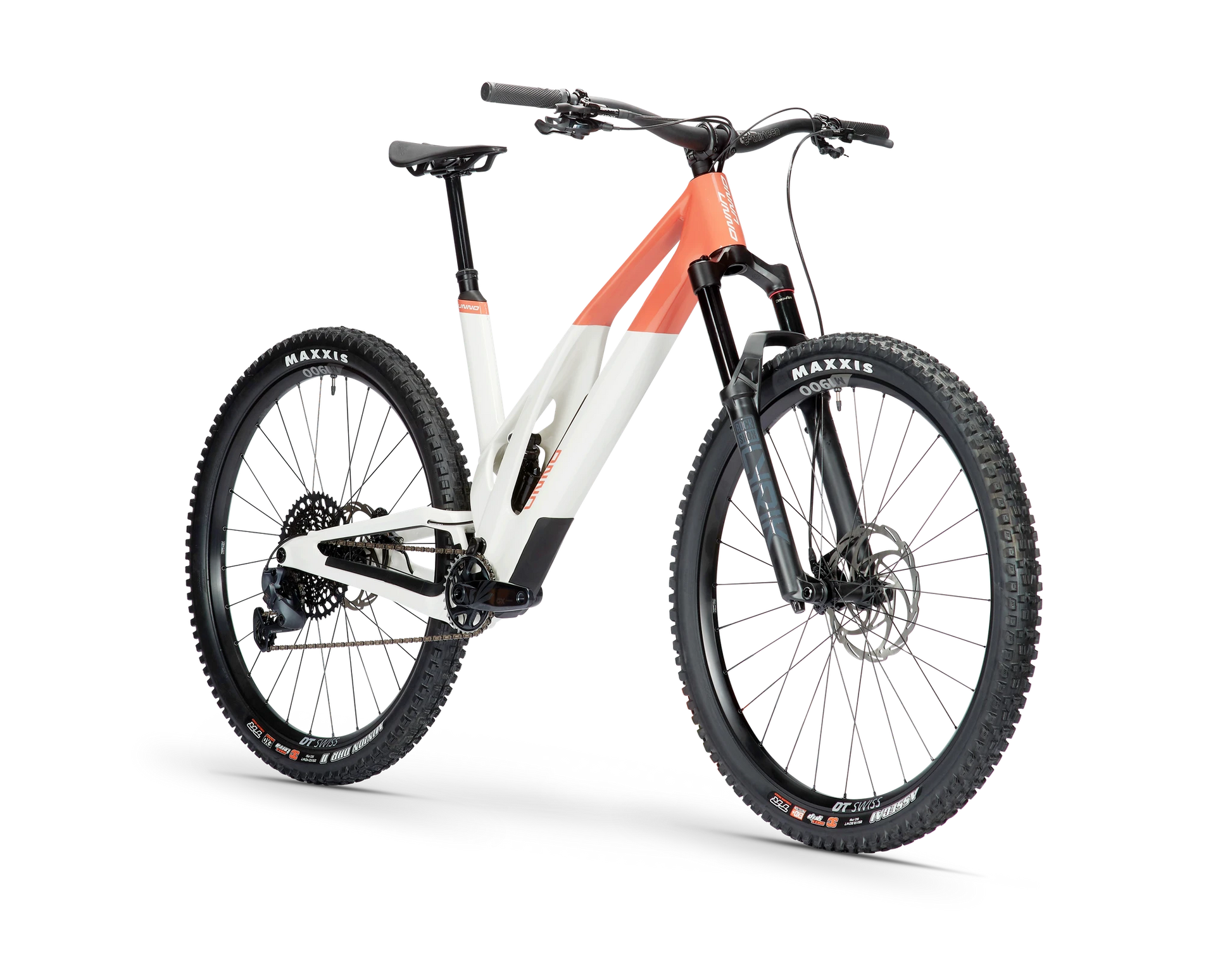

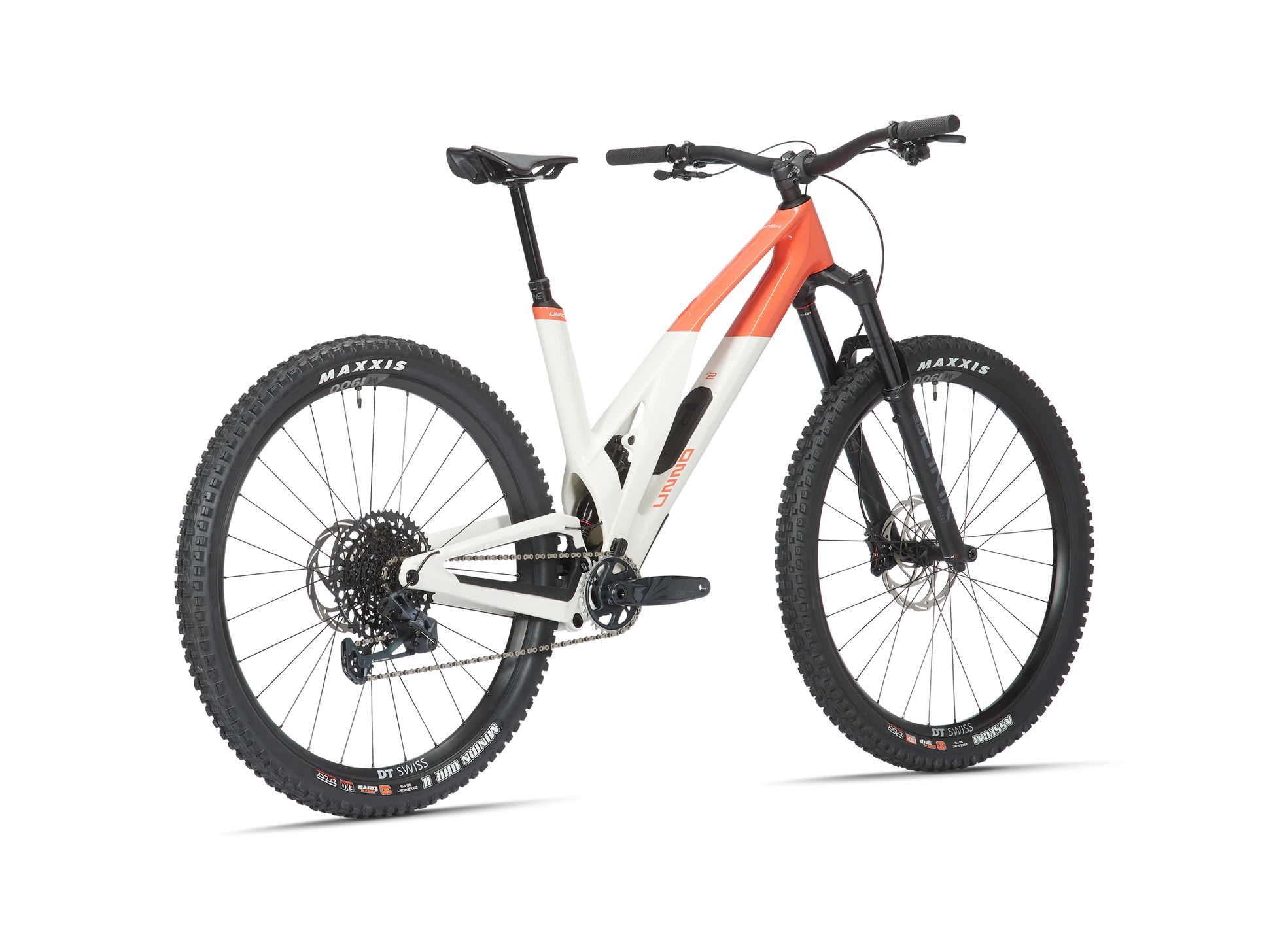

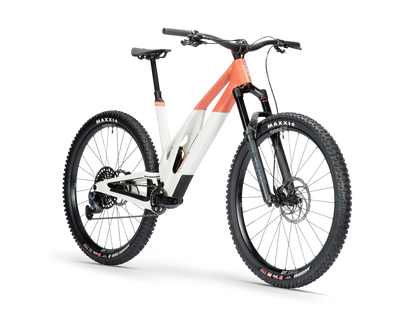

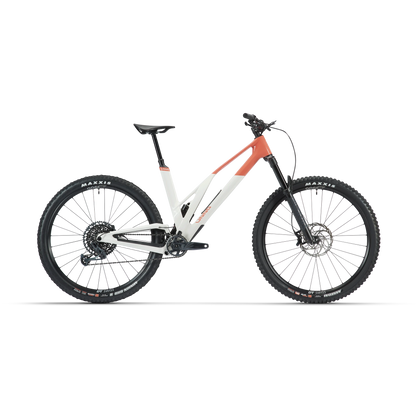

UNNO Dash Elite

UNNO Dash Elite

£5,700.00
£5,700.00
Sale Call for availability
Tax included.
Size

FRAME

Model: Unno DASH
Premium carbon fibre monocoque frame with 140mm of rear travel, utilizing a virtual pivot suspension design for efficient and responsive ride characteristics. Features include an integrated chain guide and seat tube clamp, downtube protector, EnduroMAX bearings, internal cable routing, and Boost 12x148mm rear spacing. Compatible with post mount brakes and up to 2.6” tire width. Built with sustainability in mind using Oceanworks® recycled plastic components and recycled rubber frame protectors.
Recommended rear shock sag: 35% (±5%)

HEADSET

ACROS Block-Lock
135º steering limiter, supplied with CANE CREEK spacers.

SUSPENSION

  • Fork:
    RockShox Lyrik Select
    150mm travel, DebonAir air spring, Boost 15x110mm axle.

  • Shock:
    RockShox Super Deluxe Select
    DebonAir air spring, 230x57.5mm size.

DRIVETRAIN

  • Rear Derailleur:
    SRAM GX Eagle
    12-speed mechanical, X-Actuation technology, aluminum cage, steel pulley bearings. Lunar finish.

  • Shifter:
    SRAM GX Eagle
    12-speed mechanical trigger, X-Actuation.

  • Crankset:
    SRAM GX Eagle Alloy
    170mm (assumed), aluminum construction, Lunar finish.

  • Chainring:
    SRAM GX
    Direct Mount, 32T, aluminum.

  • Cassette:
    SRAM GX XG-1275
    12-speed, 10–52T range (500%), black finish, X-Glide 2.

  • Chain:
    SRAM GX Eagle
    120 links, solid pin construction.

WHEELSET

  • Wheels:
    DT Swiss M 1900 Spline
    29” diameter, 30mm internal width rims, DT 370 hubs.

  • Front Tire:
    Continental Kryptotal-F Trail
    29 x 2.40”, Trail Endurance compound, Skin SL casing, foldable, black sidewalls.

  • Rear Tire:
    Continental Kryptotal-R Trail
    29 x 2.40”, Trail Endurance compound, Skin SL casing, foldable, black sidewalls.

BRAKESET

  • Brakes:
    Formula Cura 4
    4-piston calipers (4x18mm), forged aluminum body, axial master cylinder, sintered pads. SRAM Mixmaster compatible.

    • Hose lengths: 850mm (front), 2000mm (rear)

  • Rotors:
    Formula Monolithic
    203mm (front) / 180mm (rear), 2.35mm thick. Built for maximum stiffness, minimal vibration, and low noise.

COCKPIT & SEATKIT

  • Handlebar:
    E*Thirteen Base
    35mm clamp diameter, aluminum.

  • Stem:
    E*Thirteen Base
    Aluminum, 35mm length and clamp.

  • Dropper Post:
    OneUp V3 (Mechanical)

    • S1: 120mm travel

    • S2: 150mm travel

    • S3: 180mm travel

  • Saddle:
    Selle Italia SLR Boost
