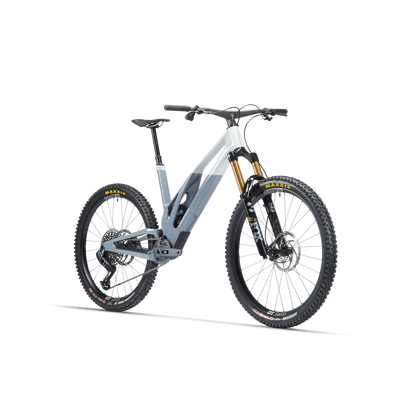

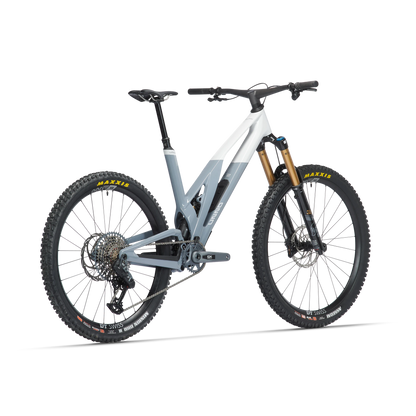

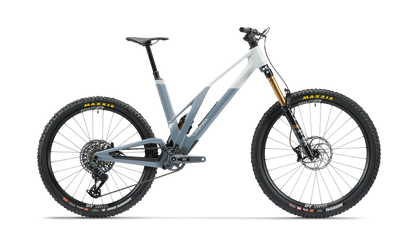

UNNO Burn Race

UNNO Burn Race

£7,220.00
£7,220.00
Sale Call for availability
Tax included.
Size

Frame

Model: Unno BURN
Carbon fiber monocoque frame offering 160mm of rear travel via a virtual pivot suspension system. Includes an integrated chain guide, seat tube clamp, motor protector, and EnduroMAX bearings. Designed with internal cable routing, Boost 12x148mm thru-axle, and post mount brake compatibility. Supports tires up to 2.6” wide. Eco-conscious elements include Oceanworks® recycled plastic parts and recycled rubber frame protectors. Recommended rear shock sag: 35% (±5%).

Headset

ACROS Block-Lock
135º steering limiter, includes CANE CREEK spacers.

Suspension

  • Fork:
    Fox 38 Factory
    170mm travel, Kashima-coated stanchions, Grip X2 damper. Full range of external adjustments: High- and Low-Speed Compression (HSC/LSC) and Rebound (HSR/LSR). 44mm offset.

  • Shock:
    Fox Float X2 Factory
    230x65mm, Kashima coating, 2-position lever, VVC rebound control. Adjustments: HSC, LSC, HSR, LSR.

Drivetrain

  • Rear Derailleur:
    SRAM GX Eagle AXS T-Type
    12-speed, wireless, T-Type compatible.

  • Controller:
    SRAM AXS Pod Controller
    Wireless, 12-speed, discrete clamp mount.

  • Crankset:
    SRAM GX T-Type
    170mm crank arms, 34T chainring.

  • Cassette:
    SRAM GX T-Type XS-1275
    12-speed, 10-52T range.

  • Chain:
    SRAM GX T-Type
    12-speed, flat top design.

Wheelset

  • Wheels:
    DT Swiss EX 1700 Spline
    Mullet setup: 29" front / 27.5" rear. DT 350 hubs, 30mm inner width rims.

  • Front Tire:
    Continental Kryptotal-F Enduro
    29 x 2.40”, folding bead, Skin SL casing, black sidewalls.

  • Rear Tire:
    Continental Kryptotal-R Enduro
    27.5 x 2.40”, folding bead, Skin SL casing, black sidewalls.

Brakes

  • Brakes:
    Formula Cura 4
    Quad-piston (4x18mm), forged aluminum caliper, axial master cylinder, sintered pads. SRAM Mixmaster compatible.

    • Hose lengths: 850mm (front), 2000mm (rear)

  • Rotors:
    Formula Monolithic
    203mm front and rear, 2.35mm thickness. Engineered for high lateral stiffness and noise/vibration reduction.

Cockpit, Dropper & Saddle

  • Handlebar:
    DEUX Enduro Integrated Cockpit
    800mm width, 40mm length, 20mm rise. Features integrated hidden wedge and internal fork tube clamp.

  • Dropper Post:
    OneUp V3 (Mechanical)

    • Travel by frame size:

      • S1: 120mm

      • S2: 150mm

      • S3: 180mm

  • Saddle:
    Selle Italia SLR Boost
