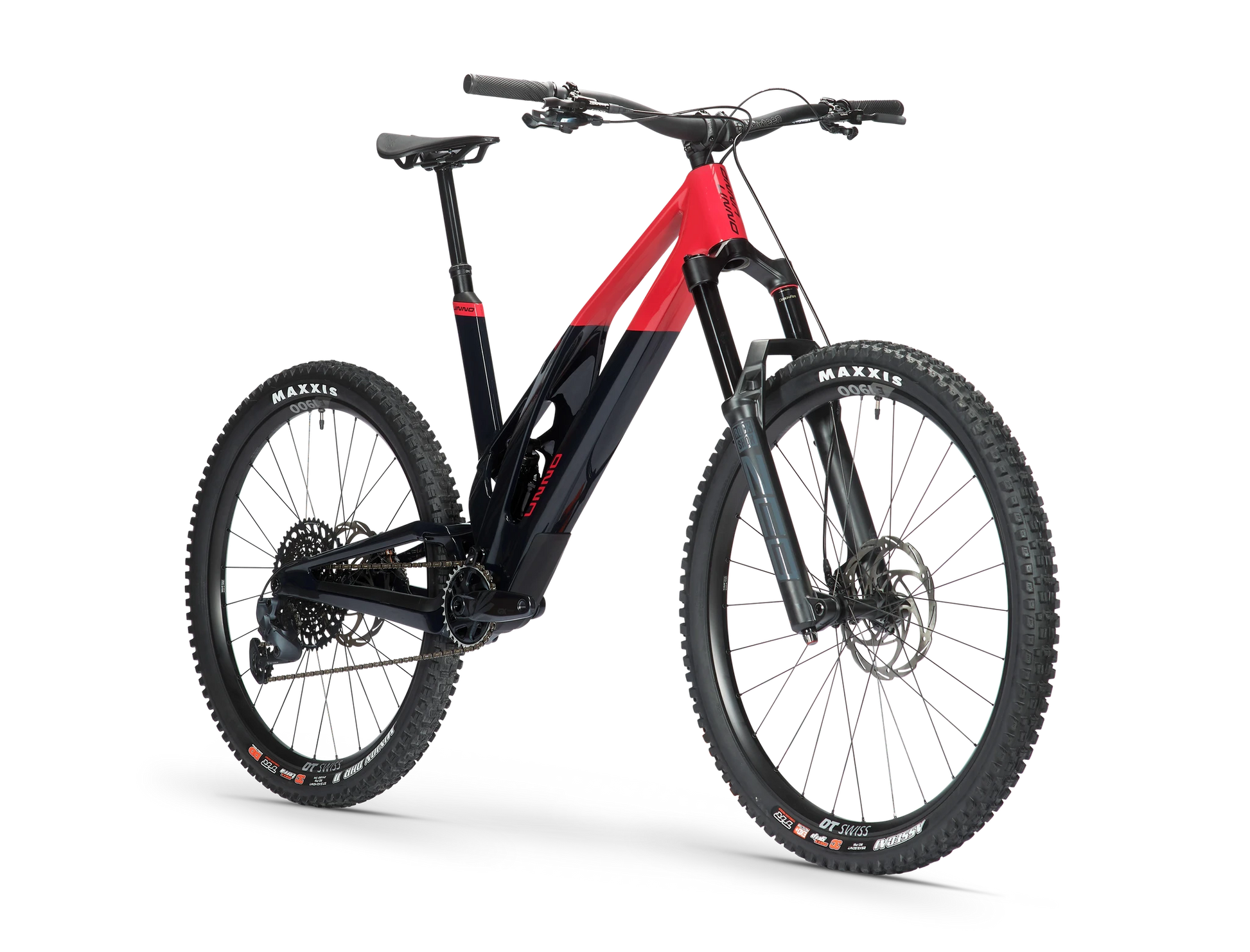

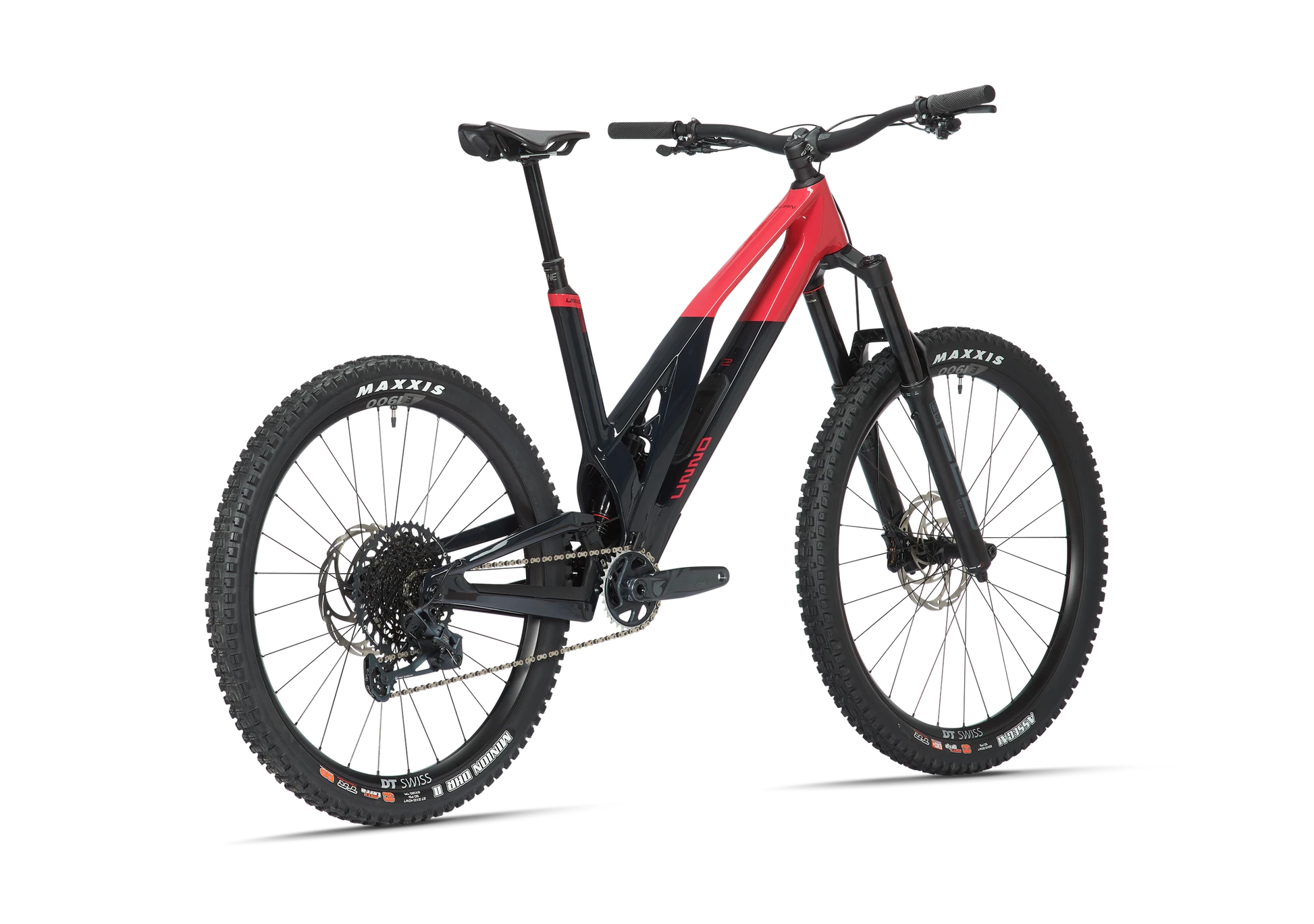

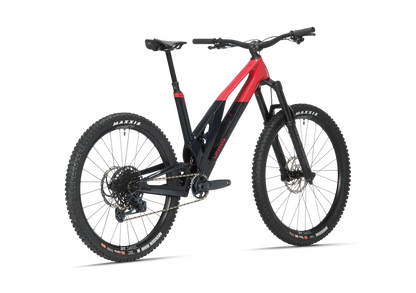

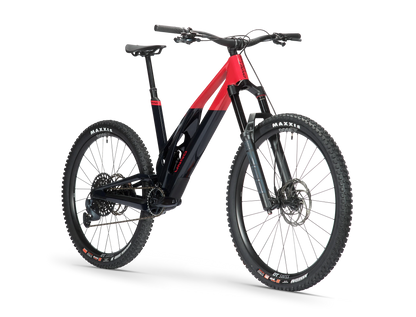

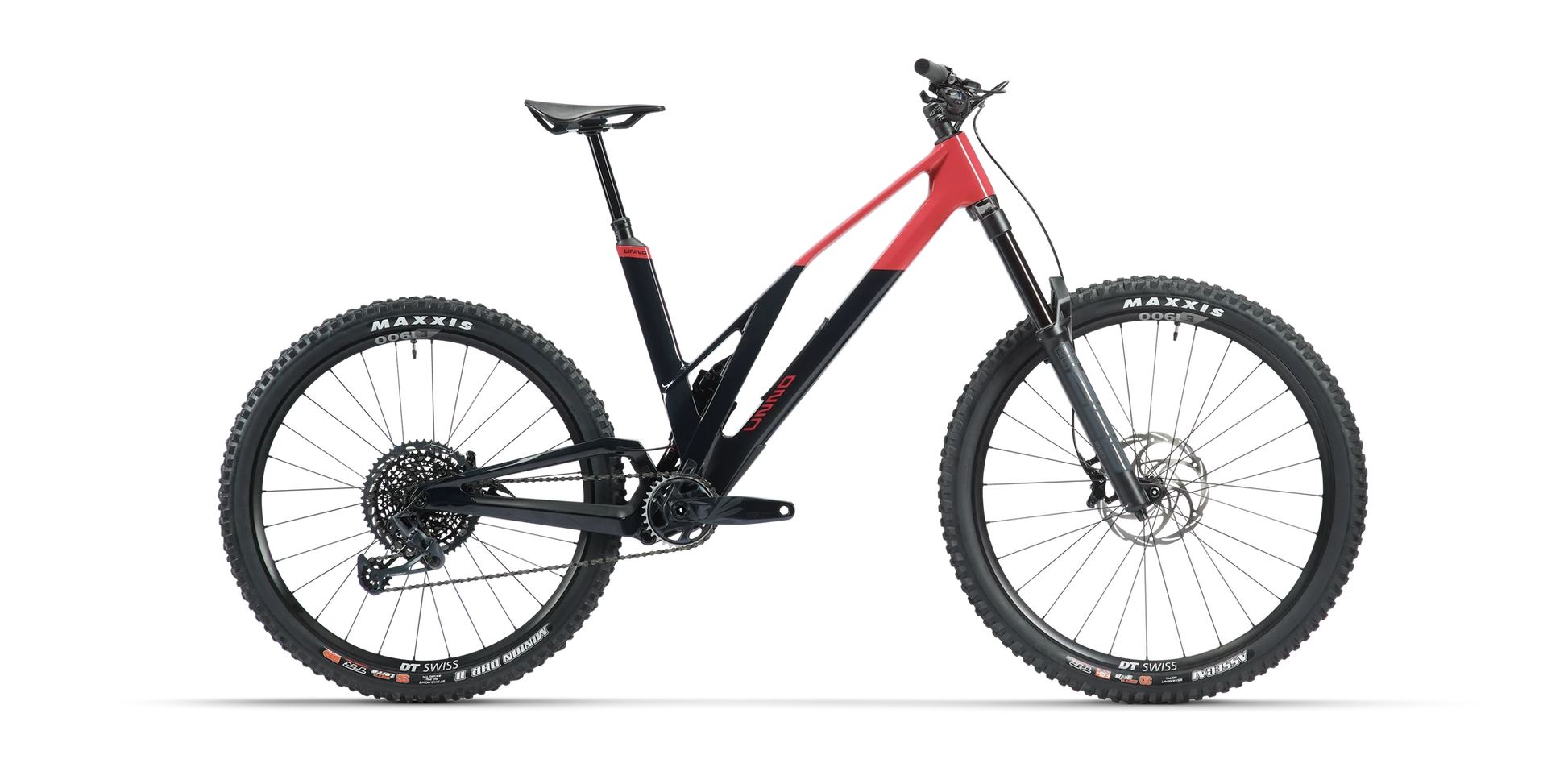

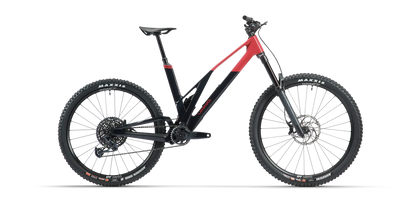

UNNO Burn Elite

Frame

Model: Unno BURN
High-performance carbon fibre monocoque frame with 160mm of rear travel, utilizing a virtual pivot suspension system. Features include an integrated chain guide and seat tube clamp, motor protector, EnduroMAX bearings, internal cable routing, Boost 12x148mm thru-axle, and post mount brake mounts. Supports up to 2.6" tire width. Environmentally conscious design with Oceanworks® recycled plastic components and recycled rubber frame protectors. Recommended rear shock sag: 35% (±5%).

Headset

ACROS Block-Lock
135º steering limiter with CANE CREEK spacers included.

Suspension

• Fork:
  RockShox ZEB Select
  38mm stanchions, DebonAir+ air spring, Charger RC damper. Built for aggressive enduro performance.

• Shock:
  RockShox Super Deluxe Select
  DebonAir+ air spring, 230x65mm sizing.

Drivetrain

• Rear Derailleur:
  SRAM GX Eagle
  12-speed, mechanical, X-Actuation technology. Aluminum cage, steel pulley bearings. Finish: Lunar.

• Shifter:
  SRAM GX Eagle
  12-speed, mechanical, X-Actuation trigger shifter.

• Crankset:
  SRAM GX Carbon
  170mm arms, carbon fiber construction, black finish. 12-speed compatible.

• Chainring:
  SRAM GX
  32T Direct Mount, aluminum.

• Cassette:
  SRAM GX XG-1275
  12-speed, 10-52T range (500%), black finish, X-Glide 2 technology.

• Chain:
  SRAM GX Eagle
  120 links, solid pin construction with Eagle technology.

Wheelset

• Wheels:
  DT Swiss E 1900 Spline
  Mullet setup: 29" front / 27.5" rear, DT 370 hubs, 30mm internal rim width.

• Front Tire:
  Continental Kryptotal-F Enduro
  29 x 2.40”, foldable bead, Skin SL casing, black sidewalls.

• Rear Tire:
  Continental Kryptotal-R Enduro
  27.5 x 2.40”, foldable bead, Skin SL casing, black sidewalls.

Brakes

• Brakes:
  Formula Cura 4
  4-piston calipers with 18mm pistons, forged aluminum construction, axial master cylinder, sintered pads. SRAM Mixmaster compatible.

  • Hose lengths: 850mm (front), 2000mm (rear)

• Rotors:
  Formula Monolithic
  203mm (front and rear), 2.35mm thick. Designed for high lateral stiffness and minimized noise/vibration.

Cockpit & Seat

• Handlebar:
  E*Thirteen Base
  Alloy construction, 35mm clamp diameter.

• Stem:
  E*Thirteen Base
  Alloy, 35mm length, 35mm clamp.

• Dropper Post:
  OneUp V3 (Mechanical)

  • Travel based on frame size:

    • S1: 120mm

    • S2: 150mm

    • S3: 180mm

• Saddle:
  Selle Italia SLR Boost
