THOK TP4R
THOK TP4R
Couldn't load pickup availability

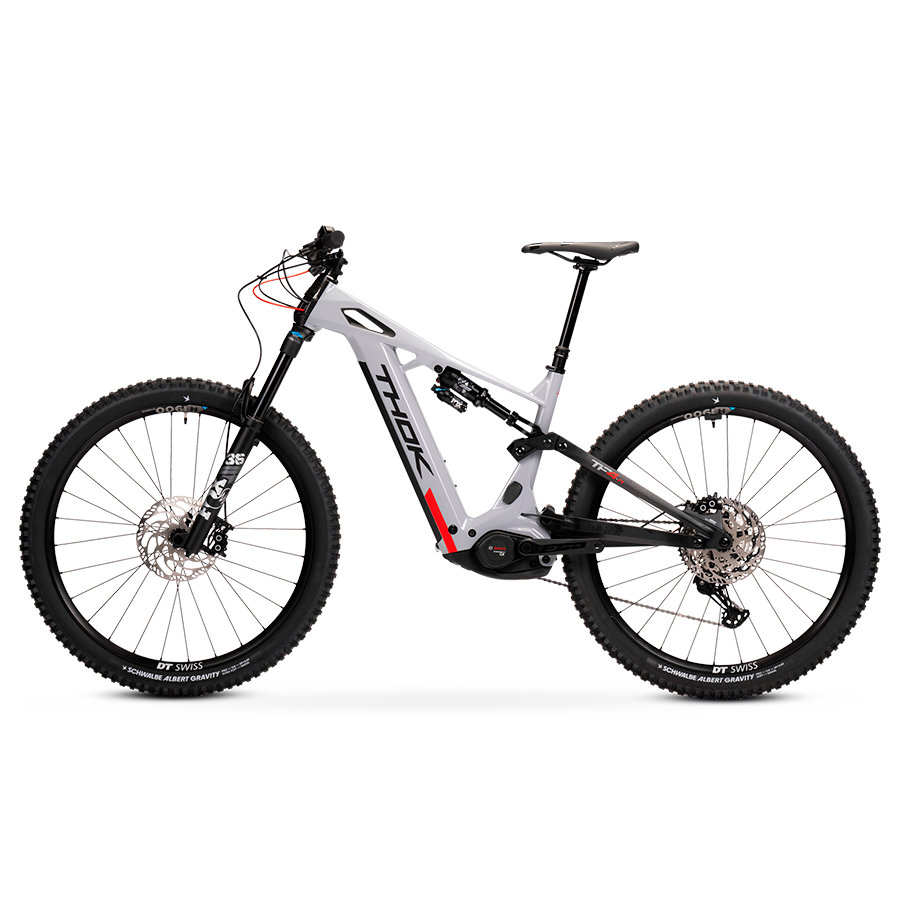

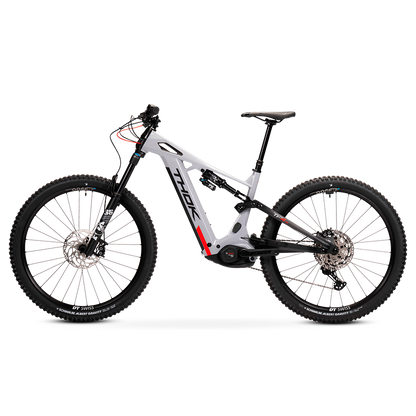

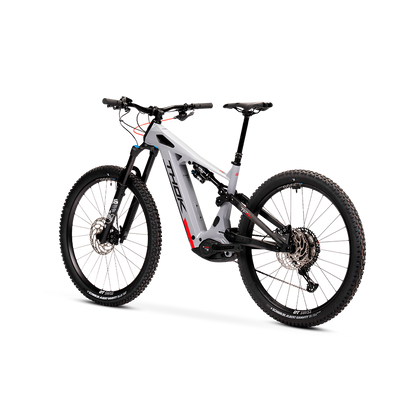

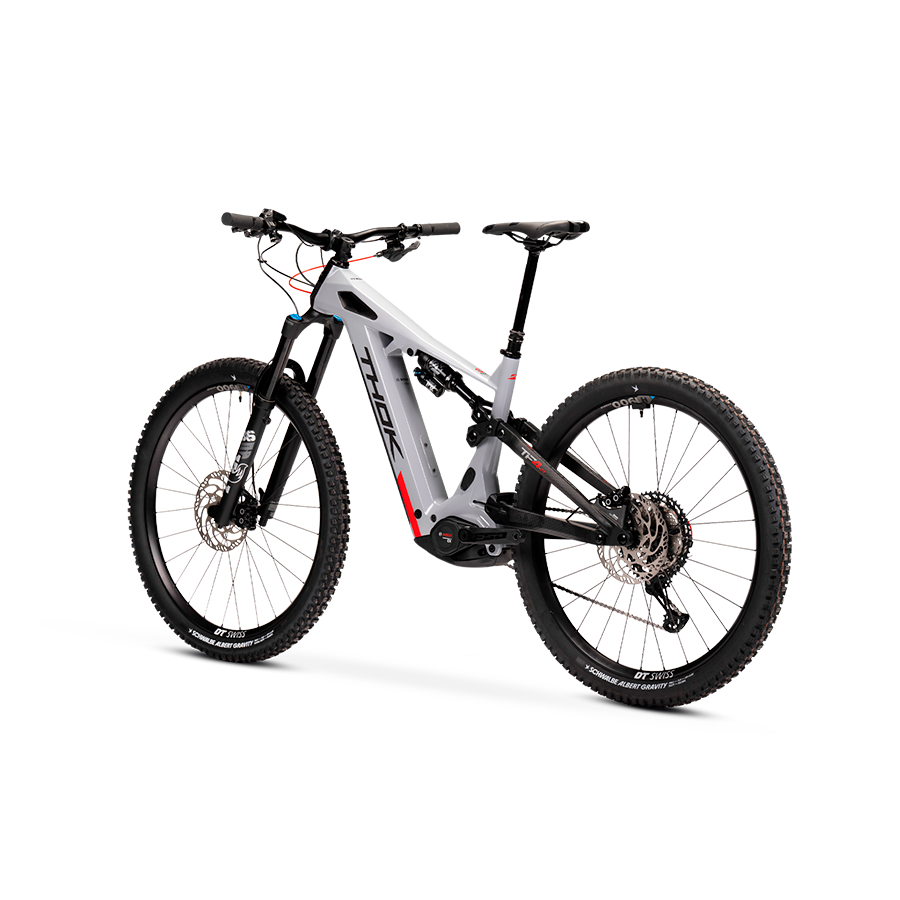

The TP4-R is THOK’s latest e-bike and proudly "100% Made in Italy"—not only designed, like all THOK models, but also manufactured and assembled entirely in Italy. It features a carbon fiber frame with 160mm of front travel and 150mm at the rear, powered by a Bosch Performance Line CX motor paired with a modular 800 Wh battery. The build includes a FOX Float 36 Performance fork, FOX Float X shock, powerful Magura MT5 brakes, and 29” wheels, with compatibility for a mullet setup.
Equipped with Flip-Chip technology, the TP4-R allows riders to adjust the seat tube and head tube angles, effectively changing the bike's geometry and riding characteristics to suit different styles and terrains.
Versatile and high-performing, the TP4-R is an upgraded all-mountain e-bike with strong enduro capabilities. Built to conquer steep, technical climbs, it still excels on aggressive descents—staying true to the performance-focused DNA of the THOK brand.
THOK – Carbon fiber (also High Module), headtube tapered 1.5, 29” geometry with flipchip, 27,5” compatibility, integrated down tube battery, UDH Hanger tecnology, enclosed internal cable, fully sealed cartridge bearing, 150 mm travel.
S – M – L – XL

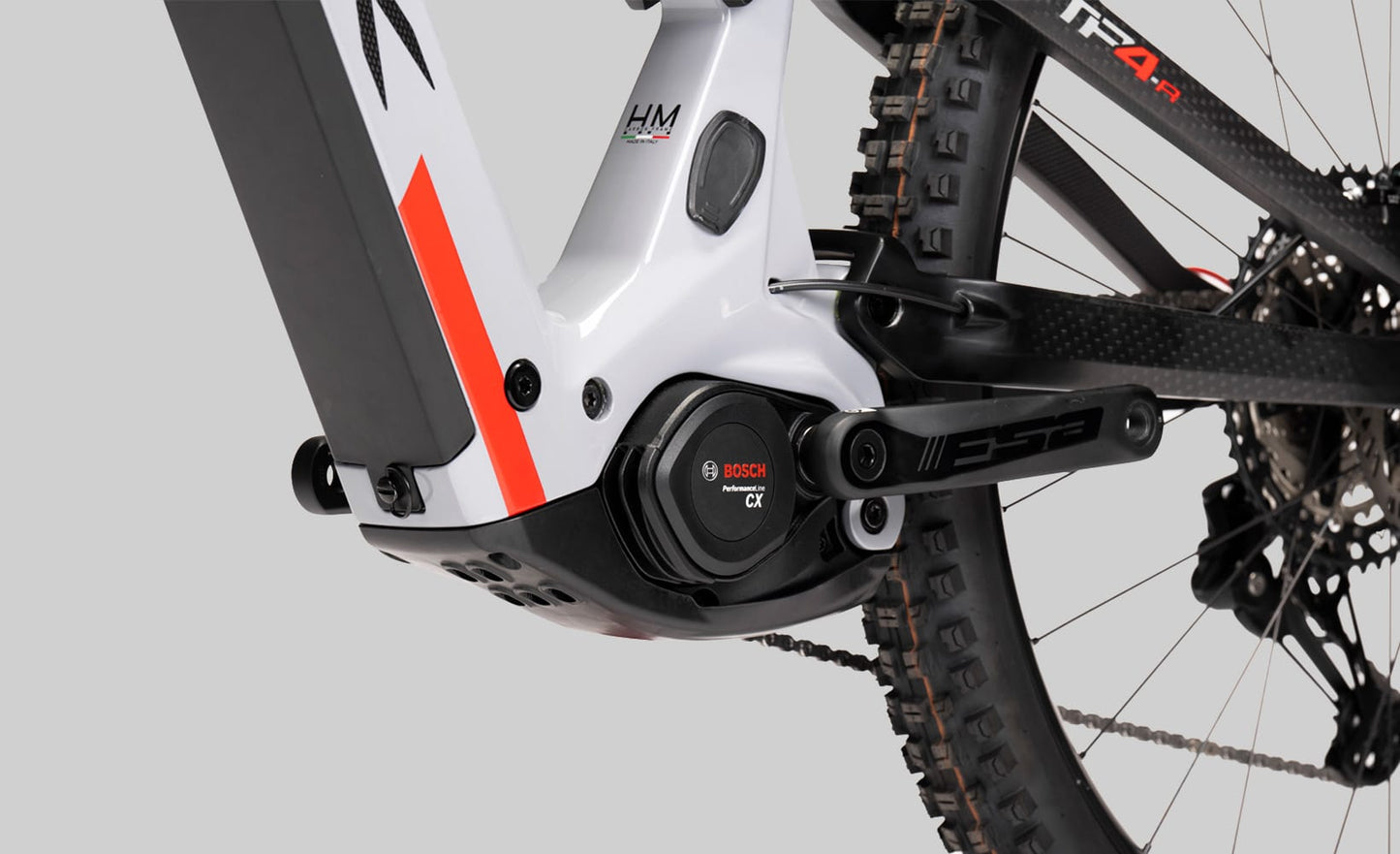

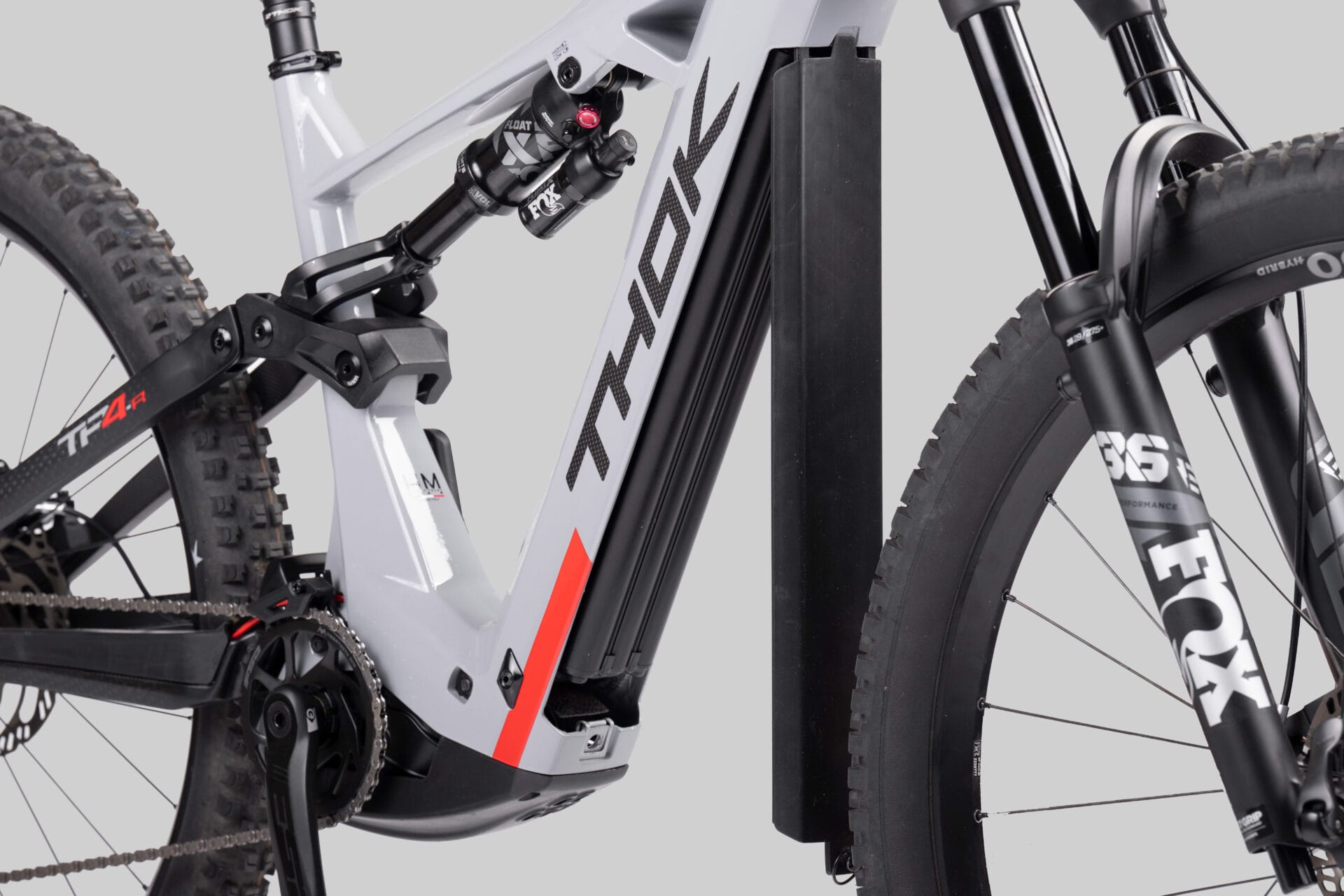

BOSCH – Performance Line CX (250W – 85Nm) – Internal BOSCH Powetube battery 800 Wh (compatibility with PT600 and PT400) – *optional Bosch Powermore range extender 250Wh.
BOSCH – Purion200 – 1,6” LCD color display.
FOX – 36 Float Performance, P-S E-Optimized, 29″ Boost, GRIP, 160 mm travel, 44mm offset, 1.5 tapered, 3POS.

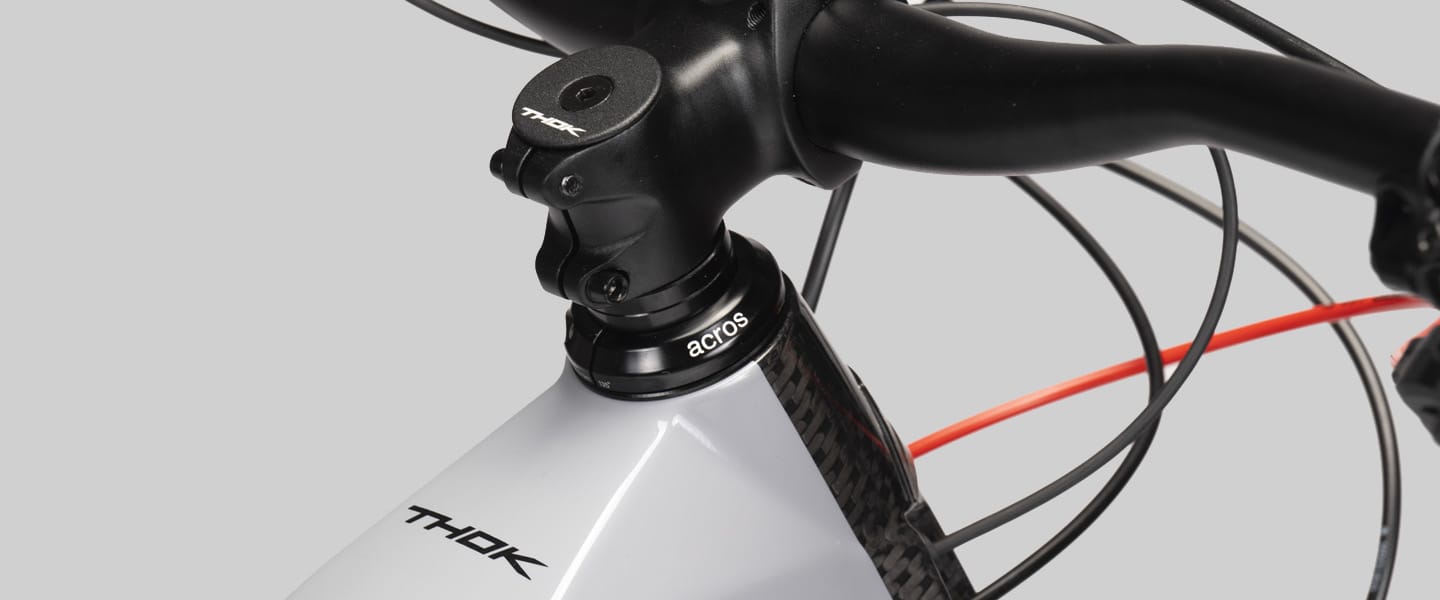

THOK custom – CNC alloy 34,9 mm.
FOX – Float X, 2 Pos Adj, THOK Custom tuned, 210×55.
THOK – Alloy with front clamp oversize 35 mm, ext 50 mm.
ACROSS – BlockLock 135°.
THOK – Alloy 6061 oversize 35 mm DB, rise 20 mm, width 780mm.
THOK – Lock-On grips.
THOK – Fit in hollow Cr.Mo rail.
THOK – dropper post micro height adjustable, remote control (S/125 mm – M/170 mm- L/XL 200 mm).
MAGURA – MT5, 4 piston, MDR-C 203mm rotors.
SHIMANO – XT 12S.
SHIMANO – SLX 12S.
SHIMANO – SLX 12S 10-51T.
SHIMANO – 12S.
FSA 165 mm with chainring 34T.
DT-SWISS – H1900 Alloy, 29″x 30 mm, 15×110.
DT-SWISS – H1900 Alloy, 29″x 30 mm, 12×148, MS freehub body.
SCHWALBE – Albert Gravity Pro 29″ x 2.6 Ultra Soft TLR.
SCHWALBE – Albert Gravity Pro 29″ x 2.6 Soft TLR.
Flat polyethylene pedals.
